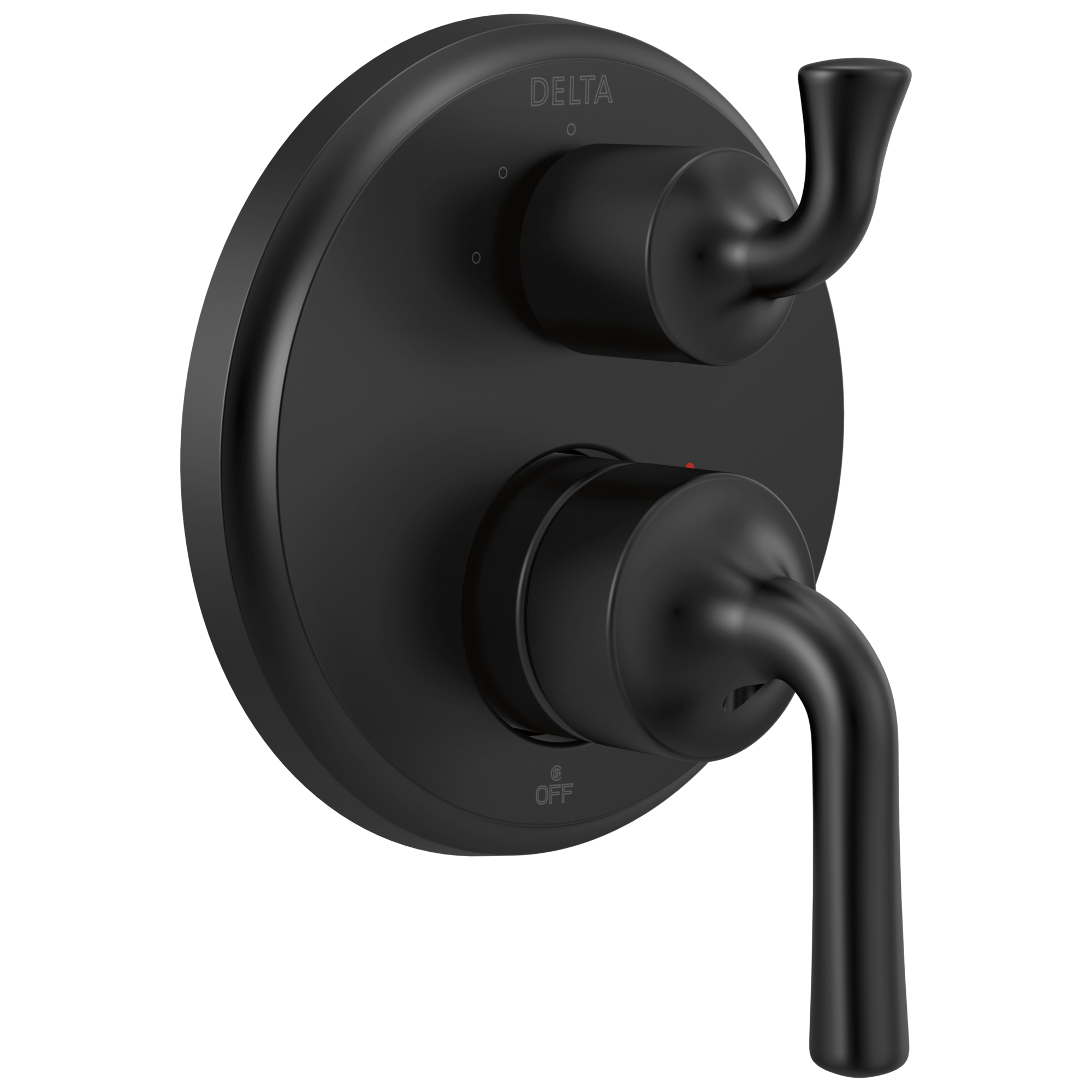

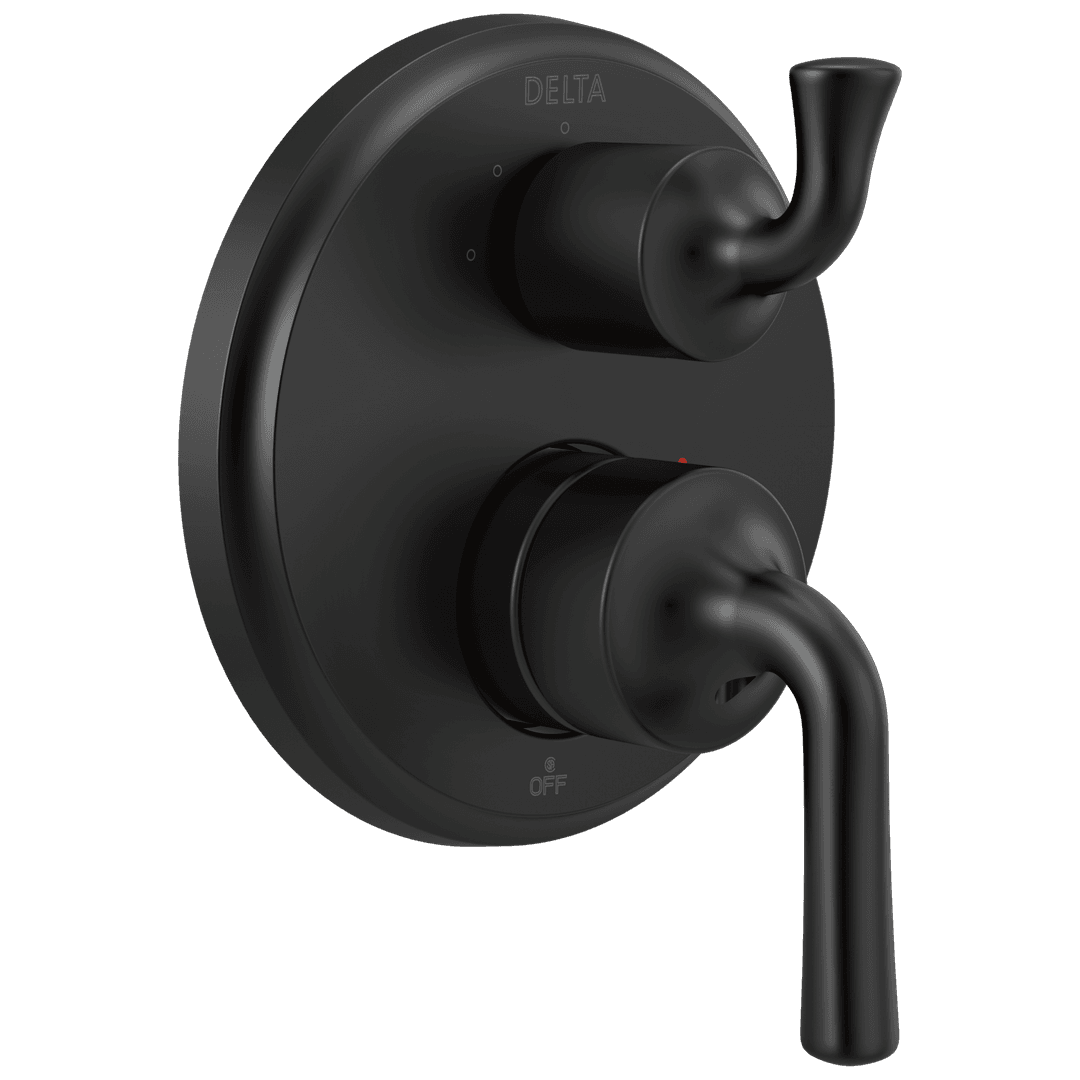

Delta Faucet Kayra™ Two-Handle Monitor 14 Pressure Balance Valve Trim - 3-Setting Integrated Diverter in Matte Black
Item #: T24833-BL
UPC: 034449959452
Free Shipping on LTL freight orders over $99
Overview
The stretched feminine form and unbroken lines of the Kayra™ Bath Collection create a clean, flowing design. Delta® pressure
Features
- Trim kit only, must order MultiChoice® Universal Valve separately to complete the unit
- Recommended rough-in kit R22000
- Three function shower diverter
- 2 individual positions, 1 shared positions
- Top handle controls diverter functions
- Bottom handle controls on / off and adjusts temperature
- Monitor® pressure balance valve keeps water temperature within a safe ±3° F (±1.6° C), helping to protect you from sudden changes in hot or cold water pressure
- Main control utilizes single-function pressure balanced cartridge
- Field adjustable to limit handle rotation into hot water zone
- Bottom handle 120° Maximum rotation
- Red/Blue indicator markings
- Cartridges included
- Standard installation allows up to 1-1/8 in. finished wall thickness
- ADA Compliant
Specifications
Product Specifications
| CEC | Yes |
|---|---|
| Finish | Matte Black |
| Shipping | L:8.75"x W:8.5"x H:4.25" |
| Collection | Kayra™ |
| Product Type | Pressure Balance Trim With Diverter |
| Prop65 Warning | This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Wash hands after installing or removing the product. |
| Prop 65 Chemical | Lead |
| Introduction Date | 2020 |
| Online Product ID | 8391237 |
Dimensions
| Width | 6.63" |
|---|---|
| Height | 6.63" |
| Length | 4.31" |
| Weight | 2.95 lbs. |
Materials
| Material | Zinc |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
Other Documents
Replacement Parts
Genuine Delta Faucet replacement parts compatible with Item #T24833-BL.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Brizo Other Threaded Sleeve | RP90252 | $20.60 | |
 | Delta Faucet CassidyE Trim Sleeve - Integrated Diverter - Chrome | RP84924 | $35.90 | |
 | Delta Faucet CassidyE | Escutcheon | RP84928 | $49.65 | |
| Delta Faucet DorvalE | Escutcheon - Chrome | RP100946 | $164.10 | |
| Delta Faucet DorvalE | Escutcheon - Chrome | RP100945 | $153.10 | |
| Delta Faucet KayraE Diverter Handle, Set Screw and Button - Chrome | RP101547 | $38.35 | |
| Delta Faucet KayraE Handle, Set Screw and Button - Chrome | RP101548 | $44.25 | |
 | Delta Faucet Other Cartridge - 3-Setting Diverter | RP51918 | $238.80 | |
 | Delta Faucet Other Cartridge - 6-Setting Diverter | RP51919 | $238.80 | |
 | Delta Faucet Other Cartridge Assembly - 2-Setting Diverter - Non-Shared | RP71717 | $159.50 | |
 | Delta Faucet Other Cartridge Assembly - 3-Setting Diverter - Non-Shared | RP71718 | $159.50 | |
 | Delta Faucet Other Cartridge Assembly - MultiChoice Universal - 13 / 14 Series | RP46074 | $118.35 | |
 | Delta Faucet Other Extension Kit - MultiChoice Integrated Diverter - 24 Series - Chrome | RP90542 | $168.85 | |
 | Delta Faucet Other Seats & Springs (2 ea) | RP4993 | $10.10 | |
 | Delta Faucet Other Spacer | RP29569 | $4.90 | |
 | Delta Faucet Other Trim Nut - Diverter - Integrated Series - Chrome | RP84932 | $45.70 | |
| Delta Faucet Other Trim Sleeve - Diverter - Lumicoat Chrome | RP84932PCPR | $47.05 | |
| Delta Faucet Stryke Valve Seal - Integrated Div - Other Finishes | RP100386 | $31.45 | |
| — | O-Ring | RP23340 | — | |
| — | Set Screw | RP64871 | — | |
