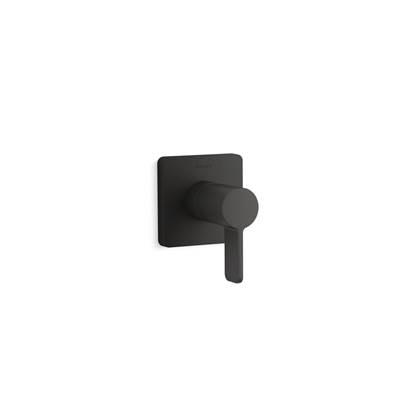

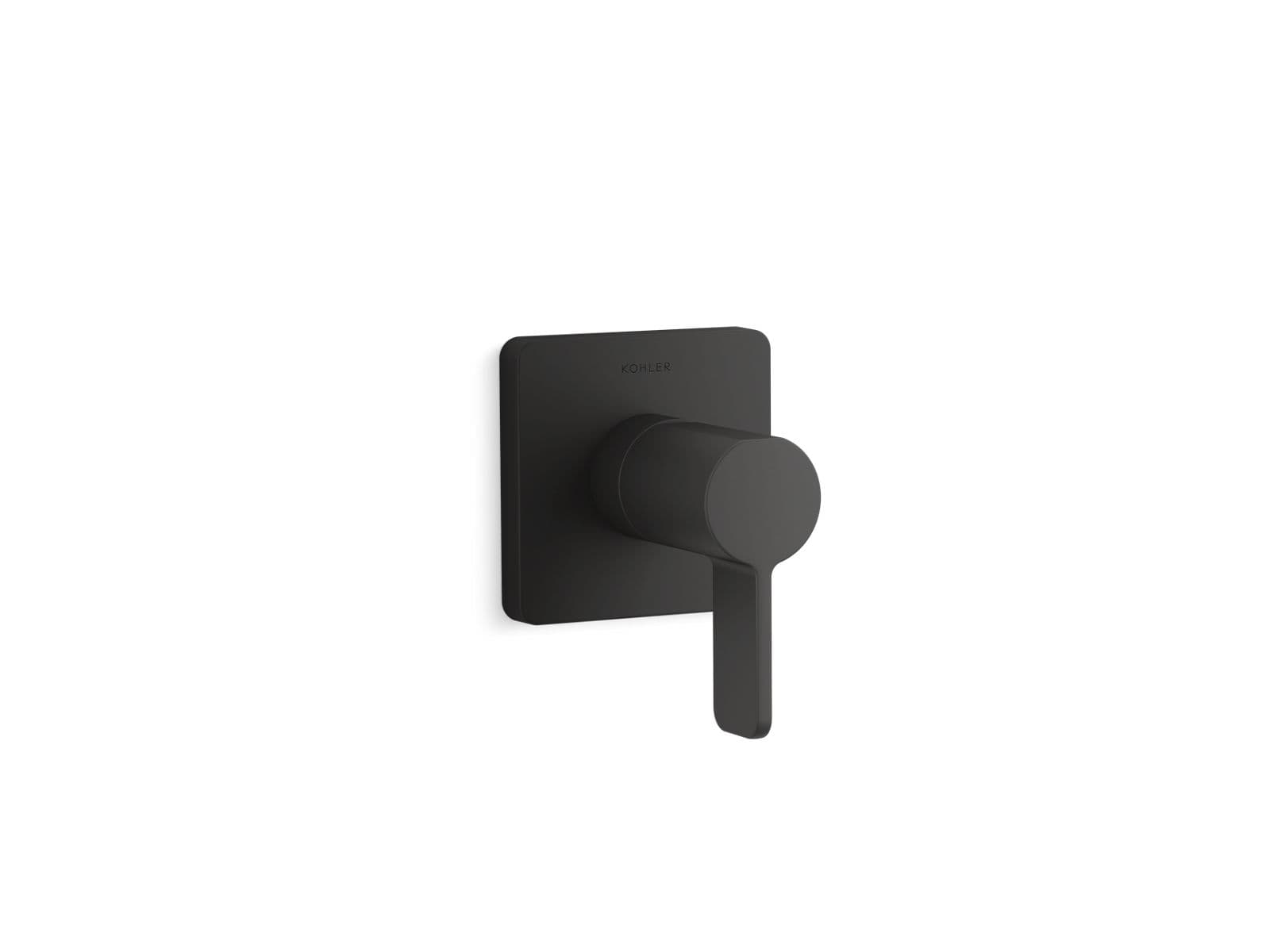

Kohler Parallel Transfer Valve Trim in Matte Black
Item #: T23509-4-BL
UPC: 885612791757
Finish: Matte Black
Offered in 7 colors
Free Shipping on LTL freight orders over $99
Additional items needed for installation
Overview
At Kohler, we believe a shower should transform you. The KOHLER® Parallel collection is the epitome of understated chic — by combining circular shapes within the square design, the balanced versatility of this collection allows it to blend in or stand out depending on your surrounding décor. Elevate your experience with KOHLER.
Parallel® Transfer valve trim
Features
- Single handle controls flow to outlets
- ADA-compliant ergonomic handle
- 120° handle rotation with two-outlet operation
- 360° handle rotation with three-outlet operation
- When used with K-728-K series MasterShower® transfer valves, handle controls flow to two or three outlets individually or any two outlets at a time
- When used with K-737 series MasterShower® diverter valves, handle controls flow to two or three outlets individually (only one outlet at a time)
- Trim only; requires K-728-K two- or three-way transfer valve, or K-737-K two- or three-way diverter valve (sold separately)
- Coordinates with other products in the Parallel collection
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00885612791757 |
| Finish | Matte Black |
| Shipping | L:7.19"x W:4.88"x H:3.38" 2.42 lbs. |
| Collection | Parallel |
| Product Type | Transfer Valve Trim |
| Csa Compliant | Yes |
| Product Style | Contemporary |
| Asme Standards | ASME A112.18.1/CSA B125.1 |
| Product Warranty | KOHLER® Faucet Lifetime Limited Warranty |
| Introduction Date | 7/15/2020 |
| Online Product ID | 8828392 |
Dimensions
| Width | 3.88" |
|---|---|
| Height | 3.88" |
| Length | 4.4" |
| Weight | 2.420 |
Materials
| Material | Zinc |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #T23509-4-BL.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Clip, Retaining | K-1034484 | $2.30 | |
| — | Escutcheon | 1335657 | — | |
 | Kohler Genuine Parts Adapter, Valve Stem-long - Bright Chrome | K-1032872-BC | $8.45 | |
 | Kohler Genuine Parts Adapter, Valve Stem-med - Bright Chrome | K-1032871-BC | $12.95 | |
 | Kohler Genuine Parts Adapter, Valve Stem-std - Bright Chrome | K-1031782-BC | $7.45 | |
 | Kohler Genuine Parts Assembly, Seal, Front Plate | K-1108927 | $9.95 | |
 | Kohler Genuine Parts HUB, Mixer TRIM Housing | K-1024419 | $6.35 | |
| — | Kohler Genuine Parts Handle Assembly, Transfer Valve - Matte Black Matte Black | K-1338719-BL | $192.90 | |
 | Kohler Genuine Parts Screw 8-32 X 2.500, FLAT HEAD | K-1047054 | $2.70 | |
 | Kohler Genuine Parts Screw, #8-32 X 1.750, FLAT HEAD | K-1041322 | $2.70 | |
 | Kohler Genuine Parts Screw, 8-32 X 1.375, Countersunk | K-1013970 | $2.60 | |
 | Spline Adapters | K-GP1074231 | $5.40 | |
