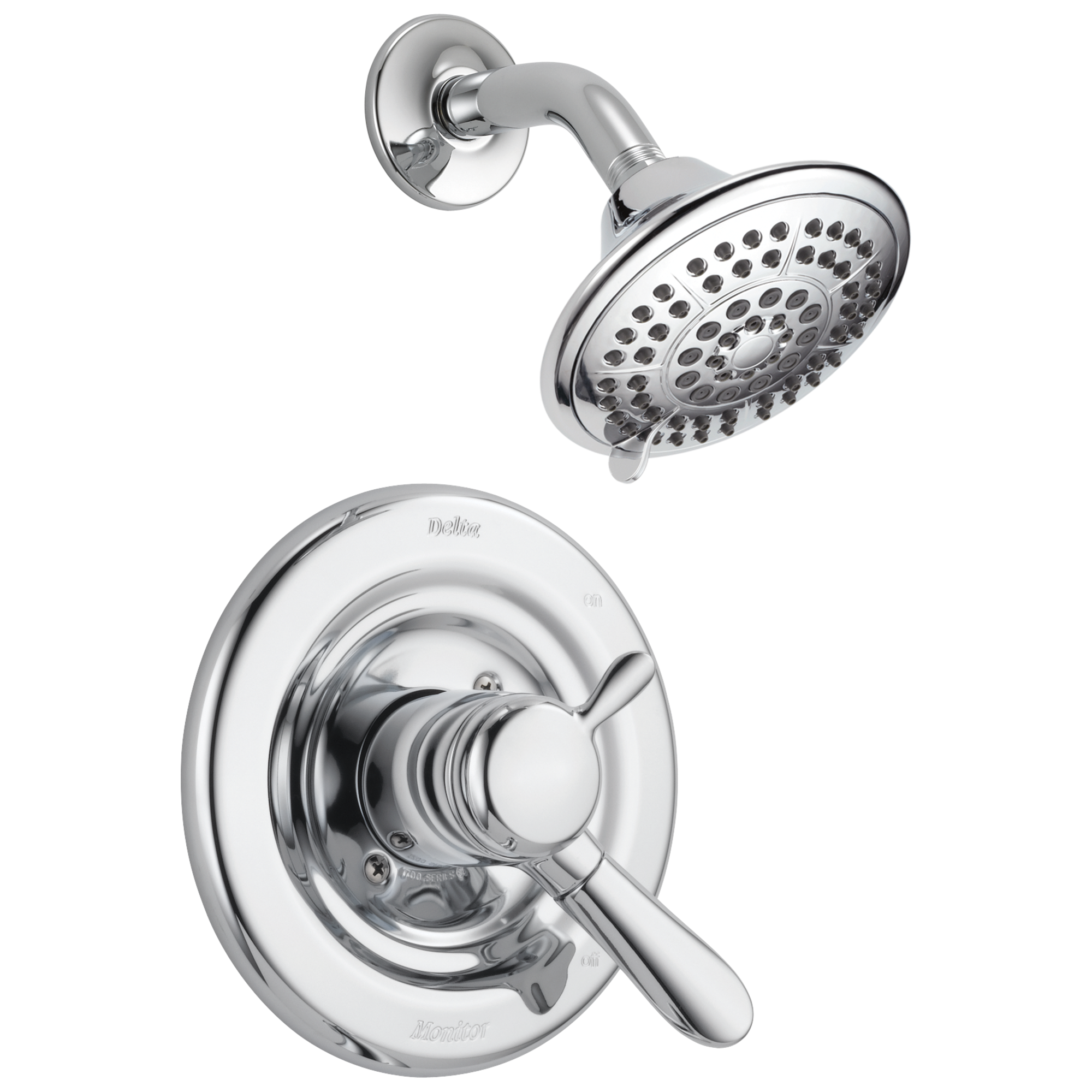

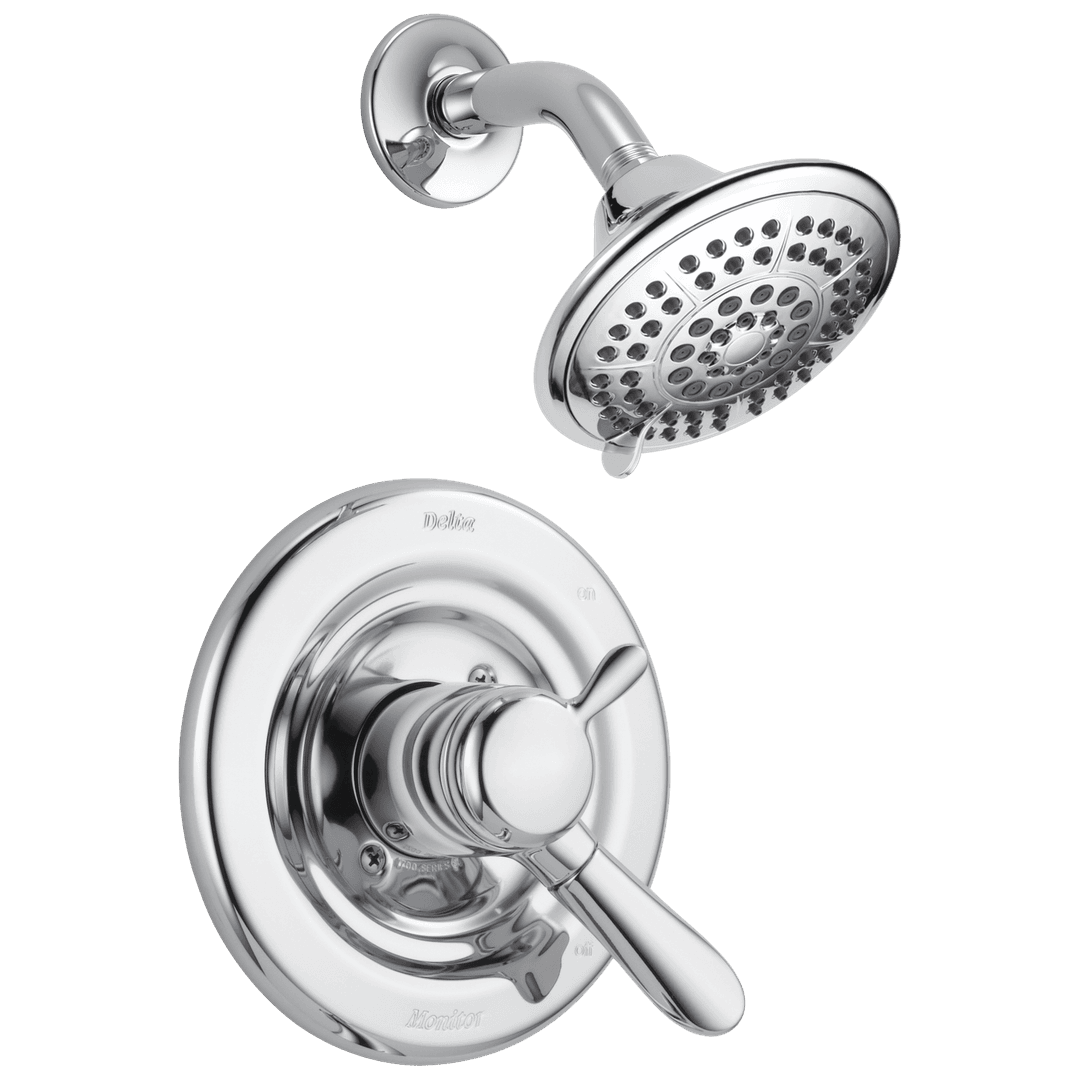

Delta Faucet Lahara® Monitor 17 Series Shower Trim in Chrome
Item #: T17238
UPC: 034449569958
Free Shipping on LTL freight orders over $99
Overview
With separate handles for volume and temperature control, this Delta tub/shower provides a more refined showering experience. Simply set the water at your preferred temperature and turn the shower on or off with the volume control handle
Features
- Control volume and water temperature independently with two separate handles for more refined control of your shower experience
- Monitor pressure balance valve keeps water temperature within a safe +/-3degrees F (+/-1.6degrees C), helping to protect you from sudden changes in hot or cold water pressure
- Spray settings: Pause, Full Body Spray, Full Spray w/Massage, Fast Massage, Soft Drench Spray
- Trim kit only, must order MultiChoice Universal rough-in separately to complete the unit
- Soft, rubber Touch-Clean spray holes allow you to easily wipe away calcium and lime build-up from the spray face of your shower head and hand shower with the touch of a finger
- Single lever handle for ease of control
- Meets standards set by Americans with Disabilities Act (ADA)
- WaterSense labeled shower heads use at least 20% less water than the industry standard without compromising performance
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| Finish | Chrome |
| Handles | 1 |
| Shipping | L:8.5"x W:8.25"x H:4.13" |
| Collection | Lahara® |
| Valve Type | Cartridge |
| Watersense | Yes |
| Handle Type | Lever |
| Product Type | Shower Only Faucet |
| Flow Rate (GPM) | 1.75 gal/min |
| Introduction Date | 2007 |
| Online Product ID | 80338 |
| Default Rough Recommendation | R10000-PX;R10000-UNWS;R10000-IPWS;R10000-UNBX;R10000-UNBXT;R10000-UN;R10000-IP;R10000-PXWS |
Dimensions
| Width | 7.59" |
|---|---|
| Height | 10.09" |
| Length | 8.59" |
| Weight | 2.7 lbs. |
| Ship Width | 7.5900 |
| Ship Height | 10.0900 |
| Ship Length | 8.5900 |
Materials
| Material | Plastic |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
Other Documents
Replacement Parts
Genuine Delta Faucet replacement parts compatible with Item #T17238.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Delta Faucet Lahara Metal Lever Handle Kit - 17 Series - Chrome | RP51306 | $83.10 | |
| — | Delta Faucet Lahara Temperature Knob & Cover - 17 Series - Chrome | RP51307 | $31.35 | |
 | Delta Faucet Lahara Tub Spout - Pull-Up Diverter - Chrome | RP51303 | $108.10 | |
 | Delta Faucet Other Bonnet Nut w/ Valve Seal | RP51503 | $35.10 | |
 | Delta Faucet Other Cartridge Adapter - MultiChoice 17 Series | RP46073 | $24.90 | |
 | Delta Faucet Other Cartridge Assembly - MultiChoice Universal - 17 Series | RP46463 | $154.00 | |
 | Delta Faucet Other O-Ring - Large - All Monitor Series | RP23336 | $7.70 | |
 | Delta Faucet Other Rotational Limit Stop - 17 Series | RP32102 | $7.70 | |
 | Delta Faucet Other Screw - Handle - Monitor 17 Series | RP32105 | $11.55 | |
 | Delta Faucet Other Shower Arm - Chrome | RP6023 | $43.65 | |
 | Delta Faucet Other Trim Sleeve - 17 & 18 Series - Lumicoat Chrome | RP50880PCPR | $36.60 | |
| Delta Faucet Other Trim Sleeve - 17 Series - Chrome | RP50880 | $35.35 | |
 | Delta Faucet Other | Escutcheon - Chrome | RP28795 | $87.35 | |
 | Delta Faucet Other | Escutcheon - Chrome | RP12630 | $18.45 | |
 | Delta Faucet PivotalE | Escutcheon - Chrome | RP196 | $10.10 | |
 | Delta Faucet Shower Arm Flange - Chrome | RP6025 | $23.10 | |
 | Delta Faucet Universal Showering Components 5-Setting Raincan Shower Head - Chrome | RP78575 | $99.90 | |
