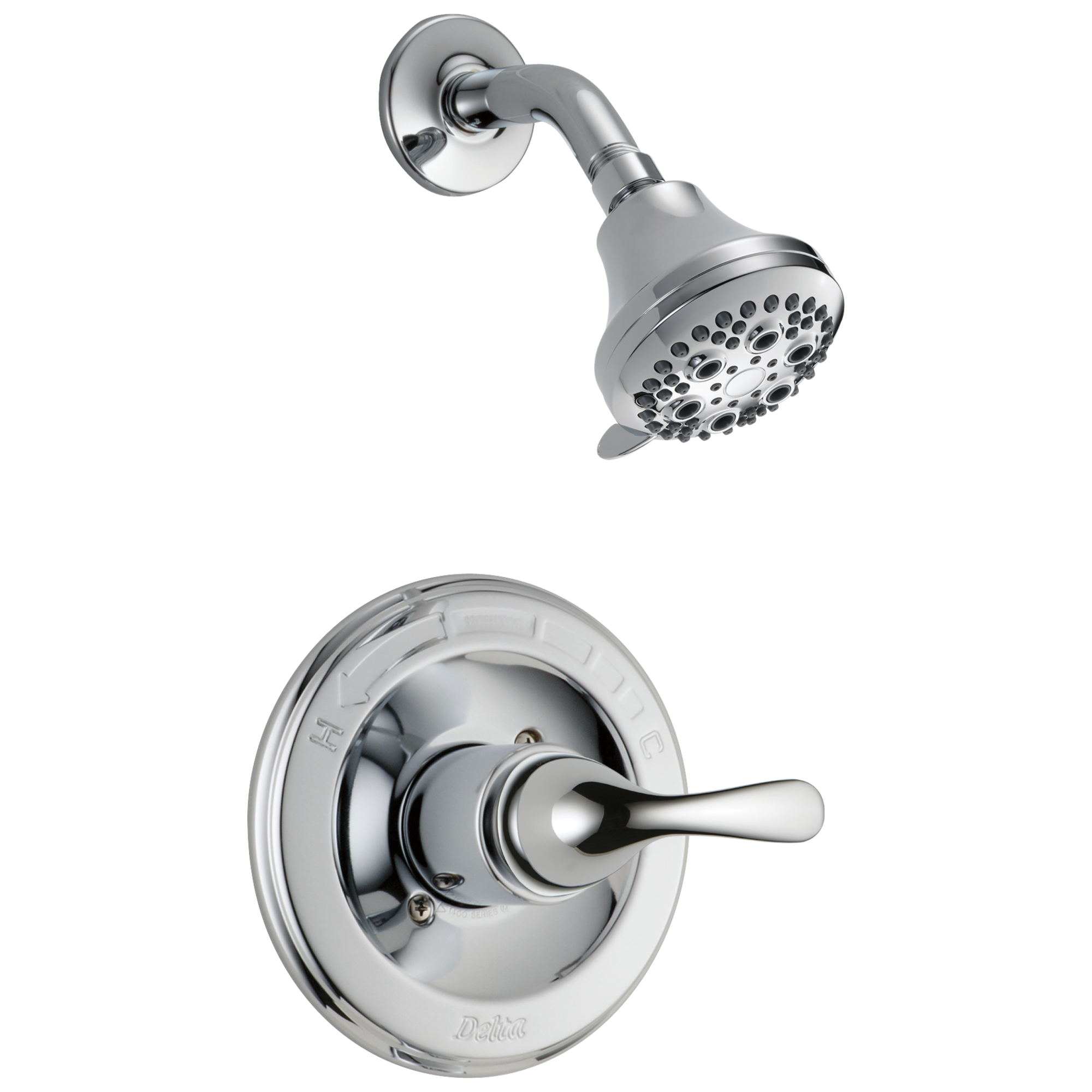

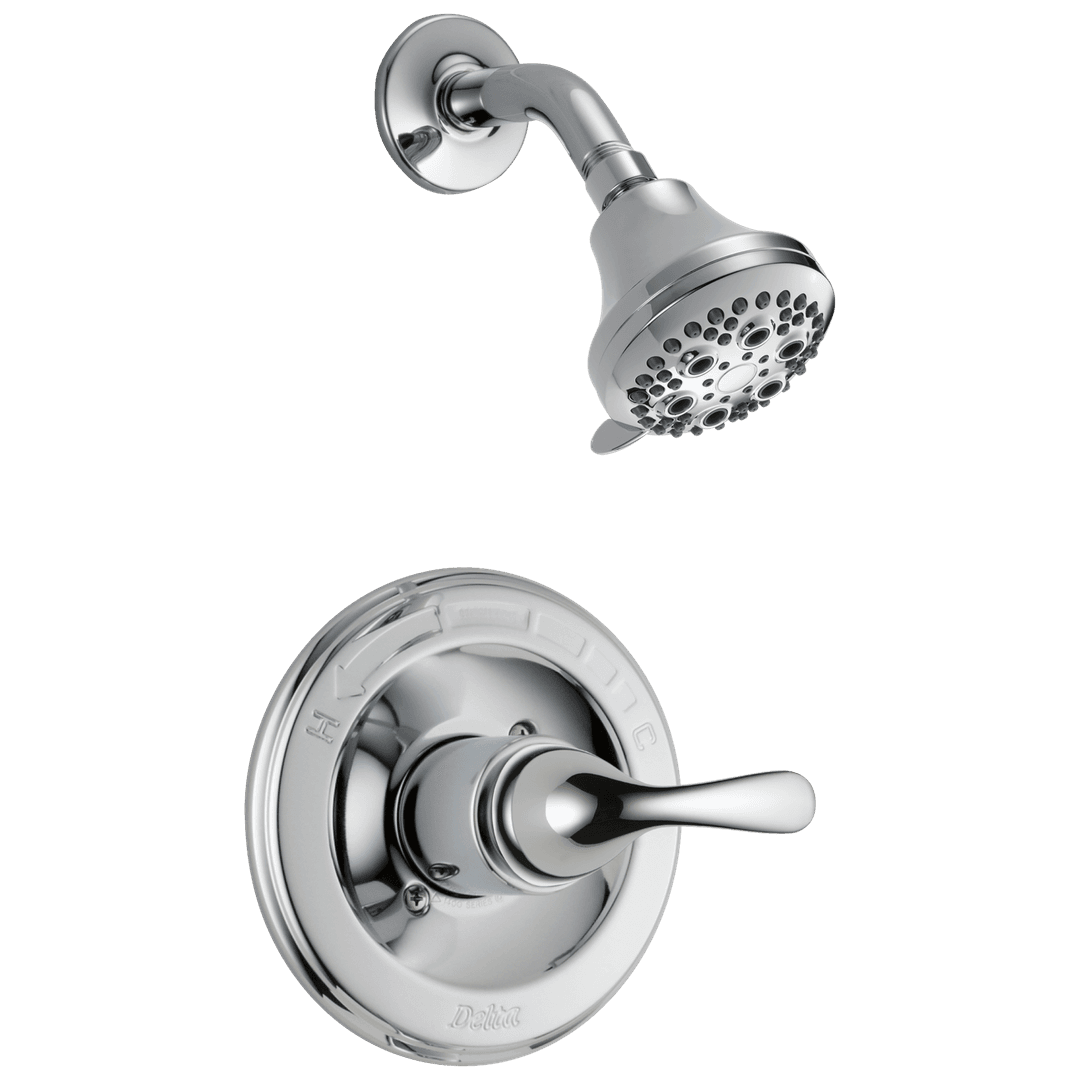

Delta Faucet Classic Monitor 13 Series Shower Trim in Chrome
Item #: T13220
UPC: 034449518468
Free Shipping on LTL freight orders over $99
Overview
Complete the look in your bathroom with a shower from the Classic Bath Collection. Delta® showers with Monitor® pressure
Features
- Spray settings include: Full Body spray, Fast Massage spray, Full Spray with Massage, High-Efficiency spray, and Pause
- Pause feature reduces water to a trickle, giving you space for shaving, lathering and other shower tasks while maintaining your temperature settings
- Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime buildup from the spray face of your shower head with the touch of a finger
- Monitor® pressure balance valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
- Temperature only controlled with metal lever handle
- Trim kit only, must order MultiChoice® Universal valve rough (R10000 series) separately to complete the unit
- Solid brass forged body
- Back-to-back installation capability
- Stem extension kit RP77991 can be ordered separately to allow for an additional 1-3/4 inch wall thickness
- ADA compliant metal lever handle
- WaterSense® labeled shower heads use at least 20% less water than the industry standard without compromising performance
- Backed by Delta Faucet's Lifetime Limited Warranty
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| Finish | Chrome |
| Handles | 1 |
| CALGreen | Yes |
| Shipping | L:8.5"x W:8.25"x H:4.13" |
| Collection | Classic |
| Valve Type | Ceramic Disc |
| Watersense | Yes |
| Handle Type | Lever |
| Product Type | Shower Only Faucet |
| Prop65 Warning | This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Wash hands after installing or removing the product. |
| Flow Rate (GPM) | 1.75 gal/min |
| Prop 65 Chemical | Lead |
| Introduction Date | 2018 |
| Online Product ID | 80126 |
| Default Rough Recommendation | R10000-IPWS;R10000-PX;R10000-PXWS;R10000-UN;R10000-UNWS;R10000-IP |
Dimensions
| Width | 7" |
|---|---|
| Height | 9.5" |
| Length | 7.47" |
| Weight | 2.13 lbs. |
| Ship Width | 7.0000 |
| Ship Height | 9.5000 |
| Ship Length | 7.4700 |
Materials
| Material | Brass |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
Other Documents
Replacement Parts
Genuine Delta Faucet replacement parts compatible with Item #T13220.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | (Plastic/Plastica/Plastic) | RP101818 | — | |
| — | Deep Escutcheon | RP21633 | — | |
 | Delta Faucet Other Bath Waste Assembly - Chrome | RP293 | $253.80 | |
 | Delta Faucet Other Button - Arrow - RP17154 Knob Handle - Other Finishes | RP20542 | $15.80 | |
 | Delta Faucet Other Button - Arrow - RP17154 Knob Handle - Polished Brass | RP20542PB | $16.60 | |
 | Delta Faucet Other Cartridge Assembly - MultiChoice Universal - 13 / 14 Series | RP46074 | $118.35 | |
 | Delta Faucet Other Ceramic Seats & Seals (2) | RP10700 | $25.90 | |
 | Delta Faucet Other Extension Kit - 14 Series | RP77991 | $103.45 | |
 | Delta Faucet Other Handle Screw (Pre 3/1999) | RP6369 | $11.55 | |
 | Delta Faucet Other Metal Lever Handle Kit - 13 / 14 Series - Chrome | RP48717 | $51.60 | |
 | Delta Faucet Other O-Ring - Large - All Monitor Series | RP23336 | $7.70 | |
 | Delta Faucet Other Seats & Springs (2 ea) | RP4993 | $10.10 | |
 | Delta Faucet Other Set Screw | RP152 | $10.45 | |
 | Delta Faucet Other Set Screw | RP26865 | $12.40 | |
 | Delta Faucet Other Shower Arm - Chrome | RP6023 | $43.65 | |
 | Delta Faucet Other Spacer | RP29569 | $4.90 | |
 | Delta Faucet Other Trim Sleeve - Tub & Shower - Chrome | RP50879 | $45.60 | |
 | Delta Faucet Other Tub Spout - Non-Diverter - Chrome | RP36498 | $101.45 | |
 | Delta Faucet Other Tub Spout - Pull-Up Diverter - Chrome | RP19895 | $85.60 | |
 | Delta Faucet Other Tub Spout - Pull-Up Diverter - Chrome | RP5834 | $61.45 | |
 | Delta Faucet Other Tub Spout - Pull-Up Diverter - Chrome | RP41591 | $89.90 | |
 | Delta Faucet Other Tub Spout - Pull-Up Diverter - Chrome | RP19820 | $75.60 | |
 | Delta Faucet Other Tub Spout Adapter - Tri Universal | RP100154 | $35.80 | |
 | Delta Faucet Other | Escutcheon - Chrome | RP12630 | $18.45 | |
 | Delta Faucet Other | Escutcheon | Series 13/14 - Chrome | RP19809 | $77.95 | |
 | Delta Faucet Other | Pull-down - Chrome | RP17453 | $73.55 | |
 | Delta Faucet Other | Series 13/14 | RP14414 | $4.60 | |
 | Delta Faucet PivotalE | Escutcheon - Chrome | RP196 | $10.10 | |
 | Delta Faucet Shower Arm Flange - Chrome | RP6025 | $23.10 | |
 | Delta Faucet Universal Showering Components 5-Setting Raincan Shower Head - Chrome | RP78575 | $99.90 | |
| — | Tub Spout/Non Diverter | RP5833 | — | |
| — | Tub Spout/Pull-Up Diverter | RP101727 | — | |
