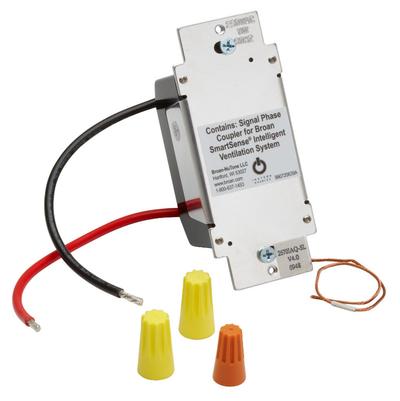

Broan Nutone Smartsense Phase Coupler
Item #: SMSCPLR
UPC: 026715186211
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Controls Exhaust Fan
- Length: 4.13"
- Width: 1.63"
- Height: 1.38"
- Weight: 3.24 lbs.
Features
- Required for LinkLogic on opposite electrical power phases
- Tuned for LinkLogic (INSTEON) signals - blocks other frequencies, like electrical noise
- Bridges LinkLogic signal to opposite electrical phases
- Install near the breaker box to provide the most efficient coupling
- Deep, single-gang electrical box recommended
- Safety tested for use in USA and Canada (ETL No. 3017581)
- For use with Broan SmartSense, Broan Make-up Air Dampers (SMD Series) and select BEST range hoods
Specifications
Product Specifications
| GTIN | 00026715186211 |
|---|---|
| Shipping | L:5.1"x H:2.9" 3.6 lbs. |
| Product Line | Broan |
| Product Type | Controls Exhaust Fan |
| Online Product ID | 525766 |
Dimensions
| Width | 1.63" |
|---|---|
| Height | 1.38" |
| Length | 4.13" |
| Weight | 3.24 lbs. |
| Dimensions | 1.4 x 1.8 x 4.1 |
