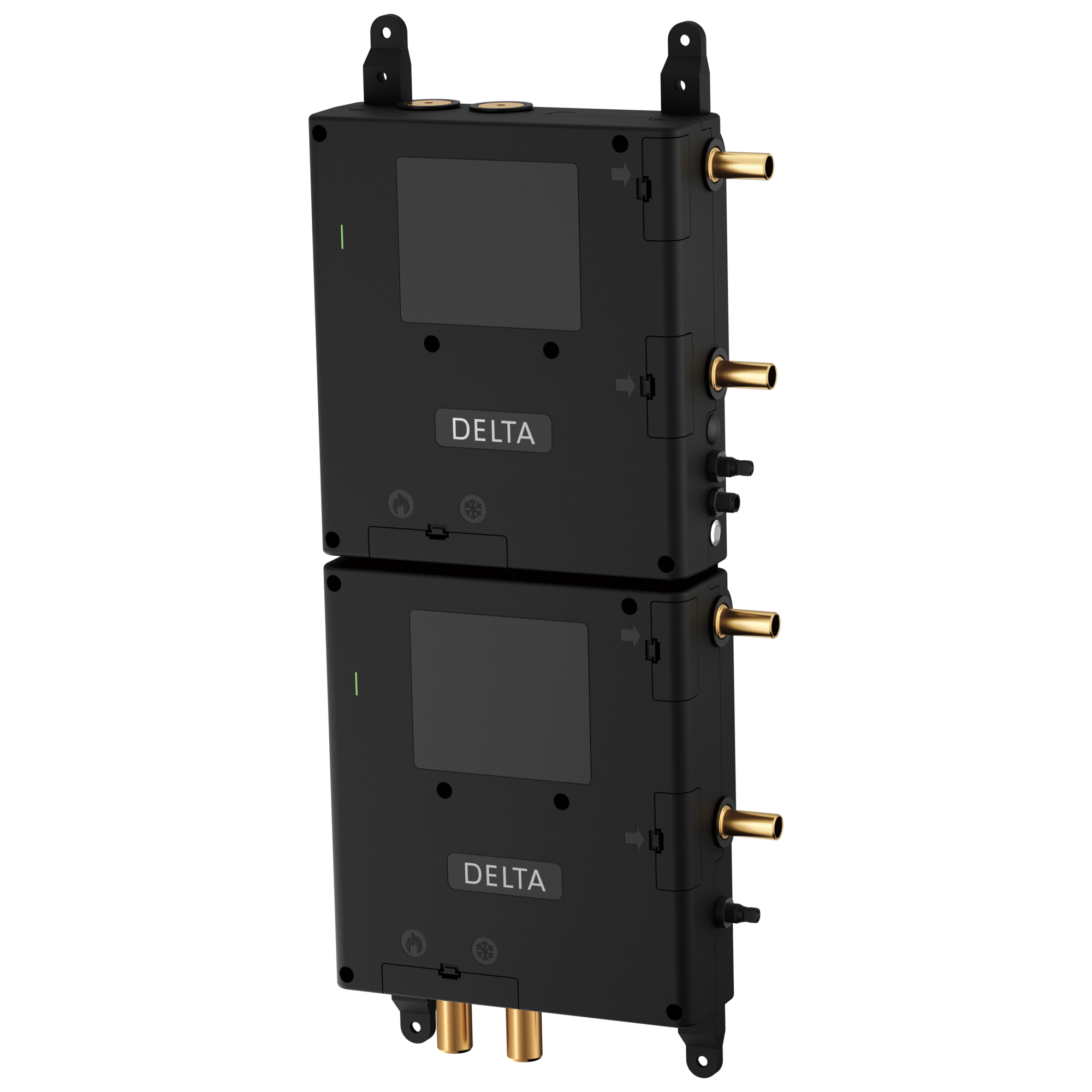

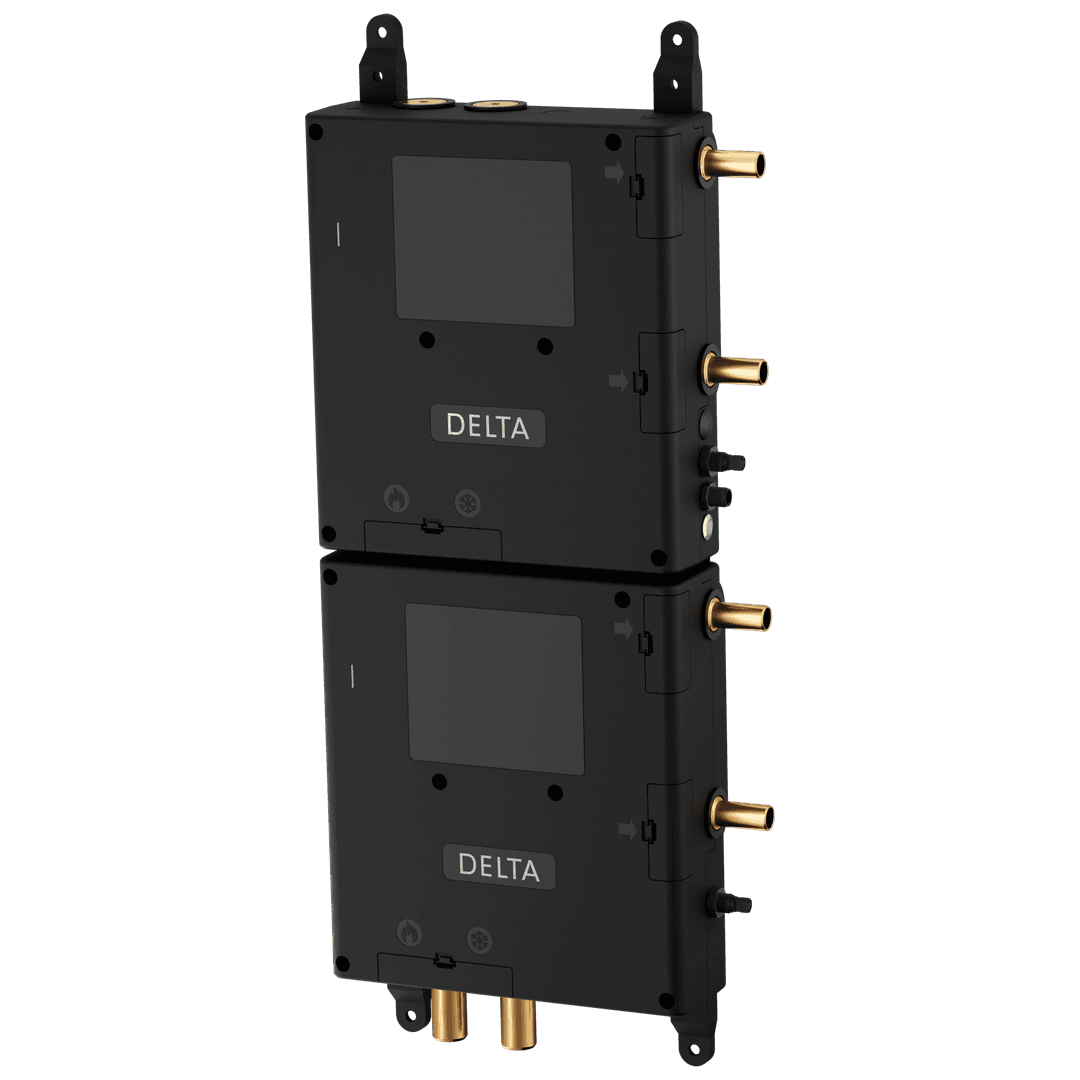

Delta Faucet ShowerSense Digital 4-Port Rough-In Thermostatic Shower Valve
Item #: R54000E
UPC: 195205177630
Free Shipping on LTL freight orders over $99
Overview
A connected world calls for a connected shower.The Delta® ShowerSense™ Digital Shower is the shower as it should be—smart, easy to use, and customizable. In other words, a shower built specifically for you. With customizable presets, precise temperature and flow control, built
Features
- Controller required for operation: Digital shower controller/interface is sold separately and must be purchased to complete the system.
- Includes: 4-Port Digital Shower Rough, 12VDC/60W power adapter with 2.5m wire, 35' interface cable, Interface and cable adapter
- TempAssure® thermostatic valve keeps water temperature within a safe ±3.6° F (±1.7° C), helping to protect you from sudden changes in hot or cold water pressure
- Includes 4-ports
- When started from the DFC@Home™ app, the shower will pause once the desired temperature is reached.
- Waterproof touchscreen interface
- Built-in Wi-Fi with full connectivity to the DFC@Home™ app, and other Wi-Fi-enabled devices.
- Independent temperature and volume control for each outlet port
- Test button for rough-in pressure check
- Diagnostic LED
- Firmware updateable through the user interface when connected to WiFi
- Separate mixing valves independently calibrated for each outlet
- Requires 120V outlet
Specifications
Product Specifications
| Shipping | L:40.25"x W:21.5"x H:5.5" |
|---|---|
| Collection | Universal Showering Components |
| Product Type | Thermostatic Valve |
| Prop65 Warning | This product can expose you to Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Wash hands after installing or removing the product. |
| Online Product ID | 17411882 |
Dimensions
| Width | 10.94" |
|---|---|
| Height | 25.5" |
| Length | 3" |
| Weight | 10 lbs. |
Materials
| Material | ABS - Plastic |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
Other Documents
Replacement Parts
Genuine Delta Faucet replacement parts compatible with Item #R54000E.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | 12v Power Supply | EP104431 | — | |
| — | Brass Inlet w/O-rings/Strainer/U-Clip | RP104244 | — | |
| — | Brass Outlet w/Orings/Uclip | RP104246 | — | |
| — | Check Valve | RP104250 | — | |
| — | Control Connector Assembly | EP104247 | — | |
| — | Control Dongle | EP104249 | — | |
| — | Inlet Cover | RP104251 | — | |
| — | Motor Valve w/O-rings | EP104245 | — | |
| — | Outlet Cover | RP104252 | — | |
| — | Power Connector Assembly | EP104253 | — | |
| — | Test Switch Assembly | EP104248 | — | |
