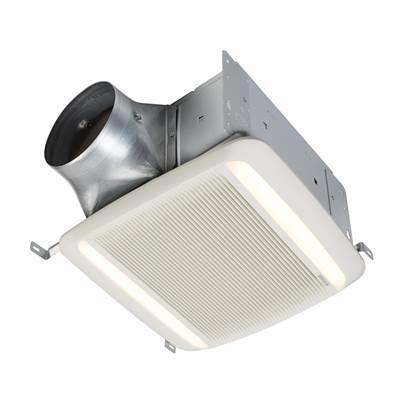

Broan Nutone QT DC™ Series 110-130-150 CFM Ventilation Fan - LED Light - <0.3-0.4-0.7 Sones - Energy Star in White
Item #: QTXE110150DCL
UPC: 026715256815
Free Shipping on LTL freight orders over $99
Overview
- Product Type: With Light Exhaust Fan
- Finish: White
- Collection: QT DC™ Series
- Length: 13.75"
- Width: 14.25"
- Height: 7.63"
- Weight: 11.88 lbs.
Features
- Selectable CFM with speeds of 110-130-150
- Quiet operation of <0.3-0.4-0.7 sones
- DC motor helps maintain static pressure to ensure installed performance
- Motor engineered for continuous operation
- ENERGY STAR Certified
- Hanger bars to position housing anywhere on center joists
- Highly energy efficient integrated LED light that is dimmable
- Rugged, galvanized steel construction to withstand moisture
- UL listed for use over bathtubs and showers when connected to GFCI protected branch circuit
Specifications
Product Specifications
| Sones | <0.3-0.4-0.7 |
|---|---|
| Finish | White |
| Cfm Hvi | 110-130-150 |
| Lighted | Yes |
| Listing | UL |
| Type Ic | Yes |
| Voltage | 120v |
| Includes | Integrated LED module, unique spacer for mounting to engineered ''I'' joists, hanger bars |
| Shipping | L:15.5"x W:11.5"x H:15.75" 13.2 lbs. |
| Duct Size | 6'' |
| Ul Listed | Yes |
| Collection | QT DC™ Series |
| Cul Listed | Yes |
| Duct Shape | Round |
| ENERGY STAR | Yes |
| Ceiling Only | Yes |
| Culus Listed | Yes |
| Frequency Hz | 60 |
| Grille Shape | Rectangle |
| Light Source | LED |
| Product Line | Broan |
| Product Type | Exhaust Vent Cap |
| Amperage Amps | 0.5 |
| Hvi Vertified | Yes |
| Lighting Type | LED |
| Duct Direction | Horizontal/Vertical |
| Light Built In | Yes |
| Light Dimmable | Yes |
| Lights Included | Yes |
| Hardware Included | Yes |
| Installation Type | Ceiling |
| Online Product ID | 9323690 |
| Lumens Light Source | 1179 |
| Bulb Recommended Type | Integrated LED Module |
| Certification File No | E17814 |
| Energy Star Certified | Yes |
| Minimum Order Quantity | 1 |
| Color Temperature Kelvin | 3000 |
| Lighting Modules Number Of | 1 |
| Radiation Damper Available | Yes |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 105 Plus |
| Contain Electronic Equipment | Yes |
| Minimum Construction Space Required | 2'' x 8'' |
Dimensions
| Width | 14.25" |
|---|---|
| Height | 7.63" |
| Length | 13.75" |
| Weight | 11.88 lbs. |
| Grille Width In | 14.25 |
| Housing Width In | 11.38 |
| Housing Height In | 7.63 |
| Housing Dimensions In | 10-1/2'' x 11-3/8'' x 7-5/8'' |
| Grille Length Depth In | 13.75 |
| Housing Length Depth In | 10.5 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
