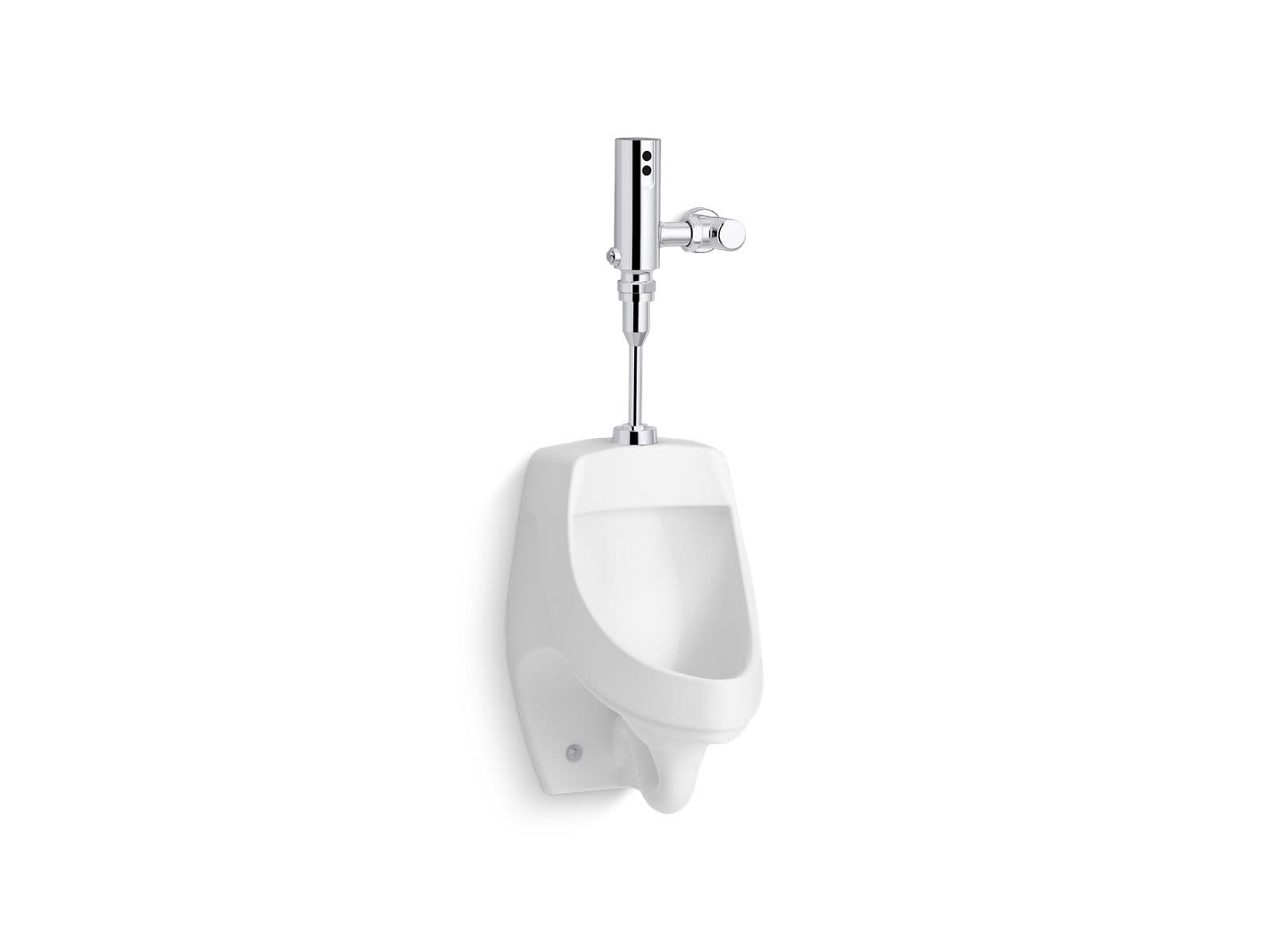

Kohler Dexter® Antimicrobial Washout Urinal - Top Spud - HES-Powered - 0.5 GPF
Item #: PR5016-T2HS-NA
UPC: 195711007551
Free Shipping on LTL freight orders over $99
Overview
Dexter™ Antimicrobial urinal with Mach® Tripoint® touchless 0.5 gpf HES-powered flushometer
Antimicrobial urinal with Mach® Tripoint® touchless 0.5 gpf HES-powered flushometer
Features
- Fixture and touchless flushometer combination is engineered for optimal performance
- Washout urinal
- Antimicrobial finish inhibits the growth of mold-, mildew-, stain-, and odor-causing bacteria on the fixture surface. This product does not protect users against bacteria, viruses, or other disease organisms. Always clean and wash this product thoroughly before and after each use
- Includes anti-backsplash wall
- 0.5 gpf (1.9 lpf)
- 3/4" (19 mm) top spud
- Flush valve activation distance is factory-set
- No external flush volume adjustment ensures water conservation
- 24-hour automatic sentinel flush keeps trapway fresh
- Mechanical override enables flushometer to be used manually even during a power outage
- Chloramine and chlorine resistance on all rubber components exposed to waterway
- Locking stop cap provides protection against vandalism
- 125-micron filter protects internal components
- High back pressure vacuum breaker
- Powered by a 30 year/875,000 cycle hybrid energy cell, based on 72 uses per day
- For this combination, order K-5016-ETSS urinal and K-10UH00G20 flushometer
- Patented piston technology for superior flush volume accuracy
- This product can help a building earn Water Efficiency points in LEED® Green Building Rating System
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00195711007551 |
| Finish | Not Applicable |
| CALGreen | Yes |
| Shipping | L:0"x W:0"x H:0" 0.2 lbs. |
| Collection | Dexter |
| Watersense | Yes |
| Product Type | Urinal |
| Product Style | Transitional |
| Asme Standards | ASME A112.18.1/CSA B125.1;ASME A112.19.2/CSA B45.1 |
| Product Warranty | KOHLER® One-Year Limited Warranty |
| Introduction Date | 12/2/2021 |
| Online Product ID | 12980742 |
Dimensions
| Width | 13.63" |
|---|---|
| Height | 20.38" |
| Length | 14.5" |
| Weight | 0.200 |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #PR5016-T2HS-NA.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Escutcheon | 1287159 | — | |
| — | Escutcheon | 1287164 | — | |
 | Gasket Set, 1-1/2” | K-1388298 | $2.30 | |
 | Gasket Set, 1-1/4” | K-1388297 | $2.30 | |
 | Gasket Set, 3/4” | K-1388296 | $2.30 | |
 | Kohler Genuine Parts Adapter, 1 NPT X 1 1/8 | K-1287276 | $6.55 | |
 | Kohler Genuine Parts Adapter, 3/4 NPT X 1 1/8 | K-1287272 | $5.85 | |
 | Kohler Genuine Parts CAP Assy, STOP Valve - Polished Chrome | K-1388299-CP | $10.90 | |
 | Kohler Genuine Parts Control STOP Cover 3/4 - Polished Chrome | K-1204287-CP | $19.40 | |
 | Kohler Genuine Parts Escutcheon - Vibrant Brushed Moderne Brass Matte Black | K-1287168-BL | $20.85 | |
 | Kohler Genuine Parts KIT, Vacuum Breaker | K-1299067 | $11.20 | |
 | Kohler Genuine Parts NUT, 1-1/2 NPSM SPUD Coupling - Vibrant Brushed Moderne Brass Matte Black | K-1287166-BL | $20.05 | |
 | Kohler Genuine Parts NUT, 3/4 NPSM SPUD Coupling - Polished Chrome | K-1287156-CP | $12.85 | |
 | Kohler Genuine Parts SPUD Coupling NUT - Polished Chrome | K-1287161-CP | $23.75 | |
 | Kohler Genuine Parts Screw, Set-m5 X 0.8 X 6MM | K-1193626 | $2.55 | |
 | Kohler Genuine Parts Sleeve - Polished Chrome | K-1287273-CP | $22.70 | |
 | Kohler Genuine Parts Sleeve - Vibrant Brushed Moderne Brass Matte Black | K-1287277-BL | $37.80 | |
 | Kohler Genuine Parts TAIL Piece Assembly, 1-1/2 - Vibrant Brushed Moderne Brass Matte Black | K-1287373-BL | $93.95 | |
 | Kohler Genuine Parts TAIL Piece Assembly, 3/4 - Vibrant Brushed Moderne Brass Matte Black | K-1287369-BL | $93.00 | |
 | Kohler Genuine Parts Tailpiece Assembly, 1-1/4- - Polished Chrome | K-1287371-CP | $74.50 | |
 | Kohler Genuine Parts WALL Escutcheon - Polished Chrome | K-1287274-CP | $11.45 | |
 | Kohler Genuine Parts WALL Escutcheon - Vibrant Brushed Moderne Brass Matte Black | K-1287278-BL | $14.15 | |
| — | — | 1204286 | — | |
