Kohler Bardon® Washout Urinal - Top Spud - HES-Powered - 0.5 GPF
Item #: PR4991-T2H-NA
UPC: 195711007490
Free Shipping on LTL freight orders over $99
Overview
The newly redesigned Bardon high-efficiency urinal provides flexible flushing options along with a bold new contemporary look. The Bardon operates in the range from 0.125 to 1.0 gpf. When paired with a 0.5 gpf Mach Tripoint touchless flushometer, this urinal is ideal for water conservation installations, and qualifies as a High-Efficiency Urinal (HEU) that can help a building earn Water Efficiency points in the LEED® Green Building Rating System.

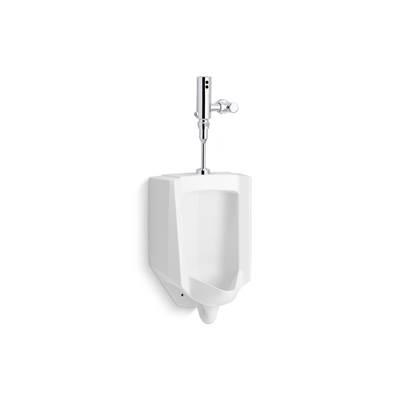

Bardon™ High-efficiency urinal with Mach® Tripoint® touchless 0.5 gpf HES-powered flushometer
Features
- Fixture and touchless flushometer combination is engineered for optimal performance
- Washout urinal
- Includes anti-backsplash wall
- 0.5 gpf (1.9 lpf)
- 3/4" (19 mm) top spud
- Flush valve activation distance is factory-set
- No external flush volume adjustment ensures water conservation
- 24-hour automatic sentinel flush keeps trapway fresh
- Mechanical override enables flushometer to be used manually even during a power outage
- Chloramine and chlorine resistance on all rubber components exposed to waterway
- Locking stop cap provides protection against vandalism
- 125-micron filter protects internal components
- High back pressure vacuum breaker
- Powered by a 30 year/875,000 cycle hybrid energy cell, based on 72 uses per day
- For this combination, order K-4991-ET urinal and K-10UH00G20 flushometer
- Patented piston technology for superior flush volume accuracy
- This product can help a building earn Water Efficiency points in LEED® Green Building Rating System
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| GTIN | 00195711007490 |
| Finish | Not Applicable |
| Shipping | L:0"x W:0"x H:0" 0.2 lbs. |
| Collection | Bardon |
| Watersense | Yes |
| Product Type | Urinal |
| Csa Compliant | Yes |
| Product Style | Transitional |
| Asme Standards | ASME A112.18.1/CSA B125.1;ASME A112.19.2/CSA B45.1 |
| Product Warranty | KOHLER® One-Year Limited Warranty |
| Introduction Date | 12/2/2021 |
| Online Product ID | 12980738 |
Dimensions
| Width | 18.49" |
|---|---|
| Height | 26.81" |
| Length | 14.21" |
| Weight | 0.200 |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #PR4991-T2H-NA.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Escutcheon | 1287159 | — | |
| — | Escutcheon | 1287164 | — | |
 | Gasket Set, 1-1/2” | K-1388298 | $2.30 | |
 | Gasket Set, 1-1/4” | K-1388297 | $2.30 | |
 | Gasket Set, 3/4” | K-1388296 | $2.30 | |
 | Kohler Genuine Parts Adapter, 1 NPT X 1 1/8 | K-1287276 | $6.55 | |
 | Kohler Genuine Parts Adapter, 3/4 NPT X 1 1/8 | K-1287272 | $5.85 | |
 | Kohler Genuine Parts CAP Assy, STOP Valve - Polished Chrome | K-1388299-CP | $10.90 | |
 | Kohler Genuine Parts Control STOP Cover 3/4 - Polished Chrome | K-1204287-CP | $19.40 | |
 | Kohler Genuine Parts Escutcheon - Vibrant Brushed Moderne Brass Matte Black | K-1287168-BL | $20.85 | |
 | Kohler Genuine Parts KIT, Vacuum Breaker | K-1299067 | $11.20 | |
 | Kohler Genuine Parts NUT, 1-1/2 NPSM SPUD Coupling - Vibrant Brushed Moderne Brass Matte Black | K-1287166-BL | $20.05 | |
 | Kohler Genuine Parts NUT, 3/4 NPSM SPUD Coupling - Polished Chrome | K-1287156-CP | $12.85 | |
 | Kohler Genuine Parts SPUD Coupling NUT - Polished Chrome | K-1287161-CP | $23.75 | |
 | Kohler Genuine Parts Screw, Set-m5 X 0.8 X 6MM | K-1193626 | $2.55 | |
 | Kohler Genuine Parts Sleeve - Polished Chrome | K-1287273-CP | $22.70 | |
 | Kohler Genuine Parts Sleeve - Vibrant Brushed Moderne Brass Matte Black | K-1287277-BL | $37.80 | |
 | Kohler Genuine Parts TAIL Piece Assembly, 1-1/2 - Vibrant Brushed Moderne Brass Matte Black | K-1287373-BL | $93.95 | |
 | Kohler Genuine Parts TAIL Piece Assembly, 3/4 - Vibrant Brushed Moderne Brass Matte Black | K-1287369-BL | $93.00 | |
 | Kohler Genuine Parts Tailpiece Assembly, 1-1/4- - Polished Chrome | K-1287371-CP | $74.50 | |
 | Kohler Genuine Parts WALL Escutcheon - Polished Chrome | K-1287274-CP | $11.45 | |
 | Kohler Genuine Parts WALL Escutcheon - Vibrant Brushed Moderne Brass Matte Black | K-1287278-BL | $14.15 | |
| — | — | 1204286 | — | |
