Description

Features

• Project pack: Supplied 12 per case

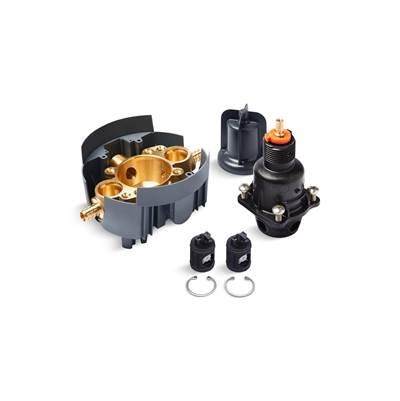

• Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
• 1/2'' PEX Crimp (F1807 style) inlets, with stops
• 1/2'' Universal NPT & direct sweat outlets
• Service stops include integral check valves
• 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
• Single lever design cycles from off through cold to hot
• Antiscald protection
• One-piece cartridge design simplifies installation and maintenance
• Adjustable high-temperature limit stop to control maximum water temperature
• Requires valve trim to complete installation (sold separately)
• Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations

Specifications
