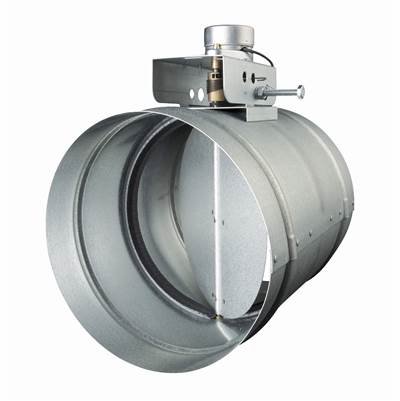

Broan Nutone 8N Motorized Make-Up Air Slave Damper in Galvanized
Item #: MD8S
UPC: 026715204199
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Range Hood Component
- Material: Steel
- Finish: Galvanized
- Length: 8.00"
- Width: 10.00"
- Height: 11.00"
- Weight: 3.69 lbs.
Features
- Slave dampers are interlocked to the main automatic make-up air damper and open in unison for synchronized operation. They close, along with the main damper, as soon as the range hood is powered off. Slave dampers can be “ganged” together to provide a cost effective means to provide for higher volumes of make-up air
- Interlocked make-up air damper systems meet IRC Code requirements for make-up air with range hoods over 400 CFM
- Fresh air wall caps are required for use with Make-Up Air Dampers
Specifications
Product Specifications
| Finish | Galvanized |
|---|---|
| Diameter | 8" |
| Shipping | L:8"x W:10"x H:11" 3.69 lbs. |
| Product Line | Broan |
| Product Type | Range Hood Component |
| Online Product ID | 525373 |
| Minimum Order Quantity | 1 |
Dimensions
| Width | 10.00" |
|---|---|
| Height | 11.00" |
| Length | 8.00" |
| Weight | 3.69 lbs. |
| Dimensions | 10 x 8 x 8 |
| Ship Width | 8.8000 |
| Ship Height | 11.5000 |
| Ship Length | 10.2000 |
| Ship Weight | 4.1000 |
Materials
| Material | Steel |
|---|
