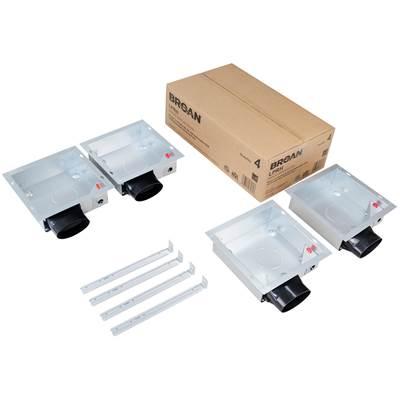

Broan Nutone LoProfile DC Series Bathroom Exhaust Fan - 50/80/100 CFM in White
Item #: LPRH
UPC: 026715270613
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Fan Only Exhaust Fan
- Finish: White
- Collection: LoProfile™ DC Series
- Length: 1.25"
- Width: 1.25"
- Height: 3.38"
- Weight: 40.68 lbs.
Features
- Selectable CFM and Continuous Run: speeds of 50-80-100 for effective ventilation and built-in continuous run technology to remove moisture and reduce the risk of mold or mildew in most full baths
- TRUE CFM: Installed exhaust fan will not lose CFM performance even with complicated ducting, unlike the competition.
- ENERGY STAR Certified and Meets ASHRAE 62.2
- 4'' oval duct connection for installation flexibility, allows for ceiling or wall mounting
- Housing and finish packs sold separately
- Adjustable low CFM setting allows precise adjustment to prevent over-ventilating and maximize energy efficiency
- Adjustable time delay sets how long fan will run on high speed before returning to a continuous lower speed
- ETL listed for use over bathtubs and showers when connected to GFCI protected branch circuit (ceiling installation only)
- Powerful enough for rooms up to 90 sq. ft.
- 4'' oval duct connection for installation flexibility, allows for ceiling or wall mounting . Optional 4'' oval to 3'' round duct adapter sold separately (LPB3)
Specifications
Product Specifications
| Sones | 0.4-0.9-1.2 |
|---|---|
| Finish | White |
| Cfm Hvi | 50-80-100 |
| Voltage | 120v |
| Wattage | 11 |
| Includes | Duct connector, mounting brackets |
| Shipping | L:25.4"x W:15.3"x H:8.5" 11.3 lbs. |
| Warranty | 1 Year |
| Duct Size | 4'' |
| Collection | LoProfile™ DC Series |
| Duct Shape | Oval |
| Etl Listed | Yes |
| Cetl Listed | Yes |
| ENERGY STAR | Yes |
| Frequency Hz | 60 |
| Grille Shape | Rectangle |
| Product Line | Broan |
| Product Type | Fan Only Exhaust Fan |
| Project Pack | Yes |
| Amperage Amps | 0.23 |
| Hvi Vertified | Yes |
| Duct Direction | Horizontal/Vertical |
| Motor Speed Rpm | 920 |
| Hardware Included | Yes |
| Installation Type | Ceiling;Wall |
| Online Product ID | 13738495 |
| Title 24 Qualified | Yes |
| Energy Star Certified | Yes |
| Minimum Order Quantity | 4 |
| Recommended Room Size Sq Ft | 90 |
| Minimum Construction Space Required | 2'' x 4'' |
Dimensions
| Width | 1.25" |
|---|---|
| Height | 3.38" |
| Length | 1.25" |
| Weight | 40.68 lbs. |
| Housing Width In | 10.25 |
| Housing Height In | 3.38 |
| Housing Dimensions In | 10.25'' x 10.25'' x 3.375'' |
| Ceiling Cutout Width In | 10.25 |
| Housing Length Depth In | 10.25 |
| Ceiling Cutout Length In | 10.25 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
