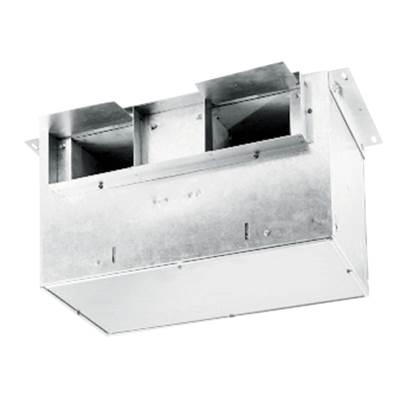

Broan Nutone LOSONE SELECT™ Ventilation Fan - 519 CFM - 3.4 Sones in White
Item #: L500L
UPC: 026715124657
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Exhaust Fan
- Finish: White
- Collection: LOSONE SELECT™ Series
- Length: 12.25"
- Width: 21.5"
- Height: 11.75"
- Weight: 29.79 lbs.
Features
- 519 CFM, Whole home or Commercial Ventilation
- 3.4 Audible Sones for privacy while using your bathroom
- Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
- Duct horizontally, vertically or in-line with separate adapter
- Quiet automatic backdraft dampers
- Rugged galvanized steel housing design
- AMCA licensed for air and sound performance
- cUL and UL Listed
Specifications
Product Specifications
| Sones | 3.4 |
|---|---|
| Blades | Polymeric |
| Finish | White |
| Airflow | 526 |
| Cfm Hvi | 519 |
| Voltage | 120v |
| Wattage | 232 |
| Includes | No Additional Items Included |
| Shipping | L:25.5"x W:16.5"x H:15" 33.1 lbs. |
| Ul Listed | Yes |
| Collection | LOSONE SELECT™ Series |
| Cul Listed | Yes |
| Duct Shape | Rectangular |
| Culus Listed | Yes |
| Frequency Hz | 60 |
| Product Line | Broan |
| Product Type | Exhaust Fan |
| Amperage Amps | 2.2 |
| Duct Direction | Horizontal/Vertical |
| Motor Speed Rpm | 890 |
| Hardware Included | Yes |
| Installation Type | Ceiling;Wall |
| Online Product ID | 525300 |
| Amca Certification | Yes |
| Certification File No | E17814 |
| Minimum Order Quantity | 1 |
| For Commercial Applications | Yes |
| Product Switch Control Type | Wall Control |
| Contain Electronic Equipment | Yes |
| Ceiling Fan Amps At High Speed | 2.2 |
Dimensions
| Width | 21.5" |
|---|---|
| Height | 11.75" |
| Length | 12.25" |
| Weight | 29.79 lbs. |
| Dimensions | 13.75 x 12.25 x 11.75 |
| Ship Width | 16.5000 |
| Ship Height | 15.0000 |
| Ship Length | 25.4000 |
| Ship Weight | 33.1000 |
| Housing Width In | 21.5 |
| Housing Height In | 11.75 |
| Housing Dimensions In | 12-1/4'' x 21-1/2'' x 11-3/4'' |
| Housing Length Depth In | 12.25 |
| Duct Width Rectangular In | 18.5 |
| Duct Height Rectangular In | 4.5 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
