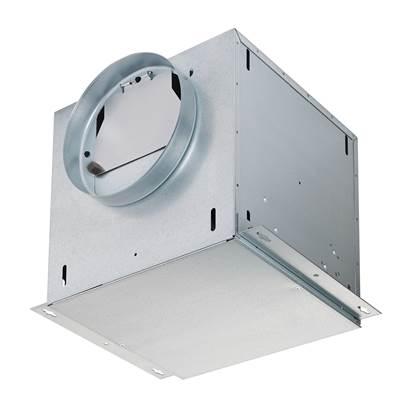

Broan Nutone Losone L200EL in White
Item #: L200EL
UPC: 026715269761
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Ventilation System
- Finish: White
- Length: 12.25"
- Width: 12.25"
- Height: 11.75"
- Weight: 23.9 lbs.
Features
- 200 CFM InLine commercial ventilation fan
- Standard 8'' round ducting for all ENERGY STAR certified models
- ENERGY STAR certified
- AMCA and HVI air tested
- Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)
- Model 80L Variable speed control adjusts blower speed and sound level (available separately)
- cULus Listed for safety and protection
Specifications
Product Specifications
| Finish | White |
|---|---|
| Cfm Hvi | 200 |
| Type Ic | Yes |
| Voltage | 120v |
| Wattage | 52 |
| Includes | Mounting Brackets;backdraft damper |
| Shipping | L:15.96"x W:15.96"x H:15" 19.5 lbs. |
| Warranty | 1 Year |
| Duct Size | 8'' |
| Ul Listed | Yes |
| Cul Listed | Yes |
| Duct Shape | Round |
| ENERGY STAR | Yes |
| Culus Listed | Yes |
| Frequency Hz | 50 |
| Product Line | Broan |
| Product Type | Ventilation System |
| Amperage Amps | 0.5 |
| Hvi Vertified | Yes |
| Duct Direction | Horizontal |
| Air Flow Method | Centrifugal Blower |
| Motor Speed Rpm | 1150 |
| Installation Type | Ceiling;Wall |
| Online Product ID | 13738487 |
| Amca Certification | Yes |
| Rohs Certification | Yes |
| Title 24 Qualified | Yes |
| Certification File No | E17814 |
| Energy Star Certified | Yes |
| Minimum Order Quantity | 1 |
| For Commercial Applications | Yes |
Dimensions
| Width | 12.25" |
|---|---|
| Height | 11.75" |
| Length | 12.25" |
| Weight | 23.9 lbs. |
| Housing Width In | 12.25 |
| Housing Height In | 11.75 |
| Housing Dimensions In | 12.25'' x 12.25'' x 11.75'' |
| Housing Length Depth In | 12.25 |
Materials
| Housing Material | Steel |
|---|
