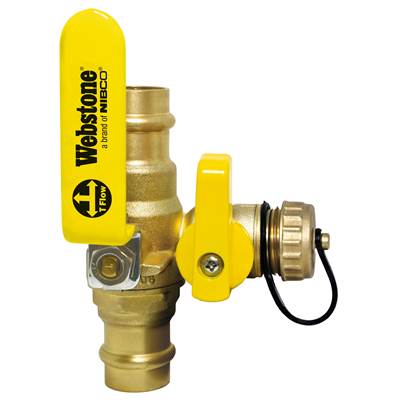

Nibco Ball Drain - 1-1/2″ - PRS
Item #: H-80616
UPC: 018394008748
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Drain Part
- Material: Brass
- Length: 7.1"
- Width: 4"
- Height: 3.6"
- Weight: 3.52 lbs.
Features
- Eliminates Assembly Needed to Isolate and Drain Any Portion of a Piped System
- Reversible Handle for Added Versatility
- ExClusive Adjustable Flow Path Allow for Draining From Either Side of the Ball
- Saves 27 Minutes
- Replaces 4 Components
- Eliminates 3 Leak Paths
- Available in FIP, SWT, PRS, PEX
- Certified to NSF/ANSI/CAN 61 and 372
- NSF/ANSI 14
Specifications
Product Specifications
| Applications | Residential Plumbing, Commercial Plumbing, Heating |
|---|---|
| Product Type | Drain Part |
| Figure Number | H-X061 |
| Type Of Valve | Ball Valve - Comibination |
| End Connection | Fusion Weld |
| Nominal Size 1 | 1-1/2 in |
| Nominal Size 2 | 1-1/2 in |
| Prop65 Warning | This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Max Temperature | 250 deg F Max |
| Nominal Pipe Size | 1-1/2 |
| Online Product ID | 12382060 |
| Minimum Order Quantity | 1 |
| Valve End Connection Type | Press |
| Valve Pressure Rating Wbs | 250 PSI CWP Max |
Dimensions
| Width | 4" |
|---|---|
| Height | 3.6" |
| Length | 7.1" |
| Weight | 3.52 lbs. |
| Size Dimensions | 1-1/2 in x 1-1/2 in |
Materials
| Material | Brass |
|---|---|
| All Basic Material | Brass |
