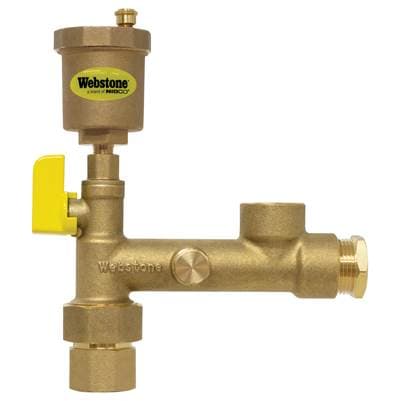

Nibco 3/4″ FIP Boiler Vent Valve
Item #: H-74613
UPC: 018394025127
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Item
- Material: Brass
- Length: 6.69"
- Width: 4.72"
- Height: 2.68"
- Weight: 1.54 lbs.
Features
- Union connection to boiler for easier installation and flexible positioning
- Includes an automatic air vent to release trapped air from the unit
- Integrated ball valve isolates vent for service without obstructing the PRV
- 3/4'' FIP port accomodates PRV provided with your boiler (or sold separately)
- 3/4'' close nipple provided for convenient adaptations to your specific boiler equipment
- Plugged 3/4'' FIP port for optional low water cut-off device
- Dual-sided and plugged 1/4'' FIP ports for flexible gauge installation
- Saves 60 Minutes
- Replaces 10 Components
- Eliminates 9 Leak Paths
- This valve is actuated by a blowout proof stem
- Double O-ring Stem Seals
- Patents Pending
- Available in FIP
Specifications
Product Specifications
| Shipping | L:6.69"x W:2.67"x H:4.72" 1.54 lbs. |
|---|---|
| Applications | Heating |
| Product Type | Item |
| Figure Number | H-7X61 |
| Type Of Valve | Ball Valve - Comibination |
| End Connection | Threaded |
| Nominal Size 1 | 3/4 in |
| Nominal Size 2 | 3/4 in |
| Prop65 Warning | This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| All Type Of Item | Valve |
| Nominal Pipe Size | 3/4 |
| Online Product ID | 13530705 |
| Minimum Order Quantity | 1 |
| Valve End Connection Type | FIP |
| Valve Pressure Rating Wbs | 145 PSI CWP Max |
Dimensions
| Width | 4.72" |
|---|---|
| Height | 2.68" |
| Length | 6.69" |
| Weight | 1.54 lbs. |
| Size Dimensions | 3/4 in x 3/4 in |
Materials
| Material | Brass |
|---|---|
| All Basic Material | Brass |
