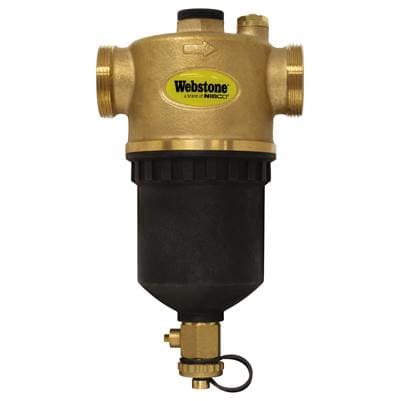

Nibco Magnetic Boiler Filter - Extra Large
Item #: H-70706
UPC: 018394020733
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Item
- Material: Brass
- Length: 11.42"
- Width: 9.06"
- Height: 5.31"
- Weight: 4.37 lbs.
Features
- High Powered 12000 Gauss Magnet Captures Ferrous Debris and Filters Iron Sludge Before it Can Damage the Boiler or Pump
- Protects System Components and Maintains System Efficiency
- Large Filter Body Increases Time Between Service
- Protective Sleeve Prevents Sludge from Accumulating Directly on the Magnet
- Remove the Magnet and the Debris Falls into the Cavity Below
- Includes Service Tool
- G-Series Connections Allow for Multiple Options to Customize the Sizes and Styles Desired for Your Installation
- Patents Pending
- Available in GMT
Specifications
Product Specifications
| Shipping | L:11.42"x W:9.06"x H:5.31" 4.37 lbs. |
|---|---|
| Applications | Heating |
| Product Type | Item |
| Figure Number | H-7X70XLB |
| Type Of Valve | Magnetic Boiler Filter |
| End Connection | Threaded |
| Nominal Size 1 | 1-1/2 in |
| Nominal Size 2 | 1-1/2 in |
| Prop65 Warning | This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Max Temperature | 250 deg F Max |
| Nominal Pipe Size | 1-1/4-2 |
| Online Product ID | 9889816 |
| Minimum Order Quantity | 1 |
| Valve End Connection Type | G Thread |
| Valve Pressure Rating Wbs | 145 PSI CWP Max |
Dimensions
| Width | 9.06" |
|---|---|
| Height | 5.31" |
| Length | 11.42" |
| Weight | 4.37 lbs. |
| Size Dimensions | 1-1/2 in x 1-1/2 in |
Materials
| Material | Brass |
|---|---|
| All Basic Material | Brass |
