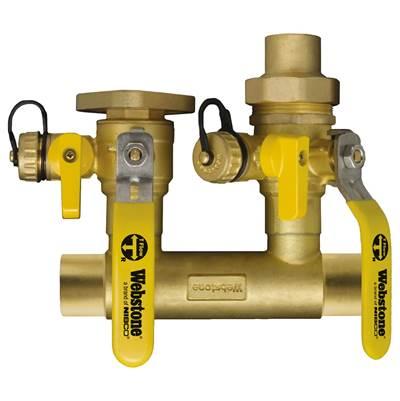

Nibco Hydro-Core Coupling - 1 1/2″ Sweat x 1 1/4″ Flange - Left Kit
Item #: H-58865-55
UPC: 018394007390
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Part
- Material: Brass
- Length: 11.22"
- Width: 7.8"
- Height: 4.72"
- Weight: 8.83 lbs.
Features
- The Ideal Solution for Most Near Boiler Piping or Secondary Loops
- Combines Webstone Isolator and Ball Drain With Closely Spaced Tee
- Eliminates Costly Field Fabrication
- Avoids Precise Calculation
- Simplifies Future Maintenance
- Saves 144 Minutes
- Replaces 17 Components
- Eliminates 16 Leakpaths
- Certified to NSF/ANSI 61
Specifications
Product Specifications
| Shipping | L:11.22"x W:11.22"x H:11.22" 8.83 lbs. |
|---|---|
| Applications | Heating |
| Product Type | Part |
| Figure Number | H-X885 |
| Type Of Valve | Ball Valve - Comibination |
| End Connection | Solder |
| Nominal Size 1 | 1-1/2 in |
| Nominal Size 2 | 1-1/4 in |
| Prop65 Warning | This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| All Type Of Item | Valve |
| Nominal Pipe Size | 1-1/2 X1-1/4 |
| Online Product ID | 4160747 |
| Minimum Order Quantity | 1 |
| Valve End Connection Type | SWT |
| Valve Pressure Rating Wbs | 600 PSI CWP Max |
Dimensions
| Width | 7.8" |
|---|---|
| Height | 4.72" |
| Length | 11.22" |
| Weight | 8.83 lbs. |
| Ship Width | 11.8100 |
| Ship Height | 10.2400 |
| Ship Length | 24.6100 |
| Ship Weight | 52.9800 |
| Size Dimensions | 1-1/2 in x 1-1/4 in |
Materials
| Material | Brass |
|---|---|
| All Basic Material | Brass |
| Mto Or Ato Materials | ATO |
