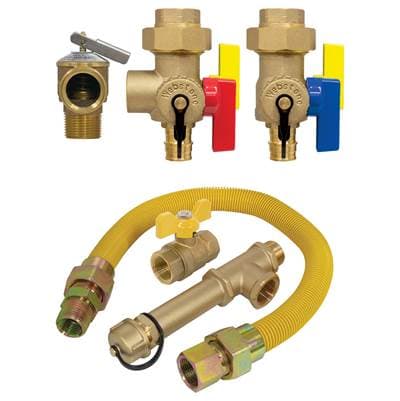

Nibco 3/4″ F1960 PEX - Expansion UC with GST & Flex Line
Item #: H-32443WPR-GST
UPC: 018394029675
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Valve Actuator
- Material: Lead-Free Brass
- Length: 4.13"
- Width: 2.6"
- Height: 3.98"
- Weight: 5.21 lbs.
Features
- Installs In Just Under 4'' of Space
- Quicker, Consistent Quality Installations
- Color-Coded Compact Lever Handles
- Allows for Easy Cleaning or Flushing of System
- Allows for One Person Diagnostic Testing
- Also for Use with Wall Hung and Combi Boiler
- Integral Gas Trap Design Replaces Common Field Fabrication that is Required for Every Gas Appliance Installation
- This valve is actuated by a blowout proof stem.
- Double O-ring Stem Seals
- Models available to satisfy all state and federal low-lead laws
- Available in FIP Union x FIP, FIP Union x SWT, FIP Union x PEX
- Saves 108 Minutes
- Replaces 14 Components
- Eliminates 13 Leak Paths
- Certified to NSF/ANSI/CAN 61 and 372
- ANSI Z21.15
- CSA 9.1
Specifications
Product Specifications
| GTIN | 50018394029670 |
|---|---|
| Shipping | L:12"x W:8"x H:5" 5.41 lbs. |
| Applications | Commercial Plumbing, Heating, Residential Plumbing |
| Product Type | Valve Actuator |
| Figure Number | H-X244WPR-GST |
| Type Of Valve | Ball Valve - Comibination |
| End Connection | PEX |
| Nominal Size 1 | 3/4 in |
| Nominal Size 2 | 3/4 in |
| Prop65 Warning | This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Max Temperature | 200 deg F Max (GST 149 deg F Max) |
| All Type Of Item | Quarter-Turn Valves |
| Nominal Pipe Size | 3/4 |
| Online Product ID | 16659934 |
| Potable Water Code | LL Compliant NSF/ANSI 372 |
| Minimum Order Quantity | 1 |
| Valve End Connection Type | FiP Union x F1960 PEX |
| Valve Pressure Rating Wbs | 250 PSI CWP Max (GST 1/2 PSI Max) |
Dimensions
| Width | 2.6" |
|---|---|
| Height | 3.98" |
| Length | 4.13" |
| Weight | 5.21 lbs. |
| Size Dimensions | 3/4 in x 3/4 in |
Materials
| Material | Lead-Free |
|---|---|
| All Basic Material | Lead-Free Brass |
| Mto Or Ato Materials | ATO |
