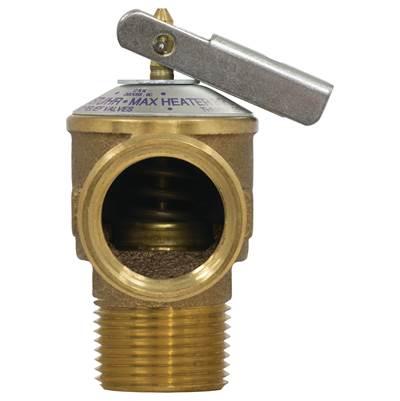

Nibco 3/4″ MIP Pressure Reducing Valve - 150 PSI - 500K BTU - Lead Free
Item #: H-20713W
UPC: 018394200135
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Pressure Reducing Valve
- Material: Brass
- Length: 3.23"
- Width: 1.77"
- Height: 1.77"
- Weight: 0.45 lbs.
Features
- Controls or Relieves Pressure in a System
- Models available to satisfy all state and federal low-lead laws
- Available in MIP x FIP
- Certified to NSF/ANSI 61
Specifications
Product Specifications
| Shipping | L:1.77"x W:1.77"x H:1.77" 0.45 lbs. |
|---|---|
| Applications | Residential Plumbing, Commercial Plumbing, Heating |
| Product Type | Pressure Reducing Valve |
| Figure Number | H-2071 |
| Type Of Valve | Pressure Relief Valve |
| End Connection | Threaded |
| Nominal Size 1 | 3/4 in |
| Nominal Size 2 | 3/4 in |
| Prop65 Warning | This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| All Type Of Item | Valve |
| Nominal Pipe Size | 3/4 |
| Online Product ID | 4160015 |
| Low Lead Compliant | Yes |
| Potable Water Code | LL Compliant NSF/ANSI 372 |
| Minimum Order Quantity | 1 |
| Valve End Connection Type | MIP x FIP |
| Valve Pressure Rating Wbs | 150 PSI CWP Max |
Dimensions
| Width | 1.77" |
|---|---|
| Height | 1.77" |
| Length | 3.23" |
| Weight | 0.45 lbs. |
| Ship Width | 11.0000 |
| Ship Height | 8.5000 |
| Ship Length | 19.0000 |
| Ship Weight | 45.0000 |
| Size Dimensions | 3/4 in x 3/4 in |
Materials
| Material | Brass |
|---|---|
| All Basic Material | Brass |
