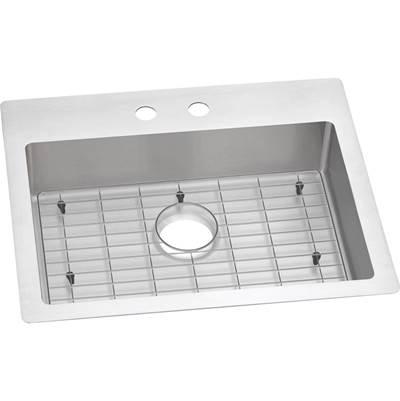

Elkay Crosstown 18 Gauge Stainless Steel 25″ x 22″ x 6″ Single Bowl Dual Mount Kitchen Sink Kit in Polished Satin
Item #: ECTSRAD25226TBG2
UPC: 94902110547
Free Shipping on LTL freight orders over $99
Overview
The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Features
- ADA COMPLIANT: Product is ADA compliant when properly installed.
- SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
- 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
- SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
- TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- DRAIN OPENING: Sink drain opening measures 3-1/2''.
- CABINET SIZE: Minimum cabinet size for this sink is 30''.
- KIT INCLUDES: ECTSRAD25226T sink, CTXBG2115 bottom grid; save the time of having to purchase each item separately.
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| Gauge | 18 |
| Holes | 2 |
| Style | Transitional |
| Finish | Polished Satin |
| Shipping | L:33.00"x W:24.50"x H:13.00" 24.00 lbs. |
| Collection | Crosstown |
| Bowl 1 Shape | Rectangular |
| Product Line | Elkay Residential |
| Product Type | Dual Mount |
| Sink Packages | Yes |
| Drain Position | Rear Center |
| Sound Deadening | Full spray sides and bottom with Sides and Bottom pads |
| Number Of Basins | 1 |
| Room Designation | Kitchen |
| Certifying Agency | IAPMO (cUPC_sinks) |
| Drain Size Bowl 1 | 3.50 |
| Online Product ID | 4927360 |
| Template Included | Yes |
| Product Compliance | ICC A117.1,ASME A112.19.3/CSA B45.4 |
| Minimum Cabinet Size | 30 |
| Countertop Cut Out Dim | 24-3/8'' x 21-3/8'' (619mm x 543mm) with 1/2'' (12mm) corner radius |
| Minimum Order Quantity | 1 |
| Installation Type Sinks | Drop In |
| Faucet Hole Config Of Sink | 2 |
| Mounting Hardware Included | Part No. 64090022 included for drop-in installation for countertops thicker than 3/4'' (19mm) up to 1-1/2'' (38.1mm) thick. |
Dimensions
| Depth | 6.00" |
|---|---|
| Width | 22.00" |
| Height | 6.00" |
| Length | 25.00" |
| Weight | 19.00 lbs. |
| Ship Width | 24.5000 |
| Ship Height | 10.8100 |
| Ship Length | 33.0000 |
| Ship Weight | 24.0000 |
| Bowl 1 Depth | 6.00 |
| Bowl 1 Width | 16.75 |
| Bowl 1 Length | 22.50 |
Materials
| Material | Stainless Steel |
|---|
