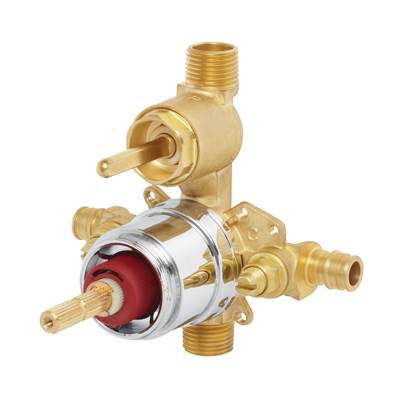

Speakman Sentinel Mark II Pressure Balanced Diverter Shower Valve - 1.75 GPM in Rough Brass
Item #: CPV-PB-DV-PXE
UPC: 671252142581
Overview
The Speakman Sentinel Mark II CPV-PB-DV-PXE Pressure Balance Diverter Shower Valve has been engineered to deliver a complete and consistent shower experience. Featuring a pressure balancing and temperature regulating ceramic cartridge - this shower valve ensures water will be delivered without ever becoming scalding hot. The CPV-PB-DV-PXE model features an integral diverter for easy transition between two shower heads or shower and tub. The CPV-PB-DV-PXE has PEX F1960 Cold-Expansion connections. Speakman pressure balance shower valves feature solid brass bodies with integral stops allowing for water shut off for valve maintenance. The valves also include temperature limit stops which allow the user to set a maximum temperature level. Speakman Sentinel Mark II Pressure Balance Shower Valves are ASSE 1016 certified to perform at flow rates as low as 1.75 GPM, making these valves ideal for use with shower heads from 2.5 to 2.0 GPM.
Features
- Diverter Shower Valve with PEX F1960 Cold-Expansion Inlet Connections
- Anti-scald element to prevent scalding water
- Adjustable temperature limit stop
- Durable, solid brass body
- Integral spring check stops
- ASME A112.18.1/CSA B125.1 and ASSE 1016 Certified
Specifications
Product Specifications
| Holes | 1.00 |
|---|---|
| Finish | Rough Brass |
| Listing | CEC, ASME A112.18.1/CSA B125.1 IAPMO |
| Mounting | Wall |
| Shipping | L:7.87"x W:6.10"x H:6.50" 2.50 lbs. |
| Warranty | 5 Year Limited |
| Collection | Sentinel Mark II |
| Valve Type | Pressure Balance |
| Product Type | Pressure Balancing Valve |
| Integral Stops | Yes |
| Prop65 Warning | This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Valve Included | Yes |
| Connection Size | 1/2'' |
| Connection Type | PEX, NPTM, and Sweat/Solder |
| Flow Rate (GPM) | 1.75 gal/min |
| Diverter Included | Yes |
| Online Product ID | 5571689 |
| Scald Guard Included | Yes |
| Rough In Valve Included | Yes |
Dimensions
| Width | 5.08" |
|---|---|
| Height | 7.00" |
| Length | 5.07" |
| Weight | 1.82 lbs. |
