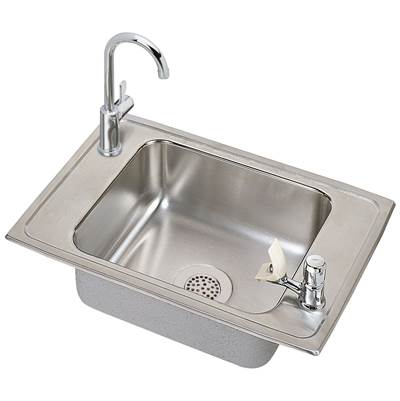

Elkay Celebrity Single Bowl Top Mount Sink Kit - 20 Gauge Stainless Steel - 25″ x 17″ x 6.875″ in Brushed Satin
Item #: CDKRC2517VRC
UPC: 94902228877
Free Shipping on LTL freight orders over $99
Overview
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America''s No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
Features
- DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room.
- 20-GAUGE STAINLESS STEEL: Highest grade 20-gauge thickness and Type 304 stainless steel for everyday lasting durability, performance and finish.
- QUIET: Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
- CENTER DRAIN: Drain is conveniently placed in the center of the sink.
- DRAIN OPENING: Sink drain opening measures 3-1/2''.
- CABINET SIZE: Minimum cabinet size for this sink is 30''.
- KIT INCLUDES: LKD20858LC faucet, LKVR18 drain, LKVR1141A bubblers; save the time of having to purchase each item separately.
Specifications
Product Specifications
| Gauge | 20 |
|---|---|
| Holes | 2 |
| Style | Traditional |
| Finish | Brushed Satin |
| Mounting | Sink Kits,Top Mount |
| Shipping | L:44.85"x W:26.28"x H:10.51" 22.25 lbs. |
| Collection | Celebrity |
| Application | Classroom |
| Bowl 1 Shape | Rectangular |
| Bowl 2 Shape | Rectangular |
| Product Line | Elkay Residential |
| Product Type | Recessed Drinking Fountain |
| Sink Packages | Yes |
| Drain Position | Center |
| Sound Deadening | Bottom only pads |
| Built In The Usa | Yes |
| Number Of Basins | 1 |
| Room Designation | Classroom |
| Drain Size Bowl 1 | 3.50 |
| Introduction Date | 6/3/12 |
| Online Product ID | 82700 |
| Product Compliance | ASME A112.19.3/CSA B45.4,ASME A112.18.2/CSA B125.2,ASME A112.18.1/CSA B125.1,CEC,NSF 372,NSF 61 |
| Minimum Cabinet Size | 30 |
| Countertop Cut Out Dim | 24-3/8'' x 16-3/8'' (619mm x 416mm) with 1-1/2'' (38mm) corner radius |
| Minimum Order Quantity | 1 |
| Installation Type Sinks | Drop In |
| Faucet Hole Config Of Sink | 2 |
| Mounting Hardware Included | Part No. 64090012 included for countertops up to 3/4'' (19mm) thick |
Dimensions
| Depth | 6.88" |
|---|---|
| Width | 17.00" |
| Height | 6.88" |
| Length | 25.00" |
| Weight | 15.00 lbs. |
| Ship Width | 26.2800 |
| Ship Height | 10.5100 |
| Ship Length | 44.8500 |
| Ship Weight | 22.2500 |
| Bowl 1 Depth | 6.75 |
| Bowl 1 Width | 14.00 |
| Bowl 1 Length | 15.75 |
Materials
| Material | Stainless Steel |
|---|
