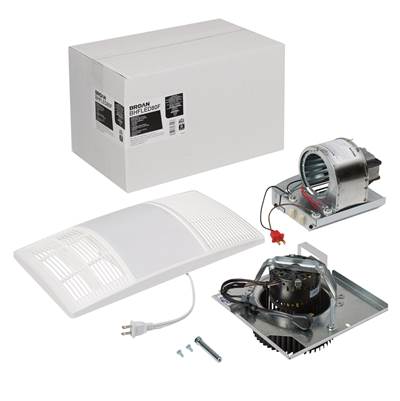

Broan Nutone Heater Ventilation Fan with LED - 80 CFM - 1.5 Sones in Bright White
Item #: BHFLED80F
UPC: 026715265503
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Light And Heat Combo Exhaust Fan
- Finish: Bright White
- Length: 16.25"
- Width: 9.75"
- Height: 2.25"
- Weight: 2.04 lbs.
Features
- 80 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.5 Sones for Quiet performance, enough sound to know your fan is on.
- 1300-Watt heater for instant heat when you want it
- Integrated dimmable LED with color adjustable CCT lighting; Choose between warm white (2700K), bright white (3500K), and daylight (5000K) color options
- LED Dimmable Lighting may be used as a nightlight (dimmer switch is not included)
- Modern design matches an array of bathroom decor
- Fits in 2'' x 6'' ceiling construction
- Rugged galvanized steel housing stands up to moisture
- All air and sound ratings are HVI Certified
- One year warranty
- To install this product, a dedicated 20 amp circuit is required.
Specifications
Product Specifications
| Sones | 1.5 |
|---|---|
| Finish | Bright White |
| Cfm Hvi | 80 |
| Lighted | Yes |
| Listing | UL |
| Voltage | 120v |
| Wattage | 1300 |
| Includes | Hardware |
| Shipping | L:16.8"x W:10.56"x H:10.44" 9.75 lbs. |
| Warranty | 1 Year |
| Duct Size | 4'' |
| Ul Listed | Yes |
| Cul Listed | Yes |
| Duct Shape | Round or Rectangular |
| Nightlight | Yes |
| Heater Type | Surface Mount Ceiling |
| Ceiling Only | Yes |
| Culus Listed | Yes |
| Grille Shape | Rectangle |
| Product Line | Broan |
| Product Type | Light And Heat Combo Exhaust Fan |
| Project Pack | Yes |
| Amperage Amps | 12 |
| Hvi Vertified | Yes |
| Lighting Type | LED |
| Duct Direction | Horizontal/Vertical |
| Light Built In | Yes |
| Light Dimmable | Yes |
| Air Flow Method | Centrifugal Blower |
| Lights Included | Yes |
| Sones Max Rating | 1.5 |
| Heater Size Watts | 1300 |
| Installation Type | Ceiling |
| Online Product ID | 10770814 |
| Lumens Light Source | 800 |
| Bulb Recommended Type | Integrated LED Module |
| Certification File No | E10687 |
| Minimum Order Quantity | 1 |
| For Commercial Applications | Yes |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 75 |
| Light Color Rendering Index Cri | 80 |
Dimensions
| Width | 9.75" |
|---|---|
| Height | 2.25" |
| Length | 16.25" |
| Weight | 2.04 lbs. |
| Grille Width In | 9.75 |
| Grille Height In | 2.25 |
| Grille Length Depth In | 16.25 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
