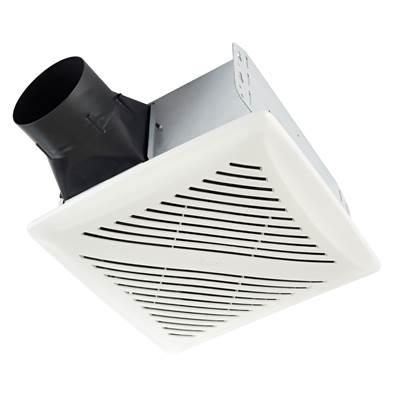

Broan Nutone Flex DC Series Bathroom Exhaust Fan - 50-80-110 CFM - <0.3-0.4-0.9 Sones - Humidity Sensing in White
Item #: AE50110DCS
UPC: 026715257010
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Fan Only Exhaust Fan
- Finish: White
- Collection: Flex DC™ Series
- Length: 11.5"
- Width: 12.25"
- Height: 5.75"
- Weight: 7.38 lbs.
Features
- FlexFlow technology, select between 50, 80 or 110 CFM
- Quiet operation at <0.3-0.4-0.9 sones
- Sensaire Humidity control automatically turns fans ON when a rapid to moderate (user adjustable) increase of humidity is sensed or when humidity rises above the user-adjustable set-point (50 Percent to 80 Percent RH)
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room-side - no attic access required. This means a faster, easier installation
- Flex DC fans reduce air leakage by up to 50 Percent compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug in, permanently lubricated, brushless DC motor - engineered for continuous operation
- UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
- ENERGY STAR certified product
Specifications
Product Specifications
| Sones | <0.3-0.4-0.9 |
|---|---|
| Finish | White |
| Cfm Hvi | 50-80-110 |
| Listing | UL |
| Type Ic | Yes |
| Voltage | 120v |
| Includes | Non-metallic damper/duct connector |
| Shipping | L:13.3"x W:11"x H:13.3" 8.2 lbs. |
| Warranty | 3 Years |
| Duct Size | 4'' |
| Ul Listed | Yes |
| Collection | Flex DC™ Series |
| Cul Listed | Yes |
| Duct Shape | Round |
| ENERGY STAR | Yes |
| Ceiling Only | Yes |
| Culus Listed | Yes |
| Frequency Hz | 60 |
| Grille Shape | Rectangle |
| Product Line | Broan |
| Product Type | Fan Only Exhaust Fan |
| Amperage Amps | 0.3 |
| Hvi Vertified | Yes |
| Built In Timer | Yes |
| Duct Direction | Horizontal/Vertical |
| Humidity Sensing | Yes |
| Hardware Included | Yes |
| Installation Type | Ceiling |
| Online Product ID | 9323544 |
| Automatic Shut Off | Yes |
| Title 24 Qualified | Yes |
| Certification File No | E17814 |
| Energy Star Certified | Yes |
| Minimum Order Quantity | 1 |
| Radiation Damper Available | Yes |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 105 |
| Contain Electronic Equipment | Yes |
| Room Side Installation Possibile | Yes |
| Minimum Construction Space Required | 2'' x 6'' |
Dimensions
| Width | 12.25" |
|---|---|
| Height | 5.75" |
| Length | 11.5" |
| Weight | 7.38 lbs. |
| Grille Width In | 12.25 |
| Housing Width In | 10 |
| Housing Height In | 5.75 |
| Housing Dimensions In | 9-1/4'' x 10'' x 5-3/4'' |
| Grille Length Depth In | 11.5 |
| Housing Length Depth In | 9.25 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
