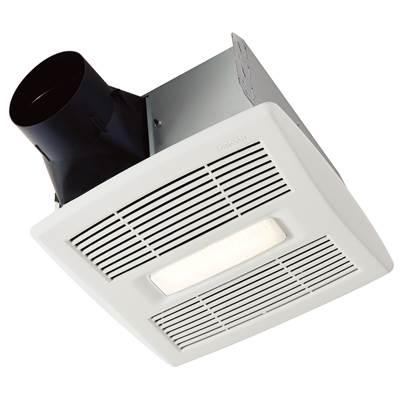

Broan Nutone Flex DC™ Series Ventilation Fan with Light - 50-80-110 CFM Selectable - <0.3-0.4-0.9 Sones in White
Item #: AE50110DCL
UPC: 026715256990
Free Shipping on LTL freight orders over $99
Overview
- Product Type: With Light Exhaust Fan
- Finish: White
- Collection: Flex DC™ Series
- Length: 11.75"
- Width: 12.5"
- Height: 5.75"
- Weight: 7.47 lbs.
Features
- FlexFlow technology, select between 50, 80 or 110 CFM
- Quiet operation at <0.3-0.4-0.9 sones
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room-side - no attic access required. This means a faster, easier installation, so you can move on to something else
- Flex DC fans reduce air leakage by up to 50 Percent compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug in, permanently lubricated, brushless DC motor - engineered for continuous operation
- Can be installed in a wall if mounted 8-ft. or more abovethe floor
- UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
- ENERGY STAR certified product
Specifications
Product Specifications
| Sones | <0.3-0.4-0.9 |
|---|---|
| Finish | White |
| Cfm Hvi | 50-80-110 |
| Lighted | Yes |
| Listing | UL |
| Type Ic | Yes |
| Voltage | 120v |
| Includes | Non-metallic damper/duct connector, and an integrated LED module |
| Shipping | L:13.3"x W:11"x H:13.3" 8.3 lbs. |
| Warranty | 3 Years |
| Duct Size | 4'' |
| Ul Listed | Yes |
| Collection | Flex DC™ Series |
| Cul Listed | Yes |
| Duct Shape | Round |
| ENERGY STAR | Yes |
| Ceiling Only | Yes |
| Culus Listed | Yes |
| Frequency Hz | 60 |
| Grille Shape | Rectangle |
| Light Source | LED |
| Product Line | Broan |
| Product Type | With Light Exhaust Fan |
| Amperage Amps | 0.4 |
| Hvi Vertified | Yes |
| Lighting Type | LED |
| Duct Direction | Horizontal/Vertical |
| Light Built In | Yes |
| Light Dimmable | Yes |
| Lights Included | Yes |
| Hardware Included | Yes |
| Installation Type | Ceiling |
| Online Product ID | 9128674 |
| Title 24 Qualified | Yes |
| Lumens Light Source | 800 |
| Bulb Recommended Type | Integrated LED Module |
| Certification File No | E17814 |
| Energy Star Certified | Yes |
| Minimum Order Quantity | 1 |
| Color Temperature Kelvin | 3500 |
| Lighting Modules Number Of | 1 |
| Radiation Damper Available | Yes |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 105 |
| Contain Electronic Equipment | Yes |
| Room Side Installation Possibile | Yes |
| Minimum Construction Space Required | 2'' x 6'' |
Dimensions
| Width | 12.5" |
|---|---|
| Height | 5.75" |
| Length | 11.75" |
| Weight | 7.47 lbs. |
| Grille Width In | 12.5 |
| Housing Width In | 10 |
| Housing Height In | 5.75 |
| Housing Dimensions In | 9-1/4'' x 10'' x 5-3/4'' |
| Grille Length Depth In | 11.75 |
| Housing Length Depth In | 9.25 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
