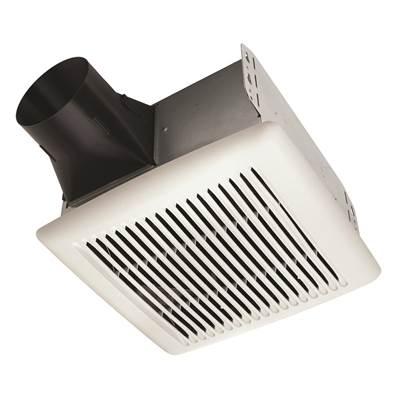

Broan Nutone Flex™ Series 110 CFM Humidity Sensing Ventilation Fan - 1.0 Sone Energy Star in White
Item #: AE110S
UPC: 026715249282
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Plumbing Part
- Finish: White
- Collection: Broan Flex™ Series
- Length: 11.5"
- Width: 12"
- Height: 5.75"
- Weight: 9 lbs.
Features
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for Ultra quiet performance, you might not notice it''s on
- Sensaire humidity sensing technology, senses humidity up to 4X faster than the competition
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- EzDuct connector can be installed from the room side, with no attic access required
- TrueSeal Damper technology reduces air leakage up to 50 Percent
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- UL Listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only).
- Powerful enough for rooms up to 100 sq. ft.
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Specifications
Product Specifications
| Sones | 1 |
|---|---|
| Finish | White |
| Cfm Hvi | 110 |
| Listing | UL |
| Voltage | 120v |
| Includes | Non-metallic damper/duct connector |
| Shipping | L:13.3"x W:11"x H:13.3" 9.5 lbs. |
| Duct Size | 4'' |
| Ul Listed | Yes |
| Collection | Broan Flex™ Series |
| Cul Listed | Yes |
| Duct Shape | Round |
| ENERGY STAR | Yes |
| Ceiling Only | Yes |
| Culus Listed | Yes |
| Frequency Hz | 60 |
| Grille Shape | Rectangle |
| Product Line | Broan |
| Product Type | Plumbing Part |
| Amperage Amps | 0.3 |
| Hvi Vertified | Yes |
| Built In Timer | Yes |
| Duct Direction | Horizontal/Vertical |
| Humidity Sensing | Yes |
| Hardware Included | Yes |
| Installation Type | Ceiling |
| Online Product ID | 2951429 |
| Automatic Shut Off | Yes |
| Certification File No | E17814 |
| Energy Star Certified | Yes |
| Minimum Order Quantity | 1 |
| Radiation Damper Available | Yes |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 105 |
| Contain Electronic Equipment | Yes |
| Room Side Installation Possibile | Yes |
| Minimum Construction Space Required | 2'' x 6'' |
Dimensions
| Width | 12" |
|---|---|
| Height | 5.75" |
| Length | 11.5" |
| Weight | 9 lbs. |
| Grille Width In | 12 |
| Housing Width In | 10 |
| Housing Height In | 5.75 |
| Housing Dimensions In | 9-1/4'' x 10'' x 5-3/4'' |
| Grille Length Depth In | 11.5 |
| Housing Length Depth In | 9.25 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
