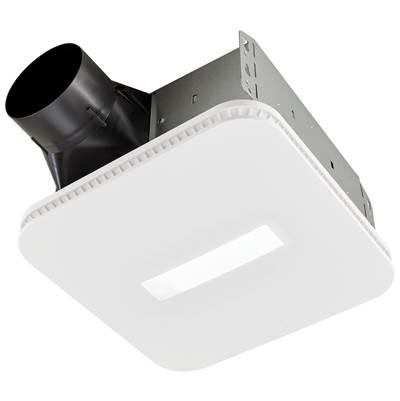

Broan Nutone Broan Flex™ Series Ventilation Fan with Light - 110 CFM - 1.0 Sones in White
Item #: AE110LK
UPC: 026715263493
Free Shipping on LTL freight orders over $99
Overview
- Product Type: With Light Exhaust Fan
- Finish: White
- Collection: Broan Flex™ Series
- Length: 12.25"
- Width: 12.25"
- Height: 5.75"
- Weight: 9.3 lbs.
Features
- 110 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for whisper quiet operation
- Broan Flex Series ventilation fans easily install from the room side, which makes it possible to retrofit to spaces with no attic access
- CleanCover grille stays cleaner longer with fewer vent slots to collect dust
- Integrated LED module to provide energy efficient lighting
- FoldAway mounting ears precisely positioned the fan for new construction applications or fold flat for retrofit installations with no attic access
- EZDuct connector creates an air tight seal while connecting to the duct from below the ceiling
- TrueSeal damper technology reduces air leakage up to 50 Percent , the tightest seal against backdrafts
- SnapFit flange kit offers flexible installation for new construction or retrofit upgrades
- ENERGY STAR certified
- 4 in. duct connector with damper
- Fits 2 in. x 6 in. ceiling construction
- UL listed for use in insulated ceilings (type I.C.) and HVI-2100 certified for safety
- UL listed for use over bathtubs or showers when connected to GFCI-protected branch circuit (not included)
- 3-year limited warranty
Specifications
Product Specifications
| Sones | 1 |
|---|---|
| Finish | White |
| Cfm Hvi | 110 |
| Lighted | Yes |
| Listing | UL |
| Type Ic | Yes |
| Voltage | 120v |
| Includes | Non-metallic damper/duct connector and integrated LED module |
| Shipping | L:13.3"x W:11"x H:13.3" 9.2 lbs. |
| Warranty | 3 Years |
| Duct Size | 4'' |
| Ul Listed | Yes |
| Collection | Broan Flex™ Series |
| Cul Listed | Yes |
| Duct Shape | Round |
| ENERGY STAR | Yes |
| Culus Listed | Yes |
| Frequency Hz | 60 |
| Grille Shape | Square |
| Light Source | LED |
| Product Line | Broan |
| Product Type | With Light Exhaust Fan |
| Amperage Amps | 0.3 |
| Hvi Vertified | Yes |
| Lighting Type | LED |
| Duct Direction | Horizontal/Vertical |
| Light Built In | Yes |
| Light Dimmable | Yes |
| Lights Included | Yes |
| Hardware Included | Yes |
| Installation Type | Ceiling;Wall |
| Online Product ID | 9323541 |
| Lumens Light Source | 800 |
| Bulb Recommended Type | Integrated LED Module |
| Certification File No | E17814 |
| Energy Star Certified | Yes |
| Minimum Order Quantity | 1 |
| Color Temperature Kelvin | 3500 |
| Lighting Modules Number Of | 1 |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 105 |
| Contain Electronic Equipment | Yes |
| Room Side Installation Possibile | Yes |
| Minimum Construction Space Required | 2'' x 6'' |
Dimensions
| Width | 12.25" |
|---|---|
| Height | 5.75" |
| Length | 12.25" |
| Weight | 9.3 lbs. |
| Grille Width In | 12.25 |
| Grille Height In | 1.13 |
| Housing Width In | 10 |
| Housing Height In | 5.75 |
| Housing Dimensions In | 9-1/4'' x 10'' x 5-3/4'' |
| Grille Length Depth In | 12.25 |
| Housing Length Depth In | 9.25 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
