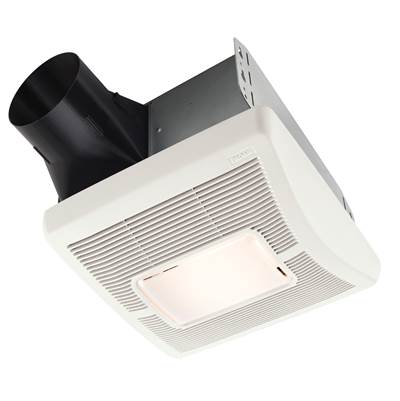

Broan Nutone Flex™ Series 110 CFM Ventilation Fan Light - 1.3 Sones in White
Item #: A110L
UPC: 026715235339
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Plumbing Part
- Finish: White
- Collection: Broan Flex™ Series
- Length: 12.13"
- Width: 11.5"
- Height: 8.5"
- Weight: 9.6 lbs.
Features
- 110 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.3 Sones for Quiet performance, enough sound to know your fan is on
- 100-Watt maximum incandescent A19 type bulb or energy efficient equivalent bulb with maximum overall length of 4.4 in. or less (bulb not included)
- Retrofit installations can be done entirely from the room-side, no attic access required. This means a faster, easier installation
- EzDuct connector can be installed from the room side, with no attic access required
- TrueSeal Damper technology reduces air leakage up to 50 Percent
- SnapFit Flange Kit offers flexible installation for new construction or retrofit upgrades
- Foldable mounting ears allow for easy installation in both new construction and room-side replacement applications
- UL listed for use over tub or shower when connected to a GFCI-protected branch circuit
- Powerful enough for rooms up to 105 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Specifications
Product Specifications
| Sones | 1.3 |
|---|---|
| Finish | White |
| Cfm Hvi | 110 |
| Lighted | Yes |
| Listing | UL |
| Type Ic | Yes |
| Voltage | 120v |
| Wattage | 23.4 |
| Includes | Non-metallic damper/duct connector |
| Mounting | Ceiling |
| Shipping | L:13.3"x W:12.2"x H:13.3" 9.6 lbs. |
| Warranty | 3 Years |
| Duct Size | 4'' |
| Ul Listed | Yes |
| Bulb Shape | A19 |
| Collection | Broan Flex™ Series |
| Duct Shape | Round |
| Ceiling Only | Yes |
| Frequency Hz | 60 |
| Grille Shape | Rectangle |
| Product Line | Broan |
| Product Type | Plumbing Part |
| Amperage Amps | 1.2 |
| Hvi Vertified | Yes |
| Lighting Type | Incandescent |
| Duct Direction | Horizontal/Vertical |
| Air Flow Method | Centrifugal Blower |
| Hardware Included | Yes |
| Installation Type | Ceiling |
| Online Product ID | 2312168 |
| Bulb Recommended Type | A19 |
| Certification File No | E17814 |
| Minimum Order Quantity | 1 |
| Lighting Modules Number Of | 1 |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 105 |
| Contain Electronic Equipment | Yes |
| Room Side Installation Possibile | Yes |
| Minimum Construction Space Required | 2'' x 6'' |
Dimensions
| Width | 11.5" |
|---|---|
| Height | 8.5" |
| Length | 12.13" |
| Weight | 9.6 lbs. |
| Grille Width In | 11.5 |
| Grille Height In | 2.75 |
| Housing Width In | 10 |
| Housing Height In | 5.75 |
| Housing Dimensions In | 9-1/4'' x 10'' x 5-3/4'' |
| Grille Length Depth In | 12.13 |
| Ceiling Cutout Width In | 9.75 |
| Housing Length Depth In | 9.25 |
| Ceiling Cutout Length In | 10.5 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
