Kohler Juvenile® Ultra Flushometer Bowl - Elongated - Floor-Mount Top Spud in White
Item #: 96059-0
UPC: 885612549068
Overview
Ideal for school construction and remodeling, the Juvenile Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design. Measuring 13-3/4" to the top of the rim, the Juvenile Ultra meets both ADA and Texas Accessibility Standard (TAS) height requirements for elementary school children, 5 through 8 years old. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. The Juvenile Ultra top spud is listed from 1.0 to 1.6 gpf and performs well at every flush interval, making it uniquely effective with dual flush valves. It has been proven with all manner of valves (diaphragm, piston, manual, and electronic) from a variety of manufacturers.

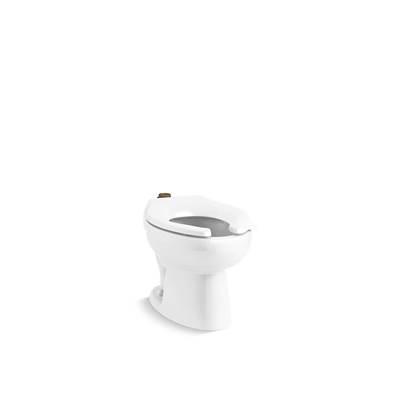

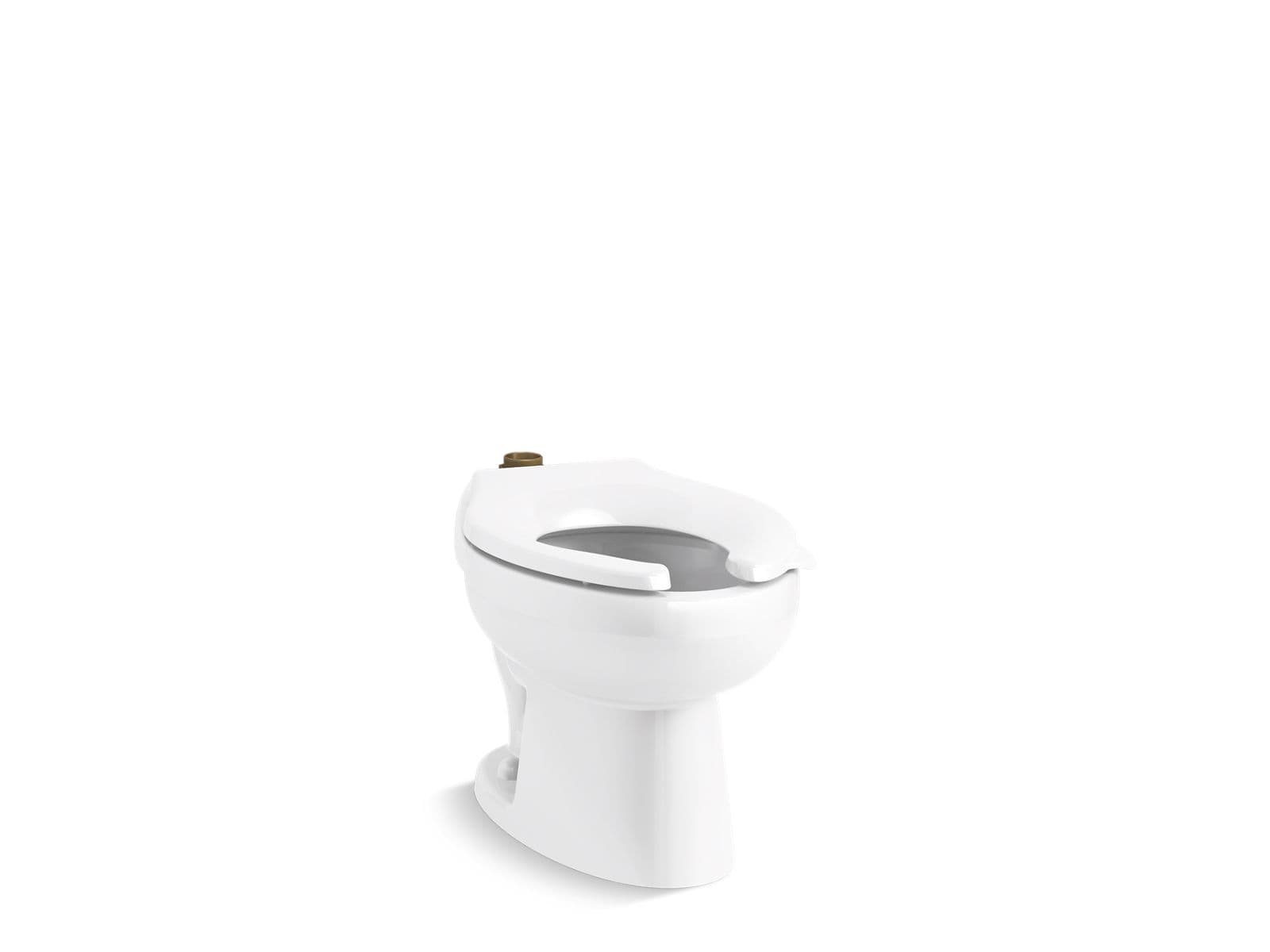

Juvenile™ Ultra Floor-mount top spud flushometer bowl
Features
- 1-1/2" (38 mm) top spud
- Elongated bowl, standard height
- 2-1/8" (54 mm) fully glazed trapway
- 10" x 7" (254 mm x 178 mm) water surface
- 1.0 gpf (3.8 lpf), 1.1 gpf (4.2 lpf), 1.28 (4.8 lpf), or 1.6 gpf (6.0 lpf) depending on flushometer specified
- Also available with antimicrobial finish K-96059-SS
- 10" or 12" (254 or 305 mm) rough-in
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| GTIN | 00885612549068 |
| Finish | White |
| CALGreen | Yes |
| Shipping | L:27.87"x W:15.35"x H:15.87" 44.7 lbs. |
| Collection | Juvenile |
| Watersense | Yes |
| Product Type | Toilet Bowl |
| Csa Compliant | Yes |
| Product Style | Transitional |
| Ansi Compliant | Yes |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Prop65 Warning | Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Product Warranty | KOHLER® One-Year Limited Warranty |
| Introduction Date | 3/1/2017 |
| Online Product ID | 2922754 |
Dimensions
| Width | 14.62" |
|---|---|
| Height | 13.75" |
| Length | 25.94" |
| Weight | 44.700 |
Materials
| Material | Vitreous China |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Other Documents
Replacement Parts
Genuine Kohler replacement parts compatible with Item #96059-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Kohler Genuine Parts BOLT Cover Accessory PACK - Bone Natural Almond | K-1013092-47 | $4.75 | |
 | Kohler Genuine Parts Closet SPUD Assy, 1 1/2 | K-18357 | $37.93 | |
 | Nut, | K-50798 | $16.80 | |
 | Spud Washer, 1 1/2" | K-50800 | $5.40 | |
 | Washer, Hard Fiber | K-50799 | $2.60 | |
| — | — | 52048 | — | |
| — | — | 50797 | — | |
