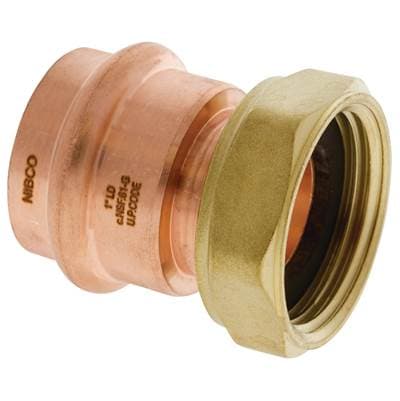

Nibco PC634 Tailpiece - 1″ x 1-1/4″ - PXF x BSP in Copper
Item #: 926730FPC
UPC: 039923452528
Free Shipping on LTL freight orders over $99
Overview
The NIBCO Press System copper tailpiece features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The union has a press connection and a male NPT thread. It is used to allow repair to the line without damage between a press connection and threaded connection.
Features
- Operating pressure 200 psi cwp. Select configurations to 300 psi cwp.
- Select configurations to 300 psi cwp
- Temperature range -20 degree F to 250 degree F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- NSF/ANSI/CAN-61
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
- IAPMO Recognized to 300 PSI per ASTM F3226
Specifications
Product Specifications
| Product Type | Tailpiece Or Tube |
|---|---|
| Online Product ID | 18851714 |
| Minimum Order Quantity | 5 |
Dimensions
| Width | 1.85" |
|---|---|
| Height | 1.78" |
| Length | 2.05" |
| Weight | 0.35 lbs. |
Materials
| Material | Copper |
|---|
