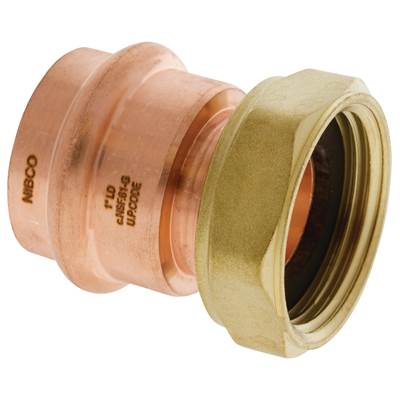

Nibco PC634 Tailpiece - 3/4″ x 1″ - PXF x BSP
Item #: 926710FPC
UPC: 039923452504
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Tailpiece Or Tube
- Material: Copper
- Length: 1.6"
- Width: 1.46"
- Height: 1.44"
- Weight: 0.23 lbs.
Features
- Operating pressure 200 psi cwp. Select configurations to 300 psi cwp.
- Select configurations to 300 psi cwp
- Temperature range -20 degree F to 250 degree F
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200 Copper
- NSF/ANSI/CAN-61
- Third party certified to UPC
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
- IAPMO Recognized to 300 PSI per ASTM F3226
Specifications
Product Specifications
| Applications | Automatic Sprinkler Systems, Commercial Plumbing, Heating, HVAC, Irrigation, Lead Free, Residential Plumbing |
|---|---|
| Product Type | Tailpiece Or Tube |
| Figure Number | PC634 |
| End Connection | Threaded |
| Nominal Size 1 | 3/4 in |
| Nominal Size 2 | 1 in |
| All Type Of Item | Accessory/Part |
| Nominal Pipe Size | 3/4 X 1 |
| Online Product ID | 17924526 |
| Potable Water Code | LL Compliant NSF/ANSI 372 |
| Minimum Order Quantity | 5 |
| Metal End Connection Type | Prs x F BSP, Prs |
Dimensions
| Width | 1.46" |
|---|---|
| Height | 1.44" |
| Length | 1.6" |
| Weight | 0.23 lbs. |
| Size Dimensions | 3/4 in x 1 in |
Materials
| All Basic Material | Copper |
|---|
