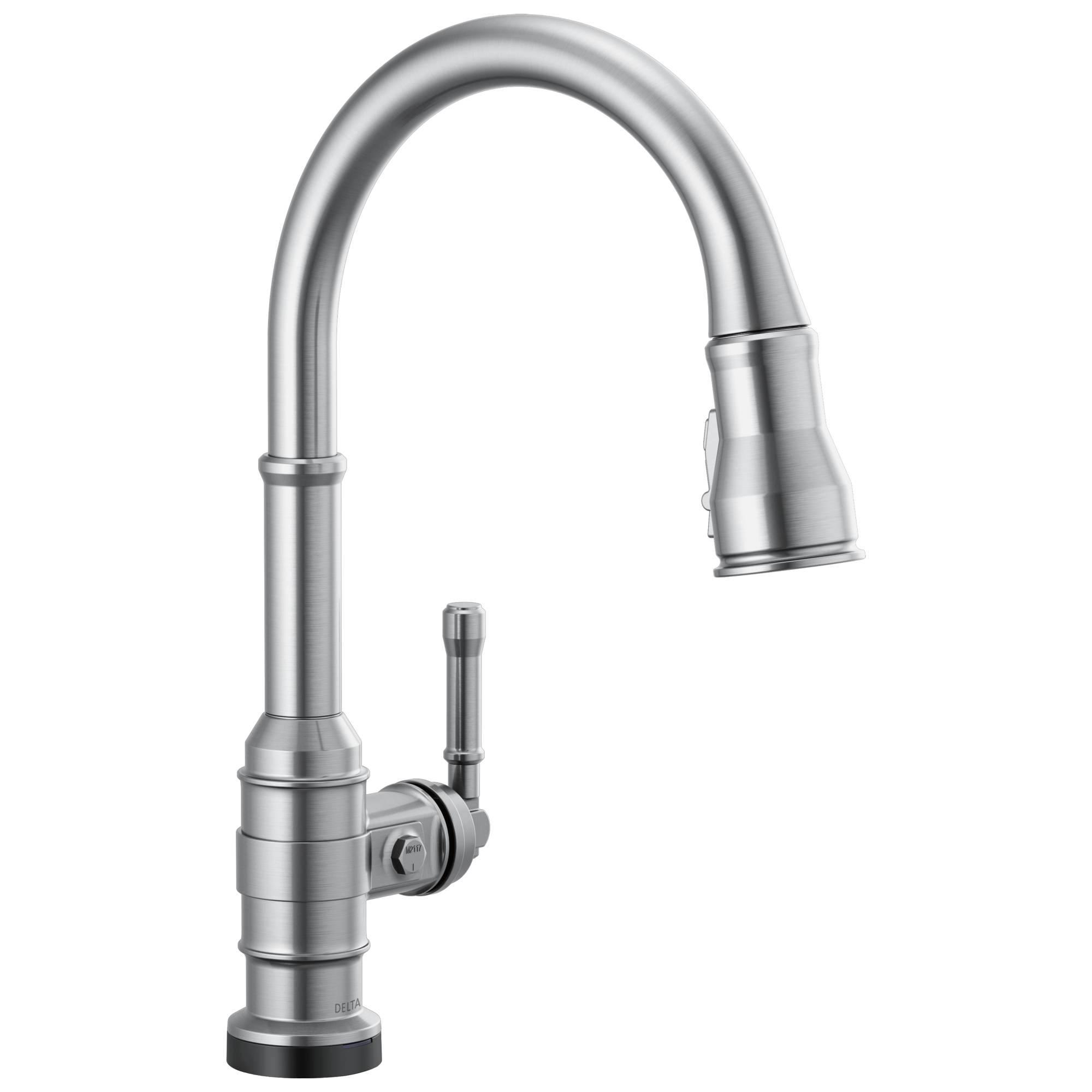

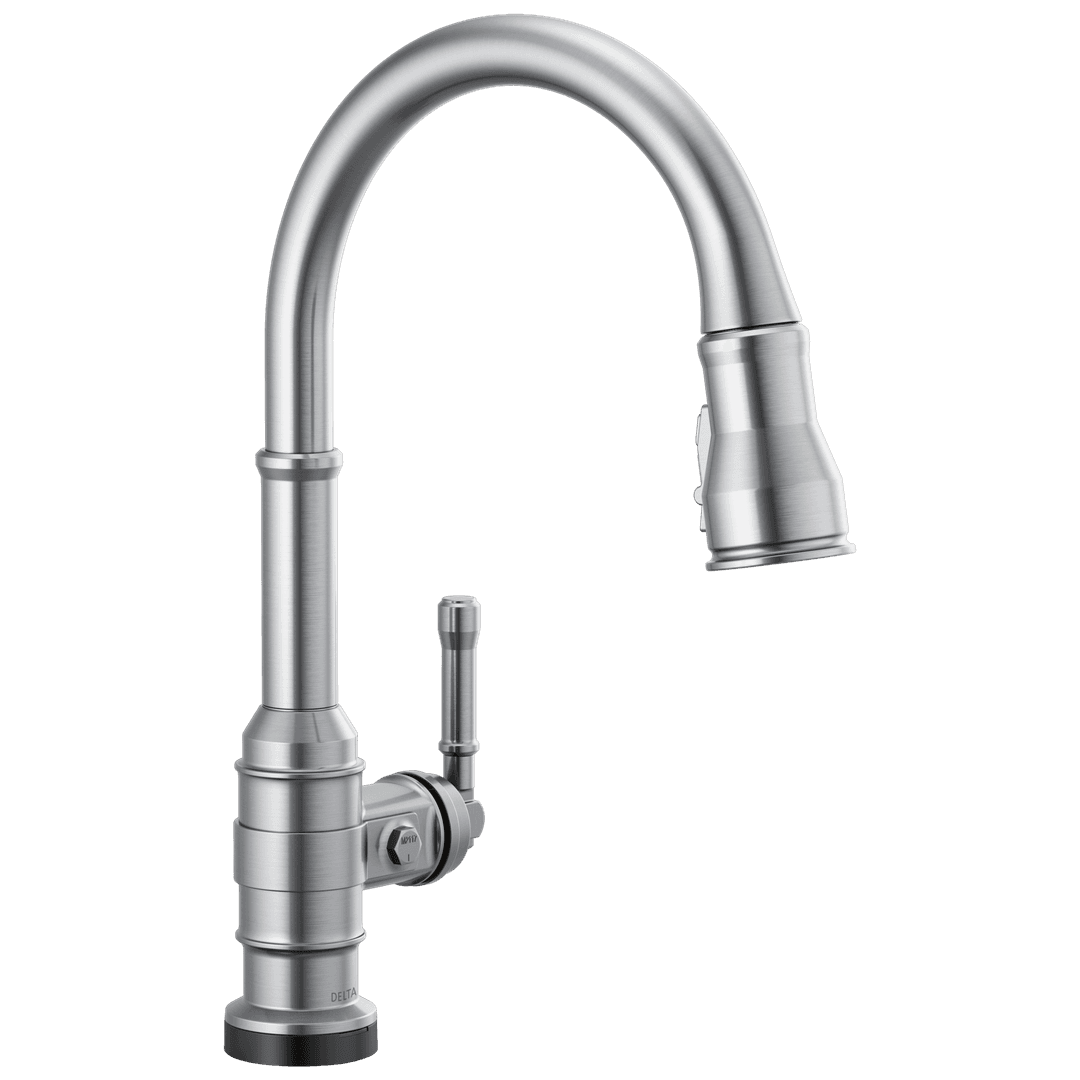

Delta Faucet Broderick™ Pull-Down Kitchen Faucet - Single Handle with Touch2O Technology - 1.8 GPM in Arctic Stainless
Item #: 9190T-AR-DST
UPC: 034449924641
Free Shipping on LTL freight orders over $99
Overview
The powerful features of the Broderick® Collection take center stage in the kitchen, with an industrial style that alludes to a rich heritage. The collection includes distinctive bridge faucet and pull
Features
- With Touch2O® Technology a simple touch anywhere on the spout or handle will start and stop the flow of water
- Helps keep your faucet cleaner, because washing the mess off your hands shouldn’t involve making a mess of your faucet
- LED light signals blue when touch mode is active and flash red when batteries are running low
- Automatic water flow shut-off after four minutes helps conserve water
- Integrated TempSense™ LED light shows water temperature, changing from blue to magenta to red as temperature increases
- Requires 6 AA (included) or 6 C batteries
- Over 90% of households operate their Touch2O® Faucets 20 minutes per day or less
- Intuitive Touch2O® Technology can sense the difference between a touch and a grab, reducing the chances of activation
- Optional A/C adapter EP102157 may be ordered separately
- MagnaTite® Docking uses a powerful integrated magnet to snap your faucet spray wand precisely into place and hold it there so it stays docked when not in use and doesn’t droop over time
- ShieldSpray® Technology powers off the mess without making a mess
- Concentrated stream cuts through messes and innovative water shield reduces splatter
- Soft, rubber Touch-Clean® spray holes allow you to easily wipe away calcium and lime build-up with the touch of a finger
- DIAMOND™ Seal Technology is less hassle to install and helps your faucet perform like new for life, reducing leak points and lasting twice as long as the industry standard
- Everything you need is together in one convenient box, including integrated InnoFlex® PEX supply lines
- Fits 1 or 3-hole installations with optional deck plate (sold separately)
- Optional 10 in. deck plate RP100845AR available for purchase separately
- Meets standards set by Americans with Disabilities Act (ADA)
- The high-arc, gooseneck design swivels 360 degrees with a 20-in. retractable hose for added convenience during everyday kitchen tasks
- Order RP100632AR for coordinating soap dispenser (sold separately)
Specifications
Product Specifications
| CEC | Yes |
|---|---|
| Holes | 1,3 |
| Finish | Arctic Stainless |
| Handles | 1 |
| Shipping | L:27"x W:13.25"x H:3.25" |
| Collection | Broderick™ |
| Handle Type | Lever |
| Product Type | Retractable Faucet |
| Flow Rate (GPM) | 1.8 gal/min |
| Introduction Date | 2019-10-28 |
| Online Product ID | 6832456 |
| Hols Configuration | 1 or 3-hole 8'' installation |
| Low Lead Compliant | Yes |
Dimensions
| Width | 11" |
|---|---|
| Height | 15.88" |
| Length | 10.38" |
| Weight | 6.7 lbs. |
| Ship Width | 11.0000 |
| Ship Height | 15.8800 |
| Ship Length | 10.3800 |
Materials
| Material | Brass |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
Other Documents
Replacement Parts
Genuine Delta Faucet replacement parts compatible with Item #9190T-AR-DST.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Brizo Artesso Touch Base Assembly | RP64075 | $66.20 | |
 | Brizo Belo Gaskets | RP51243 | $11.95 | |
| — | Brizo Odin Bonnet | RP74776 | $70.50 | |
| — | Brizo Other O-ring | RP90781 | $14.10 | |
| — | Brizo Venuto Pump | RP83779 | $14.10 | |
 | Delta Faucet BroderickE Bonnet Cap - Chrome | RP100836 | $19.50 | |
| Delta Faucet BroderickE Handle Assembly - Chrome | RP100834 | $80.25 | |
| Delta Faucet BroderickE Handle Set Screw and Button - Chrome | RP100835 | $27.45 | |
| Delta Faucet BroderickE Mounting Gasket | RP100832 | $15.95 | |
| Delta Faucet BroderickE Pulldown Spout Assembly - Chrome | RP100829 | $236.70 | |
| Delta Faucet BroderickE Shield Spray Wand - Chrome | RP100833 | $109.95 | |
 | Delta Faucet BroderickE Soap/Lotion Dispenser w/Bottle - Chrome | RP100632 | $142.75 | |
 | Delta Faucet BroderickE | Escutcheon - Chrome | RP100845 | $163.20 | |
 | Delta Faucet Other A/C Power Supply | EP102157 | $81.00 | |
 | Delta Faucet Other Adapter - Slip Joint | RP63265 | $58.55 | |
 | Delta Faucet Other Adapter Kit - PEX Compression (10) | RP63264 | $92.90 | |
 | Delta Faucet Other Adapter Kit - PEX Compression (4) | RP63263 | $45.35 | |
 | Delta Faucet Other Battery Box - Gen 3 Solenoid | RP78389 | $35.30 | |
| Delta Faucet Other Filter | RP93410 | $19.05 | |
 | Delta Faucet Other Friction Spacers & Clip - Kitchen | RP60923 | $24.35 | |
 | Delta Faucet Other Hose Assembly | RP80522 | $91.00 | |
 | Delta Faucet Other Hose Weight Assembly | RP80523 | $53.40 | |
 | Delta Faucet Other Magnet Replacement Kit | RP80977 | $69.80 | |
 | Delta Faucet Other Mounting Hardware | RP92714 | $46.00 | |
 | Delta Faucet Other Nuts & Washers (2) - 500 Series | RP6092 | $18.70 | |
 | Delta Faucet Other O-Ring | RP13938 | $8.25 | |
 | Delta Faucet Other Solenoid Assembly | EP92546 | $260.00 | |
 | Delta Faucet Other VoiceIQ Module | EP100855 | $250.85 | |
 | Delta Faucet Pilar Check Valves - Chrome | RP53468 | $95.25 | |
 | Delta Faucet PivotalE Valve Cartridge - Chrome | RP91902 | $104.55 | |
 | Delta Faucet RenaldiE | Escutcheon - Lumicoat Champagne Bronze | RP100845CZPR | $193.65 | |
 | Delta Faucet Signature Quick-Connect Hose Clip | RP60911 | $18.95 | |
| Delta Faucet Stryke Long Mounting Nut - Handle WM Tub Filler - Other Finishes | RP100336 | $44.10 | |
 | Delta Faucet Tesla Bathroom Spring - Touch Contact | RP78741 | $33.45 | |
 | Delta Faucet Victorian Stabilization Plate | RP37490 | $29.40 | |
