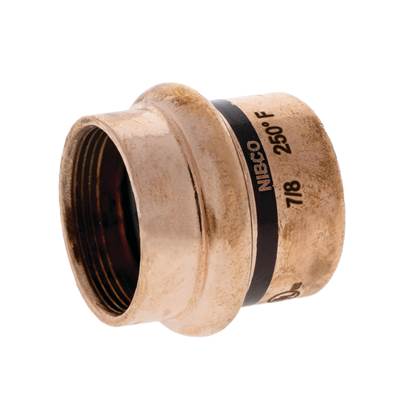

Nibco PC9617 2-1/8″ OD Press Tube Cap in Copper
Item #: 9172900RPC
UPC: 039923444547
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Hose Cap Or Plug
- Material: Copper
- Length: 2.57"
- Width: 2.57"
- Height: 1.84"
- Weight: 0.49 lbs.
Features
- Operating pressure 700 psi max
- Temperature range -40 degree F to 250 degree F
- Vacuum: 500mi
- Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434
- Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A
- UL 207 Recognized to 700 PSI
- Complies with: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
Specifications
Product Specifications
| Shipping | L:10"x W:6.5"x H:1.84" 0.49 lbs. |
|---|---|
| Applications | Air Conditioning/Refrigeration (ACR), HVAC, Glycol |
| Product Type | Cap |
| Figure Number | PC9617 |
| End Connection | Press |
| Nominal Size 1 | 2-1/8 in OD |
| Nominal Size 2 | 2-1/8 in OD |
| Type Of Fitting | Cap |
| All Type Of Item | Fitting |
| Nominal Pipe Size | 2-1/8 |
| Online Product ID | 17358799 |
| Potable Water Code | LL Compliant not NSF/ANSI 372 |
| Minimum Order Quantity | 1 |
| Metal End Connection Type | Prs |
Dimensions
| Width | 2.57" |
|---|---|
| Height | 1.84" |
| Length | 2.57" |
| Weight | 0.49 lbs. |
| Size Dimensions | 2-1/8 in OD x 2-1/8 in OD |
Materials
| Material | Copper |
|---|---|
| All Basic Material | Copper |
