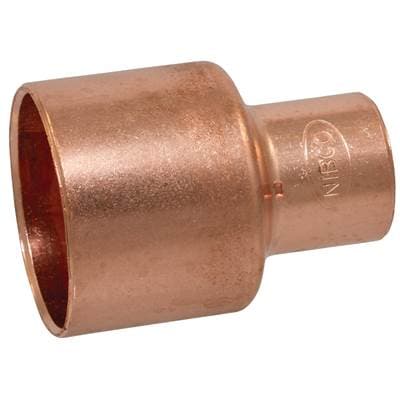

Nibco Reducer - 1-1/2″ x 3/4″ - Fitting x Copper in Wrought Copper
Item #: 9008850
UPC: 039923320940
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Reducer
- Material: Copper
- Length: 2.28"
- Width: 1.63"
- Height: 1.63"
- Weight: 0.2 lbs.
Features
- Lead-free
- Dezincification resistant
- ASTM B75 Alloy C12200
- NSF/ANSI/CAN-61 and 372
- Material and workmanship per ASME B16.22
- Material, workmanship and dimensions per MSS SP-104
- Material, workmanship and dimensions per MSS SP-109 (5'' to 8'')
- NFPA 99 Health Care Facilities Gas and Vacuum Systems and the Compressed Gas Association, Pamphlet G4.1 (medical gas)
- UL 207 Recognized to 700 PSI (select diameters)
Specifications
Product Specifications
| Shipping | L:5.13"x W:3.63"x H:6.75" 2.19 lbs. |
|---|---|
| Applications | Commercial Plumbing, Compressed Air, Fire Protection, Heating, HVAC, Industrial, Irrigation, Lead Free, Med-gas, Residential Plumbing |
| Product Type | Reducer |
| Figure Number | 600-2 |
| End Connection | Solder |
| Nominal Size 1 | 1-1/2 in |
| Nominal Size 2 | 3/4 in |
| Type Of Fitting | Fitting Reducer |
| All Type Of Item | Fitting |
| Nominal Pipe Size | 1-1/2 X 3/4 |
| Online Product ID | 4156150 |
| Low Lead Compliant | Yes |
| Potable Water Code | LL Compliant NSF/ANSI 372 |
| Minimum Order Quantity | 10 |
| Metal End Connection Type | Ftg x C |
Dimensions
| Width | 1.63" |
|---|---|
| Height | 1.63" |
| Length | 2.28" |
| Weight | 0.2 lbs. |
| Ship Width | 10.5000 |
| Ship Height | 14.6300 |
| Ship Length | 18.5000 |
| Ship Weight | 45.5900 |
| Size Dimensions | 1-1/2 in x 3/4 in |
Materials
| Material | Copper |
|---|---|
| All Basic Material | Copper |
