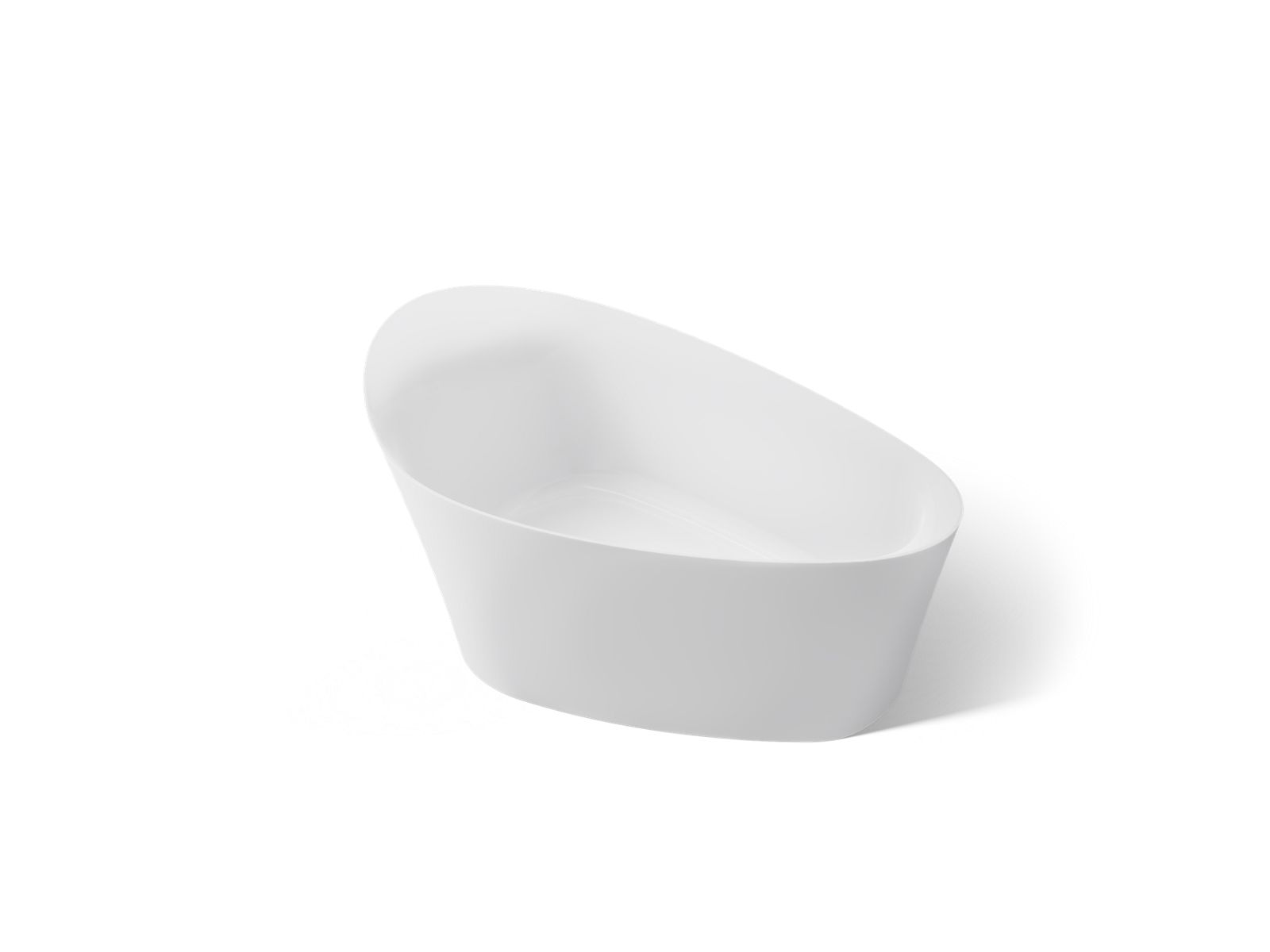

Kohler Veil Freestanding Soaking Bath - 65-3/8″ x 36-15/16″ in White
Item #: 8331-0
UPC: 885612593290
Free Shipping on LTL freight orders over $99
Overview
Veil® 65-3/8" x 36-15/16” freestanding bath
65-3/8" x 36-15/16” freestanding bath
Features
- Freestanding design creates a striking focal point in your bathing area
- 16" (406 mm) soaking depth
- Integral lumbar support
- Slotted overflow allows for deep soaking
- Center toe-tap drain with KOHLER Lithocast® cover
- Coordinates with other products in the Veil collection
Specifications
Product Specifications
| GTIN | 00885612593290 |
|---|---|
| Shape | Oval |
| Finish | White |
| Shipping | L:70.47"x W:40.95"x H:30.67" 455.56 lbs. |
| Glb Path | /api/models/kohler/8331-0.glb |
| Oversized | Yes |
| Collection | Veil |
| Vntana Uuid | 3b956d8d-03e4-4b3c-9834-2c57fb504369 |
| Product Type | Free Standing Soaking Tub |
| Product Style | Contemporary |
| Product Warranty | KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty |
| Introduction Date | 6/30/2017 |
| Online Product ID | 2922283 |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 36.92" |
|---|---|
| Height | 23.55" |
| Length | 65.38" |
| Weight | 455.556 |
Materials
| Material | Lithocast |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #8331-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Arm Body | K-1432864 | $7.40 | |
 | Cartridge Assembly for Drain | K-1068204 | $10.65 | |
 | Drain flange | K-1143285 | $215.80 | |
 | Gasket, Drain | K-1143283 | $10.71 | |
 | Kohler Genuine Parts Brass TUBE - Polished Chrome | K-1456307-CP | $22.30 | |

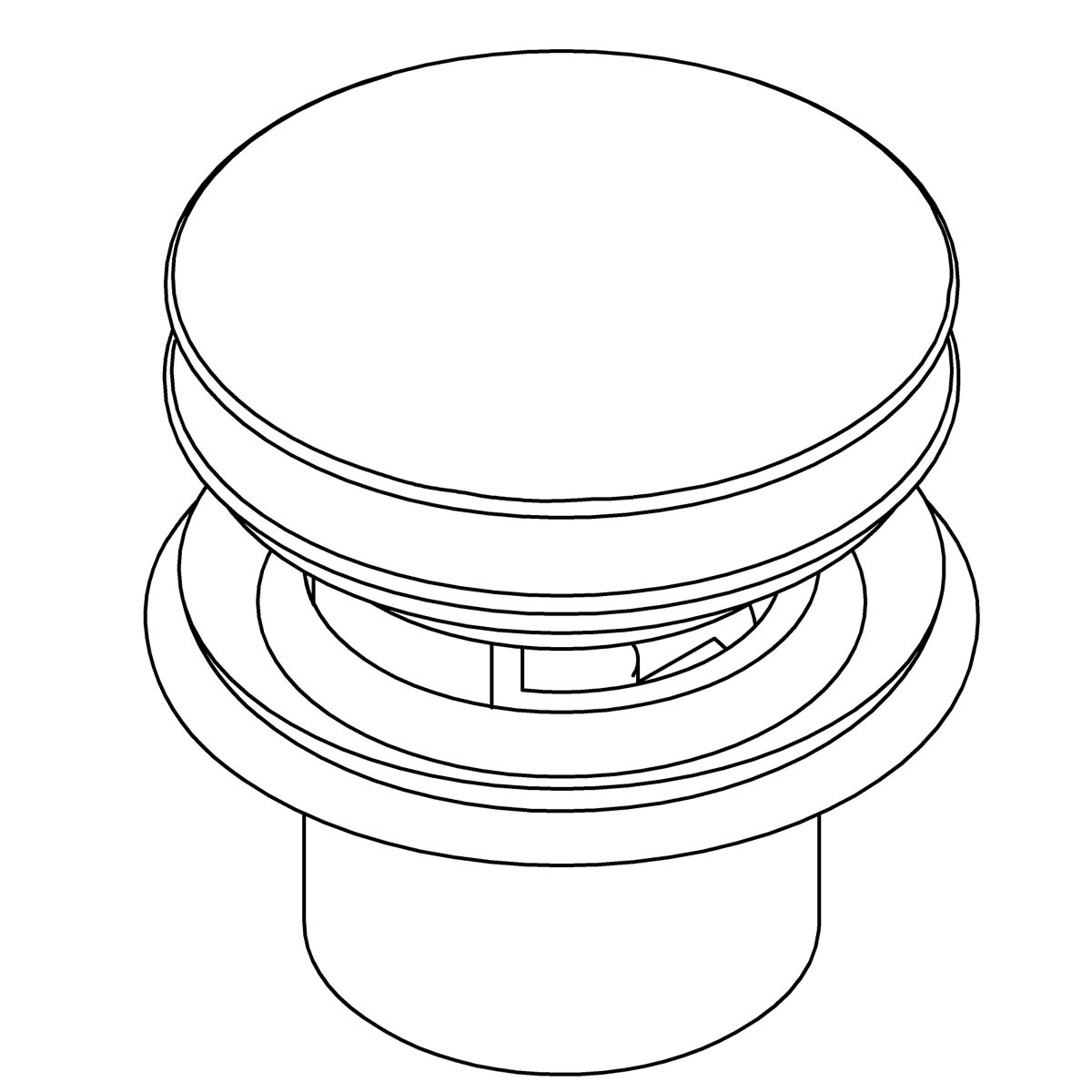

 | Kohler Genuine Parts Drain Assembly - White White | K-1381626-0 | $109.37 | |
 | Kohler Genuine Parts Drain Assembly, Snapflo KIT Option | K-1485240 | $57.65 | |
 | Kohler Genuine Parts Drain Cover Assembly - White | K-1293034-0 | $356.04 | |
 | Kohler Genuine Parts Gasket, Drain Bottom | K-1143288 | $6.12 | |
 | Kohler Genuine Parts Gasket, Drain Flange Insert | K-1143287 | $7.95 | |
 | Kohler Genuine Parts Gasket, Drain Spiral | K-1143290 | $17.29 | |
 | Kohler Genuine Parts Gasket, Drain Spiral, Brass PIPE | K-1146812 | $22.41 | |
 | Kohler Genuine Parts PUSH Button CAP - White White | K-1433819-0 | $3.60 | |
 | Kohler Genuine Parts SET Screw, M5-0.8mm X 6MM | K-1205068 | $4.60 | |
 | Kohler Genuine Parts Screw, 6-32 X 0.3125, Fillister HEAD | K-1456306 | $1.55 | |
 | Kohler Genuine Parts Snapflo EASY Install KIT - White White | K-1475081-0 | $62.10 | |
 | Kohler Genuine Parts Stopper - Blackened Bronze Blackened Bronze | K-1068202-2BL | $74.95 | |
 | Molded Rubber Seal | K-1433822 | $1.30 | |
 | Nut, Drain | K-1143289 | $31.47 | |
 | PVC Adapter Kit | K-1523032 | $4.15 | |
| — | — | 1432863 | — | |
