Kohler Rite-Temp Pressure-Balancing Cartridge - 5.0 GPM
Item #: 8305-NA
UPC: 885612369307
Finish: Not Applicable
Offered in 2 colors
Free Shipping on LTL freight orders over $99
Overview
At Kohler, we believe a shower should transform you. The KOHLER® Rite-Temp valve system sets standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The KOHLER® Rite-Temp pressure-balance cartridge can be ordered separately or as a complete valve and cartridge kit.

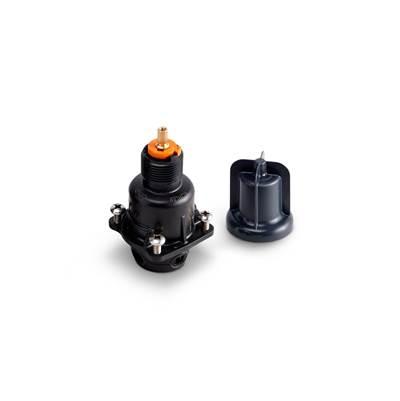

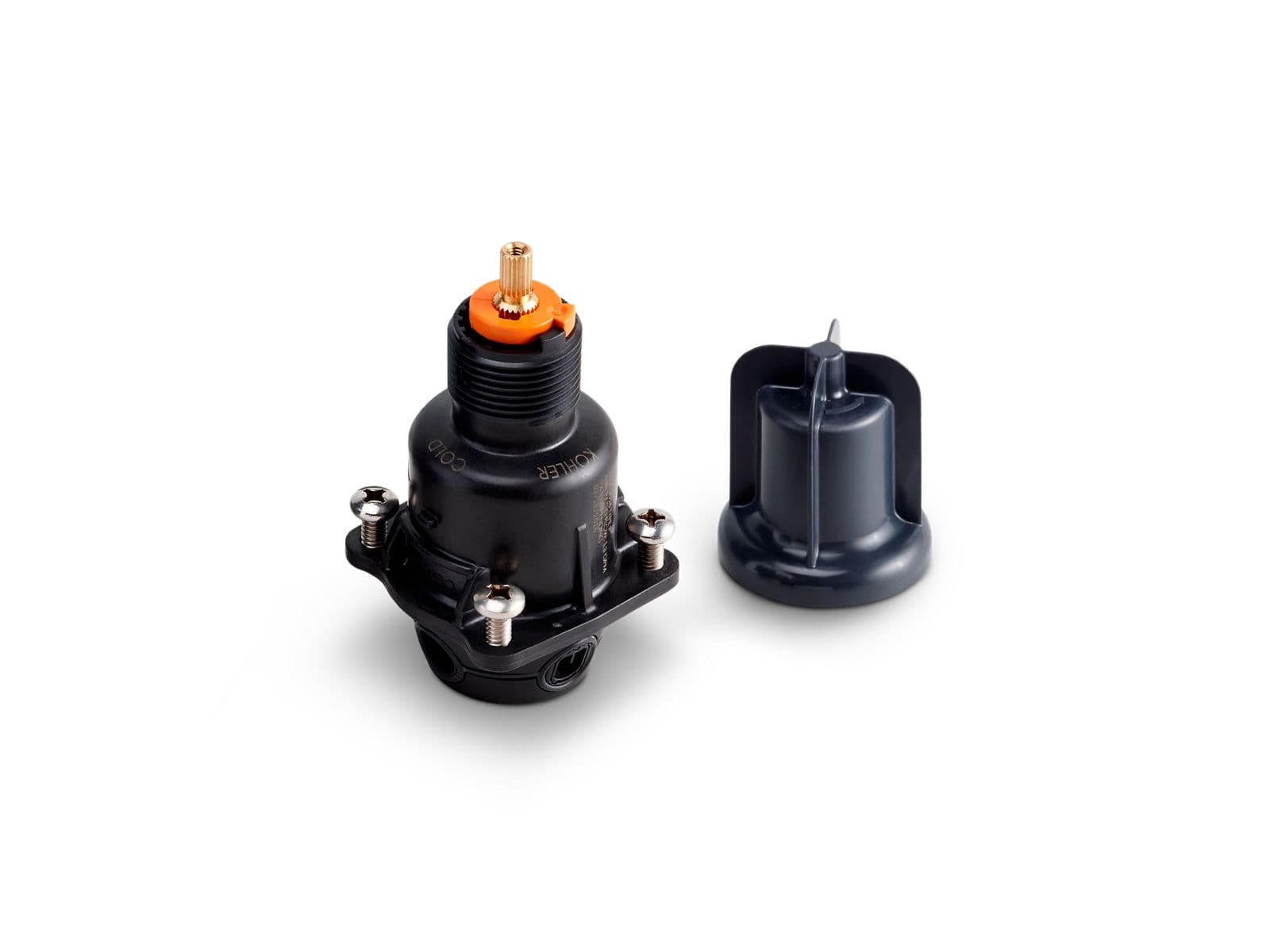

Rite-Temp® Pressure-balancing cartridge
Features
- Includes pressure balance cartridge and mud guard
- 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
- Single lever design cycles from off through cold to hot
- Antiscald protection
- One-piece cartridge design simplifies installation and maintenance
- Adjustable high-temperature limit stop to control maximum water temperature
- Requires trim and any K-8300 valve body to complete installation (sold separately)
- Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations
Specifications
Product Specifications
| GTIN | 00885612369307 |
|---|---|
| Finish | Not Applicable |
| Shipping | L:5.05"x W:2.55"x H:2.55" 0.5 lbs. |
| Collection | Rite-Temp |
| Product Type | Cartridge |
| Product Style | Transitional |
| Flow Rate (GPM) | 5 gal/min |
| Product Warranty | KOHLER® Faucet Lifetime Limited Warranty |
| Introduction Date | 11/14/2016 |
| Online Product ID | 2922282 |
Dimensions
| Width | 2.5" |
|---|---|
| Height | 2.515" |
| Length | 4.65" |
| Weight | 0.495 |
Materials
| Material | Brass/Plastic |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
Other Documents
Replacement Parts
Genuine Kohler replacement parts compatible with Item #8305-NA.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Aspirator | K-1206059 | $2.50 | |
 | Kohler Genuine Parts Cartridge, Single Sequential | K-GP800881 | $74.25 | |
 | Kohler Genuine Parts Check/stop Service KIT | K-1229168 | $30.45 | |
 | Kohler Genuine Parts KIT, Cartridge O-rings | K-1288537 | $3.70 | |
 | Kohler Genuine Parts KIT, Screws 1/4-20 X 5/8 | K-1288536 | $2.55 | |
 | Kohler Genuine Parts Kohler | K-1247599 | $2.35 | |
 | Kohler Genuine Parts Rough-in Guide, WITH Stops | K-1235390 | $3.25 | |
 | Kohler Genuine Parts Rough-in Guide, Without Stops | K-1235391 | $3.25 | |
 | Mudguard | K-1225465 | $2.30 | |
 | Screw Kit | K-1258409 | $2.70 | |
