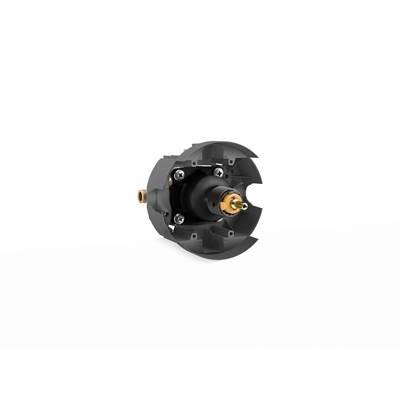

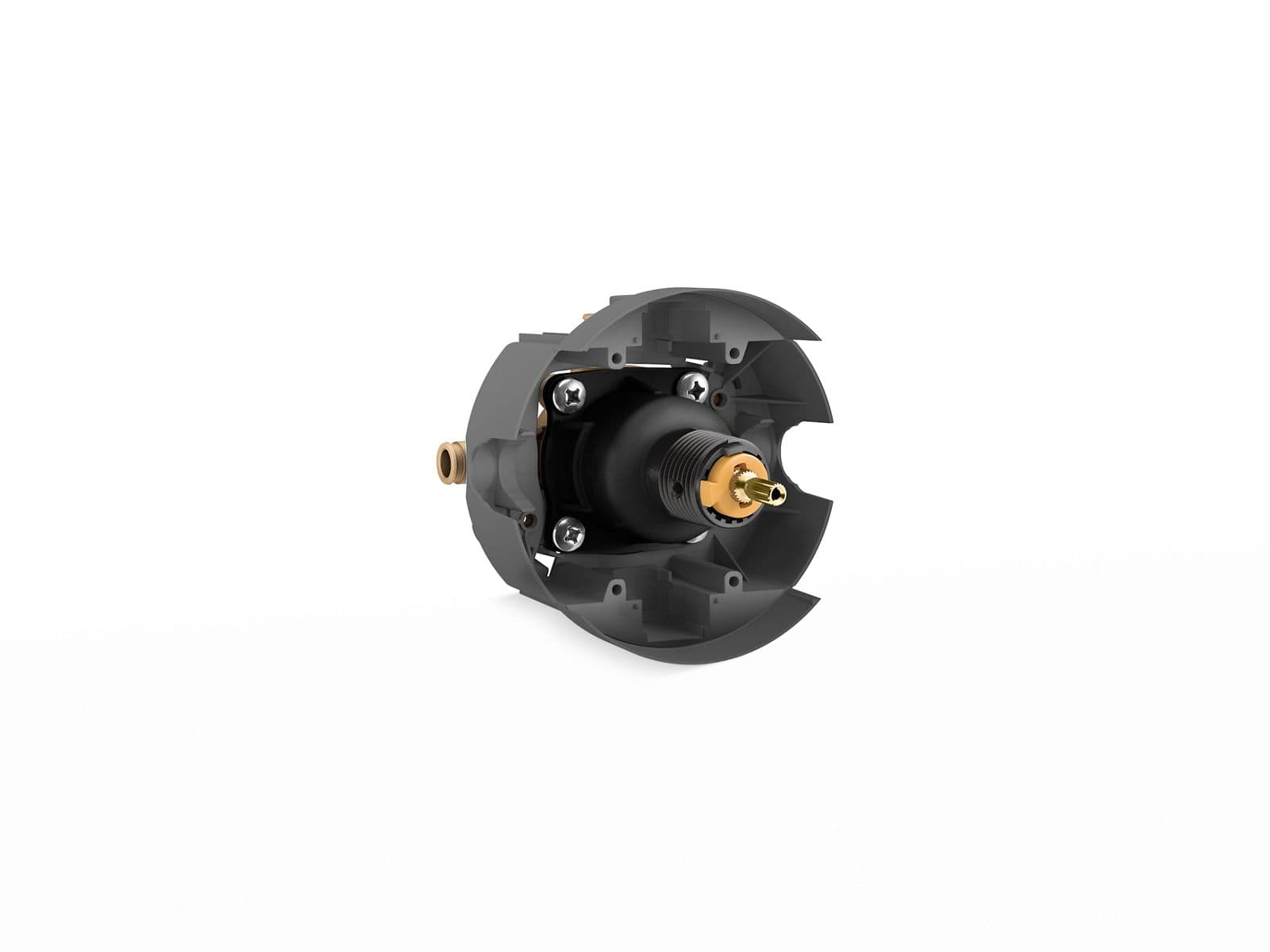

Kohler Rite-Temp Faucet Rough-In Valve - Pressure-Balance - 1/2″ PEX Expansion - 5.0 GPM
Item #: 8304-UXSH-NA
UPC: 195711270887
Free Shipping on LTL freight orders over $99
Overview
The innovative KOHLER® Rite-Temp valve system sets standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. This Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your trim and finish from the comprehensive KOHLER® design portfolio.
Rite-Temp® Pressure-balancing valve body and cartridge kit
Features
- Includes valve body, pressure balance cartridge, rough-in guide, and mudguard
- 1/2" PEX Expansion (F1960 style) inlets
- 5.0 gpm (18.9 lpm) maximum flow rate at 45 psi (3.1 bar)
- Single lever design cycles from off through cold to hot
- One-piece cartridge design simplifies installation and maintenance
- Adjustable high-temperature limit stop to control maximum water temperature
- Antiscald protection
- Pressure-balancing diaphragm technology maintains outlet temperature within +/-3°F during water pressure fluctuations
- Requires valve trim to complete installation (sold separately)
Specifications
Product Specifications
| GTIN | 00195711270887 |
|---|---|
| Finish | Not Applicable |
| Shipping | L:12.500"x W:11.250"x H:6.500" 4.046 lbs. |
| Warranty | KOHLER® Faucet Lifetime Limited Warranty |
| Collection | Rite-Temp |
| Product Type | Faucet Rough In Valve |
| Online Product ID | 17082671 |
Dimensions
| Width | 5" |
|---|---|
| Height | 5" |
| Length | 4.8" |
| Weight | 4.046 |
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
Other Documents
Replacement Parts
Genuine Kohler replacement parts compatible with Item #8304-UXSH-NA.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Aspirator | K-1206059 | $2.50 | |
 | Kohler Genuine Parts Cartridge, Single Sequential | K-GP800881 | $74.25 | |
 | Kohler Genuine Parts Check/stop Service KIT | K-1229168 | $30.45 | |
 | Kohler Genuine Parts KIT, Cartridge O-rings | K-1288537 | $3.70 | |
 | Kohler Genuine Parts KIT, Screws 1/4-20 X 5/8 | K-1288536 | $2.55 | |
 | Kohler Genuine Parts Kohler | K-1247599 | $2.35 | |
 | Kohler Genuine Parts Rough-in Guide, WITH Stops | K-1235390 | $3.25 | |
 | Kohler Genuine Parts Rough-in Guide, Without Stops | K-1235391 | $3.25 | |
 | Mudguard | K-1225465 | $2.30 | |
 | Screw Kit | K-1258409 | $2.70 | |
| — | — | 1638961 | — | |
