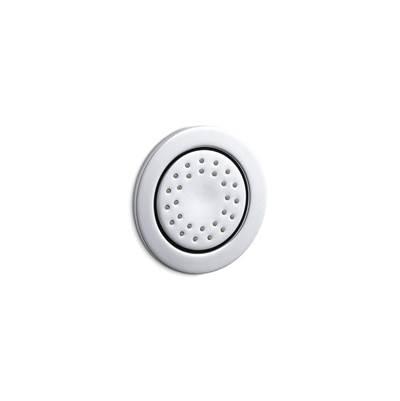

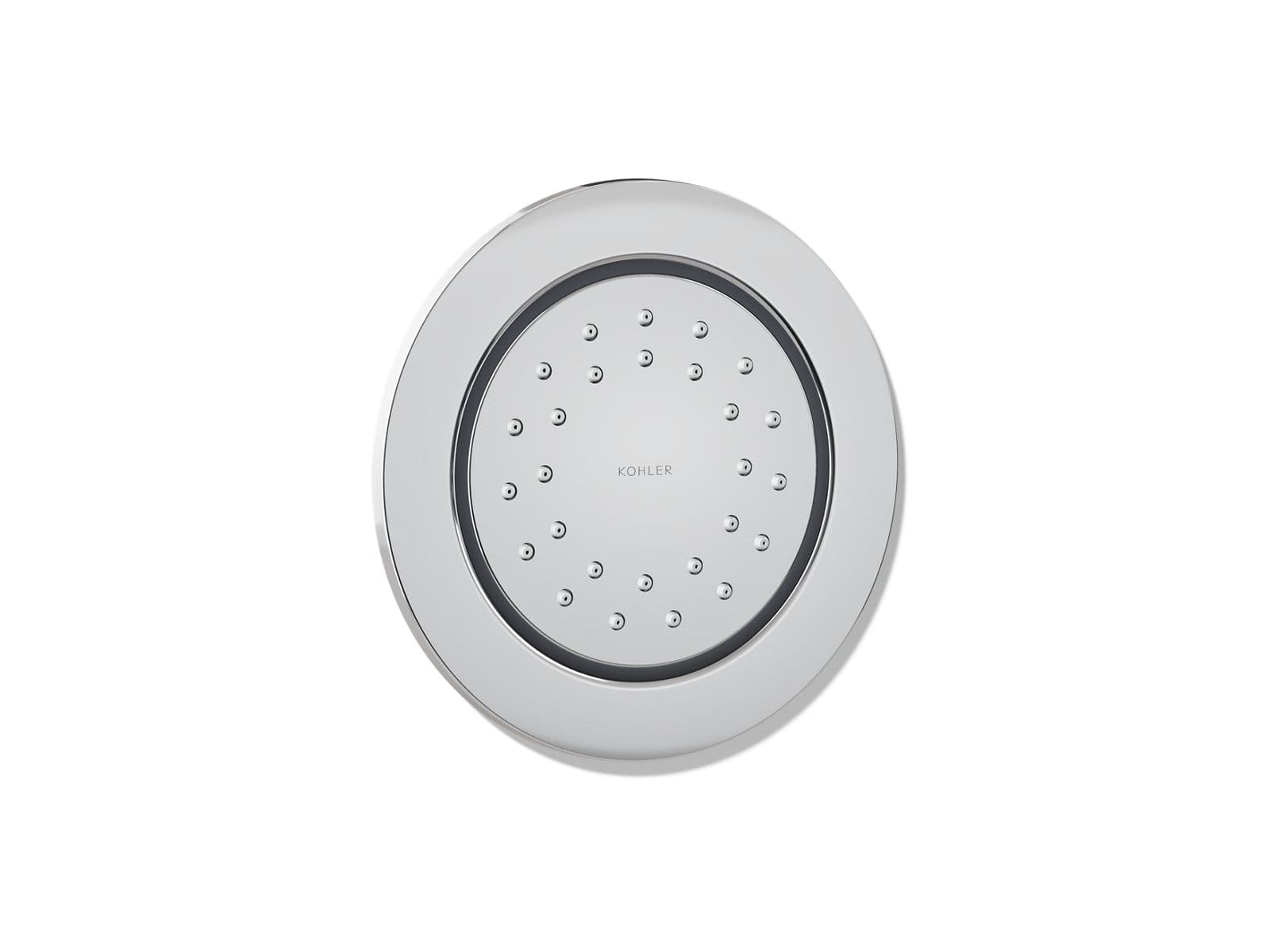

Kohler WaterTile Round 27-Nozzle Single-Function Bodyspray - 2.0 GPM in Polished Chrome
Item #: 8013-AK-CP
UPC: 885612616678
Overview
The allure of KOHLER® WaterTile body sprays is in both their subtle, low-profile design and their profound performance. This WaterTile round wall-mount or ceiling mount body spray uses Katalyst® air-induction technology for a completely indulgent showering experience. With a new nozzle pattern and internal waterway design, Katalyst technology maximizes every water drop and creates a richer, more intense flow of water that heightens your sensory experience. By infusing two liters of air per minute, Katalyst delivers a powerful, voluptuous spray that clings to the body with larger, fuller water drops.
WaterTile® Round 27-nozzle single-function body spray, 2.0 gpm
Features
- MasterClean™ sprayface features an easy-to-clean surface that withstands mineral buildup and maximizes spray performance
- 1/2" NPT connection
- Single-function 27-nozzle body spray delivers a stimulating spray
- Fully adjustable sprayface pivots for targeted hydromassage
- Low-profile design complements any decor
- 2.0 gpm (7.6 lpm) maximum flow rate at 80 psi (5.5 bar)
- 1/2" NPT connection
Specifications
Product Specifications
| GTIN | 00885612616678 |
|---|---|
| Shape | Round |
| Finish | Polished Chrome |
| CALGreen | Yes |
| Shipping | L:10.98"x W:5"x H:3.86" 1.86 lbs. |
| Collection | WaterTile |
| Product Type | Bodyspray |
| Product Style | Transitional |
| Asme Standards | ASME A112.18.1/CSA B125.1 |
| Flow Rate (GPM) | 2 gal/min |
| Product Warranty | KOHLER® Faucet Lifetime Limited Warranty |
| Introduction Date | 11/20/2017 |
| Online Product ID | 4797600 |
Dimensions
| Width | 4.875" |
|---|---|
| Height | 4.875" |
| Length | 3.125" |
| Weight | 1.863 |
| Ship Width | 9.7500 |
| Ship Height | 4.0000 |
| Ship Length | 5.2500 |
| Ship Weight | 1.8500 |
Materials
| Material | Brass |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #8013-AK-CP.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Assembly, Adapter | K-1299089 | $26.95 | |
 | Gasket | K-1074027 | $2.30 | |
 | Kohler Genuine Parts ASM, Watertile Service | K-1307349 | $58.30 | |
 | Kohler Genuine Parts Assembly, LEAK Shield | K-1087182 | $12.05 | |
 | Kohler Genuine Parts Assy, Escutcheon - Polished Chrome Polished Chrome | K-1081347-CP | $37.15 | |
 | Kohler Genuine Parts HEX BIT, 11 MM X 50.8 MM | K-1071652 | $5.60 | |
 | Kohler Genuine Parts KIT, Membrane, 27 Nozzle | K-1083258 | $20.85 | |
 | Kohler Genuine Parts KIT, Membrane, 54 Nozzle | K-1083260 | $16.55 | |
 | Kohler Genuine Parts KIT, Spray Head, 54 Nozzle | K-1092606 | $16.50 | |
 | Kohler Genuine Parts Spray Face, 27 Nozzle - Vibrant Moderne Brushed Gold Brushed Chrome | K-1066717-G | $51.45 | |
 | Kohler Genuine Parts Spray Face, 54 Nozzle - Polished Chrome Polished Chrome | K-1066723-CP | $43.20 | |
 | Mudguard | K-1074033 | $2.45 | |
 | Oring | K-1074032 | $5.90 | |
 | Ring, Snap | K-1075520 | $2.30 | |
 | Set Screw | K-1039745 | $2.90 | |
 | Tool, Assembly | K-1074034 | $4.35 | |
 | Washer Screen | K-1051681 | $11.40 | |
| — | — | 1278057 | — | |
