Kohler Reach One-Piece Elongated Toilet - 1.28 GPF in White
Item #: 78080-RA-0
UPC: 885612814524
Free Shipping on LTL freight orders over $99
Overview
At Kohler, we push flushing power and toilet design to the leading edge. A perfect union of practicality and aesthetics, the KOHLER® Reach toilet features a modern design with skirted trapway that's sleek and easy to keep clean. Installation is easy with the ReadyLock® system: the skirted trapway installs to the floor flange and attaches to the one-piece elongated toilet, eliminating the need to drill holes while offering the same secure installation as non-skirted toilets.

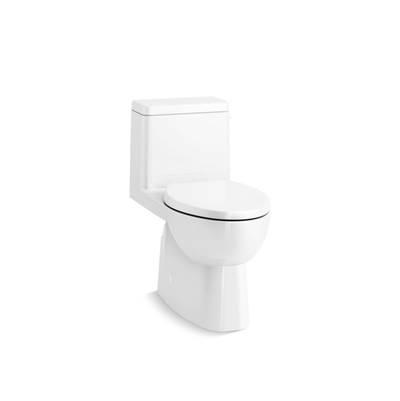

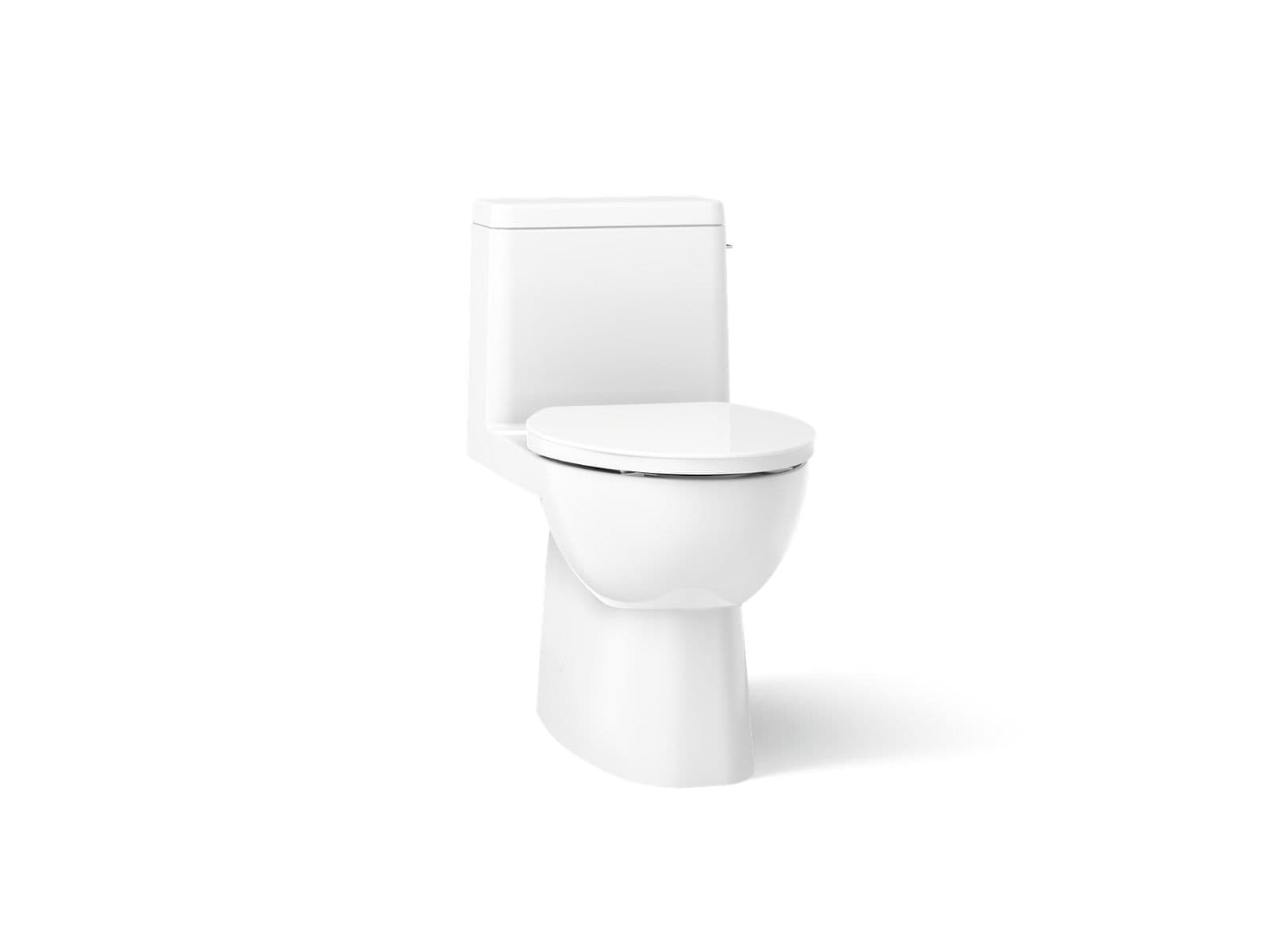

Reach® One-piece compact elongated toilet with skirted trapway, 1.28 gpf
Features
- One-piece toilets integrate the tank and bowl into a seamless, easy-to-clean design
- Elongated bowl offers added room and comfort
- Skirted trapway simplifies cleaning
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
- 1.28 gpf (4.8 lpf)
- Right-hand Polished Chrome trip lever
- 2-1/8" (54 mm) glazed trapway
- Includes Reveal® Quiet-Close™ seat
- AquaPiston® canister optimizes the flow out of the tank, harnessing gravity and the natural, powerful reducing cascade of water to increase the power and effectiveness of the flush
- Easy-to-flush canister design requires less force to actuate than a 3" (76 mm) flapper, and has 90% less exposed seal material which resists conditions that cause wear, tear, shrinkage and swelling
- Patented ReadyLock® installation system, a simple solution for skirted toilets, saves time, hassle, and eliminates the need to drill into the floor for standard 12" (305 mm) rough-in
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| GTIN | 00885612814524 |
| Finish | White |
| Trapway | Skirted |
| CALGreen | Yes |
| Shipping | L:31.31"x W:17.75"x H:30.19" 101.27 lbs. |
| Oversized | Yes |
| Collection | Reach |
| Watersense | Yes |
| Product Type | Toilet |
| Csa Compliant | Yes |
| Product Style | Contemporary |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Introduction Date | 7/17/2020 |
| Online Product ID | 9460759 |
Dimensions
| Width | 14.44" |
|---|---|
| Height | 29" |
| Length | 28.66" |
| Weight | 101.270 |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #78080-RA-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | GASKET KIT | K-1070291 | $2.17 | |
 | Kohler Genuine Parts B5-1271 - Locknut Assy.shank - TWO Piece | K-1057941 | $2.28 | |
 | Kohler Genuine Parts BOLT CAP KIT - White White | K-1225543-0 | $4.30 | |
 | Kohler Genuine Parts CAM Assembly KIT, Angled BASE (pair) | K-1225458 | $48.10 | |
 | Kohler Genuine Parts Canister Valve Assy, Service KIT | K-1396676 | $30.50 | |
 | Kohler Genuine Parts Cover, Tank, Close Coupled - White White | K-1362517-0 | $26.30 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 375A STD Refill | K-1468017 | $18.02 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 400A Series | K-GP1138930 | $20.55 | |
 | Kohler Genuine Parts Gasket, Flush Valve - 1PC Toilets (SO) | K-GP83996 | $7.95 | |
 | Kohler Genuine Parts Hardware Pack, Toilet SEAT | K-1133069 | $6.79 | |
 | Kohler Genuine Parts Reache TRIP Lever, LH Service - Polished Chrome | K-1402650-CP | $37.15 | |
 | Kohler Genuine Parts Reache TRIP Lever, RH Service - Polished Chrome | K-1402651-CP | $37.15 | |
 | Kohler Genuine Parts Trapway Service KIT, Plastic | K-1265858 | $72.79 | |
 | Refill Tube | K-1248138 | $2.28 | |
 | Retainer Nut | K-78132 | $2.28 | |
 | Seal Diaphragm | K-83143 | $5.73 | |
 | Seal for All Single Flush Class 5 and Class 6 Canister Toilets | K-GP1059291 | $7.90 | |
 | Washer, Shank | K-85307 | $2.40 | |
| — | — | 1599988 | — | |
