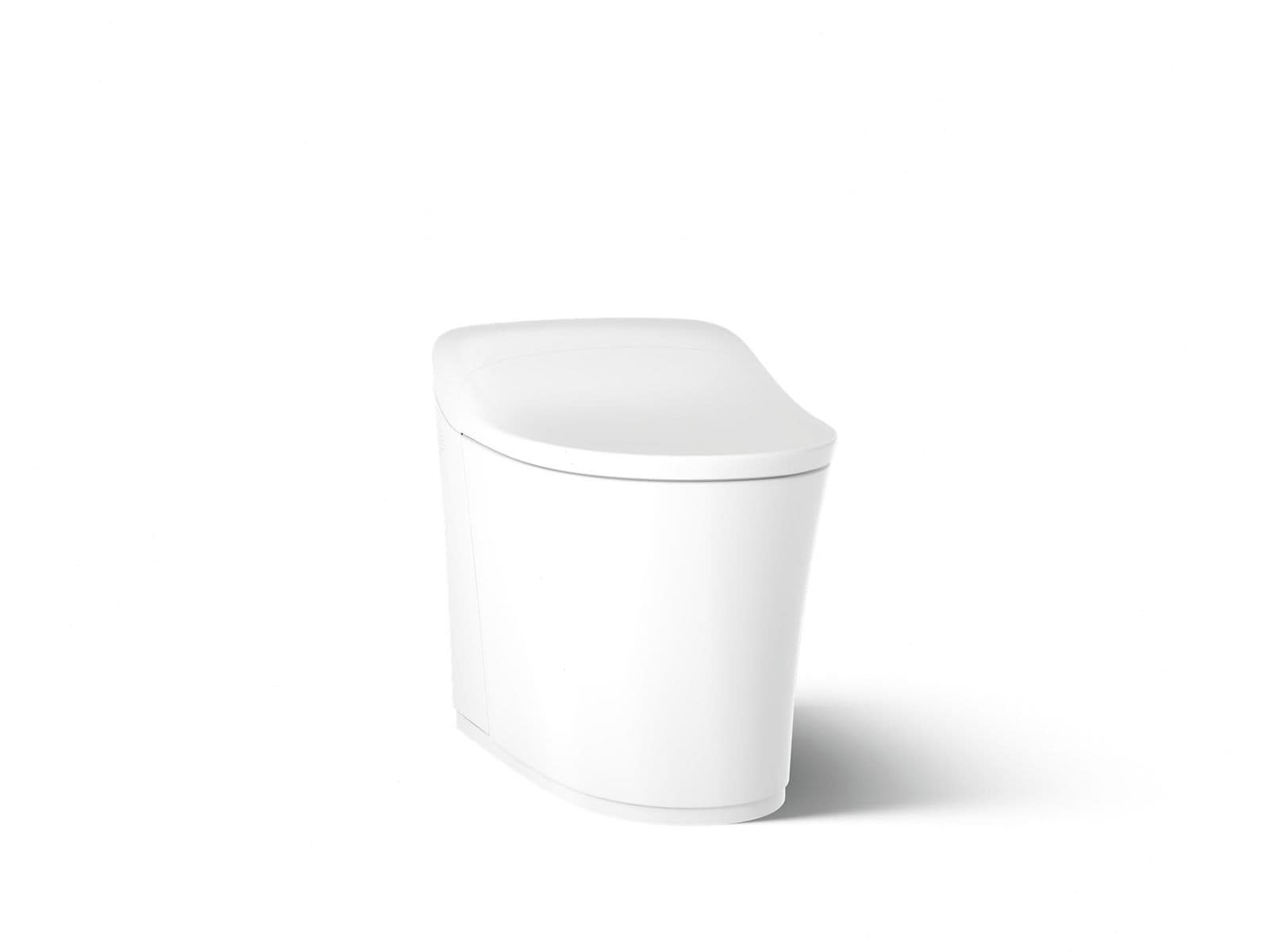

Kohler Eir One Piece Smart Toilet - Elongated Bowl - Dual-Flush in White
Item #: 77795-0
UPC: 885612786876
Finish: White
Offered in 5 colors
Free Shipping on LTL freight orders over $99
Overview
Eir® One-piece elongated smart toilet, dual-flush
One-piece elongated smart toilet, dual-flush
Features
- Compact, streamlined one-piece smart toilet with integrated personal cleansing
- Elongated bowl offers added room and comfort
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
- Dual flush offers a choice of 0.8 or 1.0 gpf (3.0 or 3.8 lpf)
- Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions
- Bowl is automatically misted prior to use for more effective rinsing while flushing
- Front and rear wash modes provide warm water for cleansing
- Self-cleaning function uses UV light and electrolyzed water systems to automatically clean the wand surfaces
- Warm-air drying system
- Automatic deodorization system
- Heated seat with adjustable temperature settings
- Motion-activated, hands-free opening/closing of cover
- Quiet-Close™ elongated lid and seat prevents slamming
- LED lighting illuminates the bowl to serve as a nightlight
- English-language touch-screen LCD remote control
- Emergency flush supports up to 100 flushes during power outage with simple touch-button activation
- Dual-flush technology allows you to choose between a full or partial flush
- Pump-assisted flushing for strong flush performance
- Includes: Complete toilet and seat, power cord, and LCD remote control
- Automatic flushing after every use; flush can also be controlled by the remote control or backup button
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| GTIN | 00885612786876 |
| Finish | White |
| CALGreen | Yes |
| Shipping | L:31.89"x W:22.05"x H:25.19" 113.88 lbs. |
| Glb Path | /api/models/kohler/77795-0rg.glb |
| Oversized | Yes |
| Collection | Eir |
| Watersense | Yes |
| Vntana Uuid | 2738179b-de80-444f-886d-f48425382dab |
| Product Type | One Piece Toilet With Washlet |
| Csa Compliant | Yes |
| Product Style | Contemporary |
| Ansi Compliant | Yes |
| Asme Standards | ASME A112.4.2/CSA B45.16;ASME A112.19.2/CSA B45.1;ASME A112.19.14 |
| Product Warranty | KOHLER® Intelligent Toilet and C3® Cleansing Seat Three-Year Limited Warranty |
| Introduction Date | 11/19/2019 |
| Online Product ID | 7030131 |
Dimensions
| Width | 16.5" |
|---|---|
| Height | 20.56" |
| Length | 27.5" |
| Weight | 113.880 |
| Ship Width | 25.1900 |
| Ship Height | 44.0000 |
| Ship Length | 31.7000 |
| Ship Weight | 116.8000 |
Materials
| Material | Vitreous China |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
PROP 65California Proposition 65 Warning: This product can expose you to chemicals which are known to the State of California to cause cancer and/or birth defects or other reproductive harm. See product packaging for details. www.P65Warnings.ca.gov
Replacement Parts
Genuine Kohler replacement parts compatible with Item #77795-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Body Cover ASM | K-1581857 | $506.00 | |
| — | Body Cover ASM | K-1581856 | $506.00 | |
| — | Body Cover ASM | K-1581855 | $217.80 | |
 | Body Cover Asm | K-1468349 | $247.80 | |
 | Body Cover Asm | K-1468353 | $542.09 | |
 | Bumper,Seat | K-1279114 | $38.93 | |
 | Dock | K-1377074 | $121.79 | |
 | Fan Door | K-1468337 | $4.49 | |

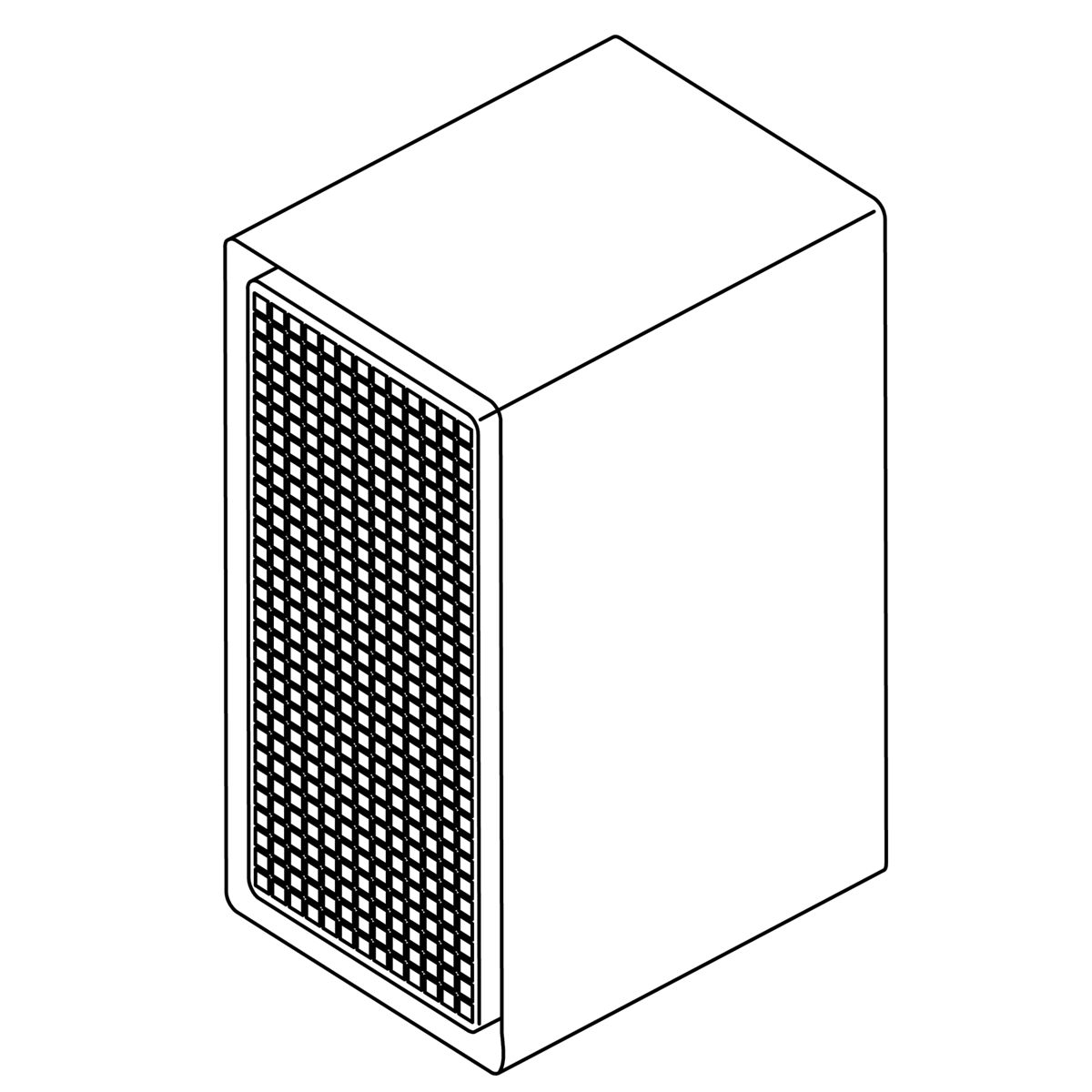

 | Filter Block | K-1142538 | $20.10 | |
 | Kohler Genuine Parts BODY Cover Welding ASSY | K-1468319 | $35.35 | |
 | Kohler Genuine Parts Deodorization Drawer | K-1468142 | $1.68 | |
 | Kohler Genuine Parts Hardware KIT (changing) | K-1242000 | $33.31 | |
| — | Kohler Genuine Parts SIDE Plate, Left,pa | K-1410158 | $28.10 | |
| — | Kohler Genuine Parts SIDE Plate, Right,pa | K-1410156 | $34.90 | |
| — | Kohler Item | K-1277497 | $3.17 | |
| — | Kohler Item | K-1277498 | $3.17 | |
 | Left Bumper | K-1316917 | $3.20 | |
 | Lid Welding Assembly | K-1468315 | $76.05 | |
 | Nozzle Asm | K-1356201 | $45.65 | |
 | Remote Control | K-1377073 | $415.65 | |
 | Remote Control Asm | K-1377075 | $503.05 | |
 | Right Bumper | K-1316918 | $3.20 | |
| — | Top Cover ASM | K-1581853 | $743.60 | |
| — | Top Cover ASM | K-1581854 | $743.60 | |
| — | Top Cover ASM | K-1581852 | $333.30 | |
 | Top Cover Asm | K-1468346 | $309.96 | |
| — | Top Cover Asm | 1468352 | — | |
