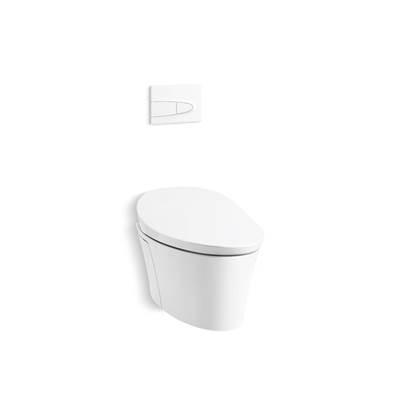

Kohler Veil Wall-hung compact elongated smart toilet bowl, dual-flush - White

Name: Kohler Veil Wall-hung compact elongated smart toilet bowl, dual-flush - White
Brand: Kohler
SKU: 76395-0
Price: 10199.95 USD
Availability: InStock

Item #: 76395-0UPC: 885612514196Finish: White

$11,999.95 MSRP

ADACSAPROP65

Description

The KOHLER® Veil smart wall-hung toilet offers integrated personal cleansing while saving up to 8" of precious bathroom space over KOHLER®'s longest floor-mount models. This Veil one-piece elongated toilet requires a select KOHLER® in-wall tank to complete the system. The mounting hardware is concealed, giving Veil a sleek, seamless look that is incredibly easy to clean. Its sculpted core delivers a suite of precision features finely tuned to provide optimum hygiene and ultimate individual comfort, from personal cleansing to an LED nightlight to hands-free opening, closing and flushing. All of the features are easy to control on a touchscreen LCD remote control. In addition to the remote, you can control the Full and Eco flush using the touchless, Honed White actuator plate (included).

Features

One-piece wall-hung toilet with integrated cleansing functionality
Elongated bowl offers added room and comfort
Mounting hardware is completely concealed for sleek looks and easy cleaning
Dual flush offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf)
Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions
Front and rear wash modes provide warm water for cleansing
Self-cleaning function uses UV light and electrolyzed water systems to automatically clean the wand surfaces
Warm-air drying system with adjustable temperature settings
Automatic deodorization system
Heated seat with adjustable temperature settings
Motion-activated, hands-free opening/closing of cover
Automatically flushes toilet after use
LED lighting illuminates the bowl to serve as a nightlight
English-language touch-screen LCD remote control
Touchless actuator plate in Honed White
Dual-flush technology allows you to choose between a full or partial flush

Specifications

ADAYes

UOMeach

UPC885612514196

GTIN00885612514196

Width17.24"

FinishWhite

Height13.78"

Length26.53"

Weight121.800

MaterialVitreous China

ShippingL:31.61"x W:21.97"x H:22.68" 121.8 lbs.

OversizedYes

CollectionVeil

Product TypeFlush Plate

Csa CompliantYes

Product StyleContemporary

Asme StandardsASME A112.19.2/CSA B45.1;ASME A112.19.14

Prop65 WarningCancer and Reproductive Harm – www.P65Warnings.ca.gov

Product WarrantyKOHLER® Intelligent Toilet and C3® Cleansing Seat Three-Year Limited Warranty

Country of OriginCN

Introduction Date10/26/2016

Online Product ID2922084

Documents

3D Model (3DS)3D Model (DWG)3D Model (DXF)3D Model (OBJ)3D Model (Sketchup)CAD Drawing - Front View CAD Drawing - Front View (DXF)CAD Drawing - Plan View CAD Drawing - Plan View (DXF)CAD Drawing - Side View CAD Drawing - Side View (DXF)Installation Guide Owner's Manual Parts Diagram Revit/BIM Model Specification Sheet

gerhardsstore.comItem #: 76395-0

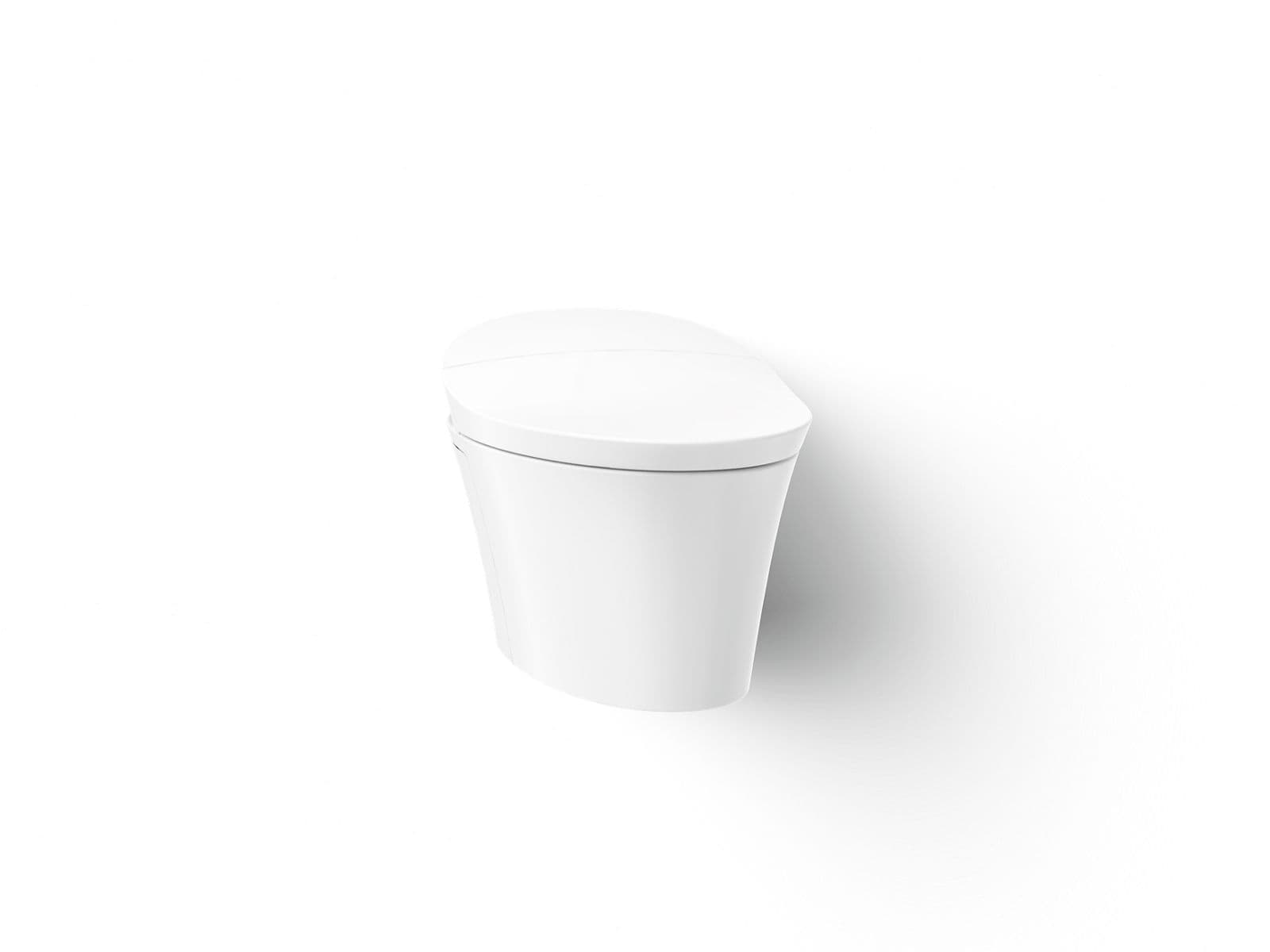

Kohler Veil Wall-hung compact elongated smart toilet bowl, dual-flush - White by Kohler

Hover to zoom

Kohler Veil Wall-hung compact elongated smart toilet bowl, dual-flush - White

Item #: 76395-0

UPC: 885612514196

Finish: White

Veil® Wall-hung compact elongated smart toilet bowl, dual-flush

Features

One-piece wall-hung toilet with integrated cleansing functionality
Elongated bowl offers added room and comfort
Mounting hardware is completely concealed for sleek looks and easy cleaning
Dual flush offers a choice of 0.8 or 1.6 gpf (3.0 or 6.0 lpf)
Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions
Front and rear wash modes provide warm water for cleansing
Self-cleaning function uses UV light and electrolyzed water systems to automatically clean the wand surfaces
Warm-air drying system with adjustable temperature settings
Automatic deodorization system
Heated seat with adjustable temperature settings
Motion-activated, hands-free opening/closing of cover
Automatically flushes toilet after use
LED lighting illuminates the bowl to serve as a nightlight
English-language touch-screen LCD remote control
Touchless actuator plate in Honed White
Dual-flush technology allows you to choose between a full or partial flush

Installation

Wall-hung

Certifications & Compliance

ADA CompliantCSAPROP 65

Warranty	KOHLER® Intelligent Toilet and C3® Cleansing Seat Three-Year Limited Warranty
Country of Origin	CN

Replacement Parts

	Part Number	Description	Price

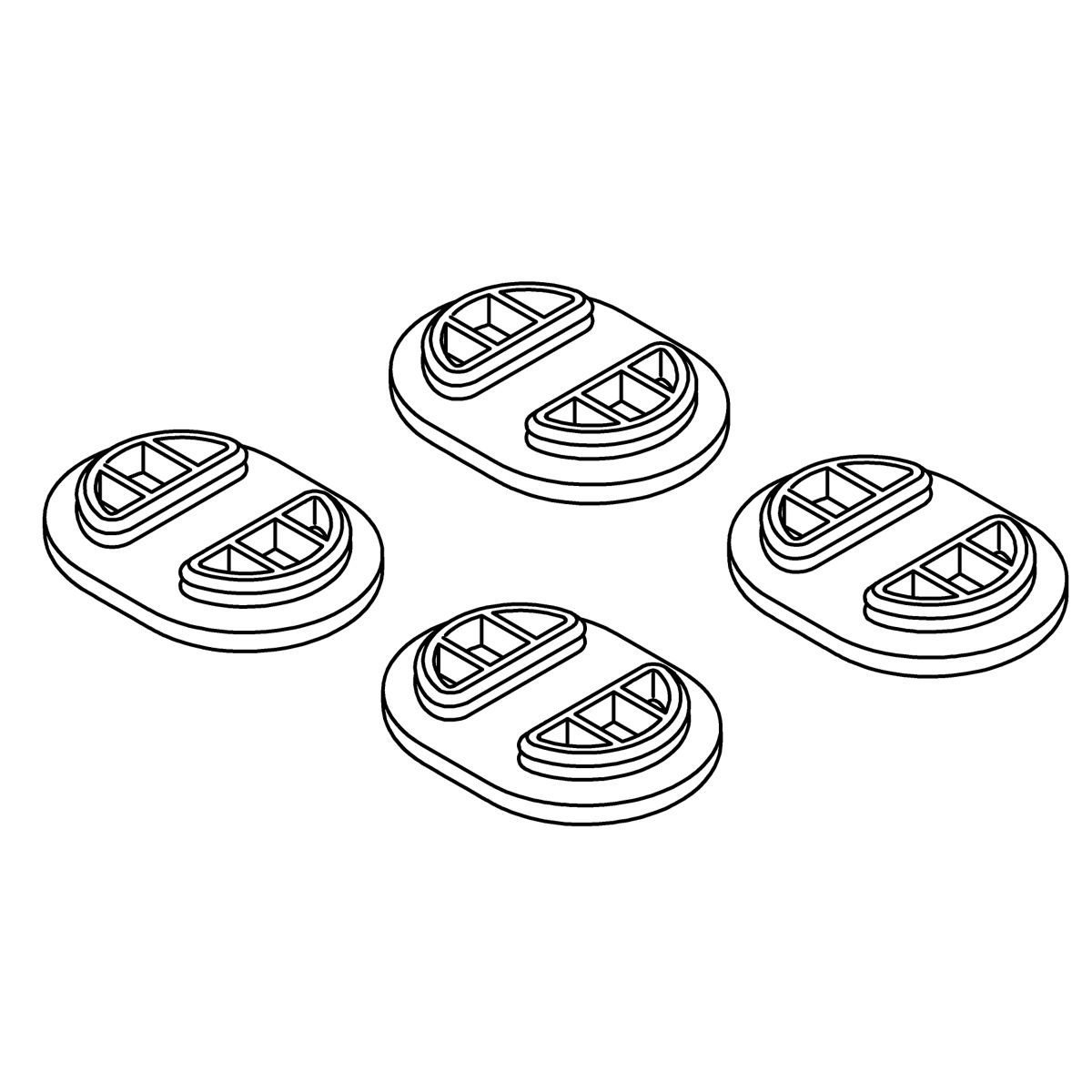

	K-1215310	Bumper	$10.35	View
—	1215302	Deodorization-Drawer	—
—	1215301	Deoforization-Door-Sp	—
	K-1142538	Filter Block	$20.10	View

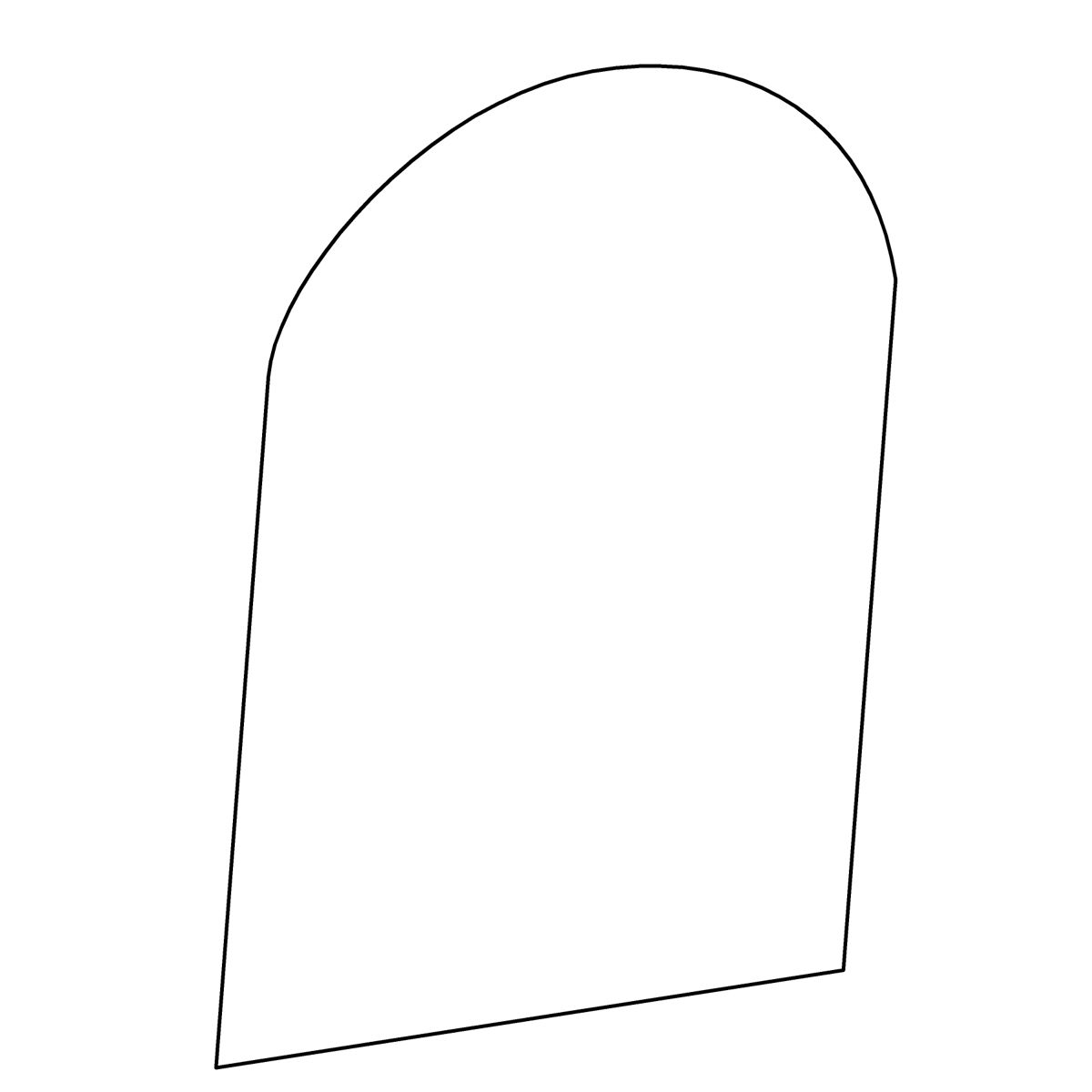

	K-1215504	Hinge Cap	$4.44	View
	K-1115351	Kohler Genuine Parts Decompression Valve Filter	$13.57	View

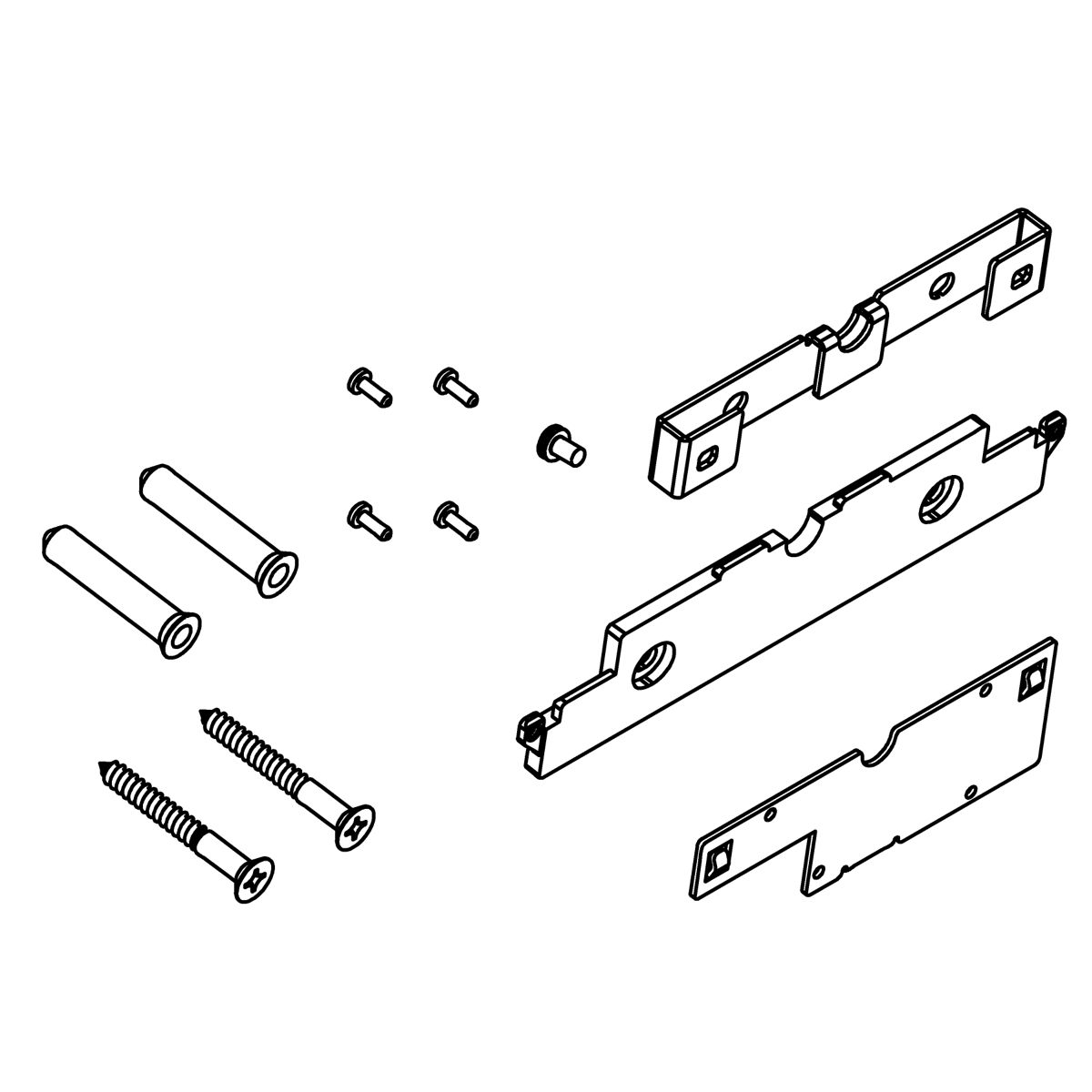

	K-1242000	Kohler Genuine Parts Hardware KIT (changing)	$33.31	View

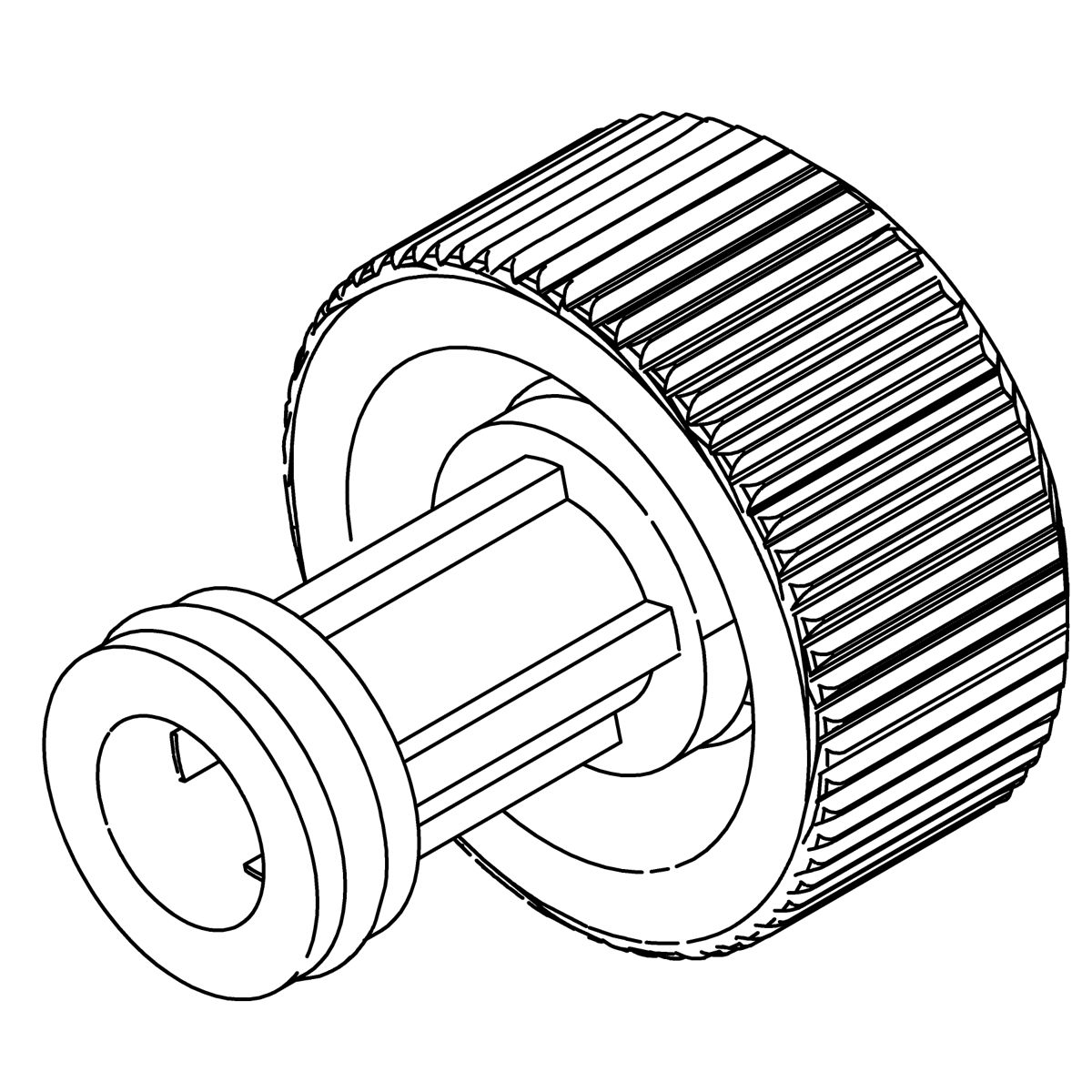

	K-1217019	Kohler Genuine Parts Replacement Filter(120mo)	$3.39	View
	K-1230096-0	Kohler Genuine Parts SIDE Panel, LEFT - White	$12.45	View

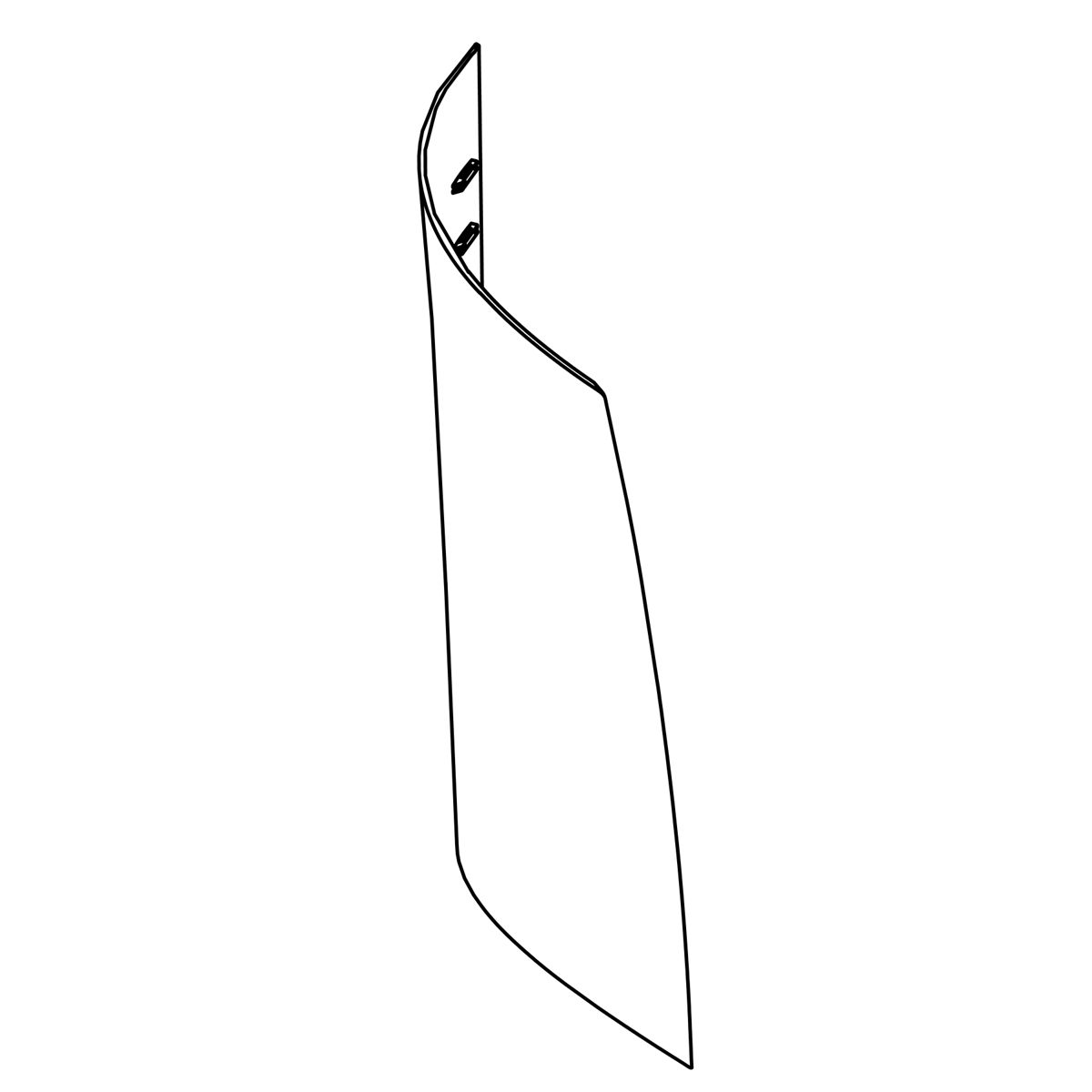

	K-1230097-0	Kohler Genuine Parts SIDE Panel, Right - White	$12.45	View

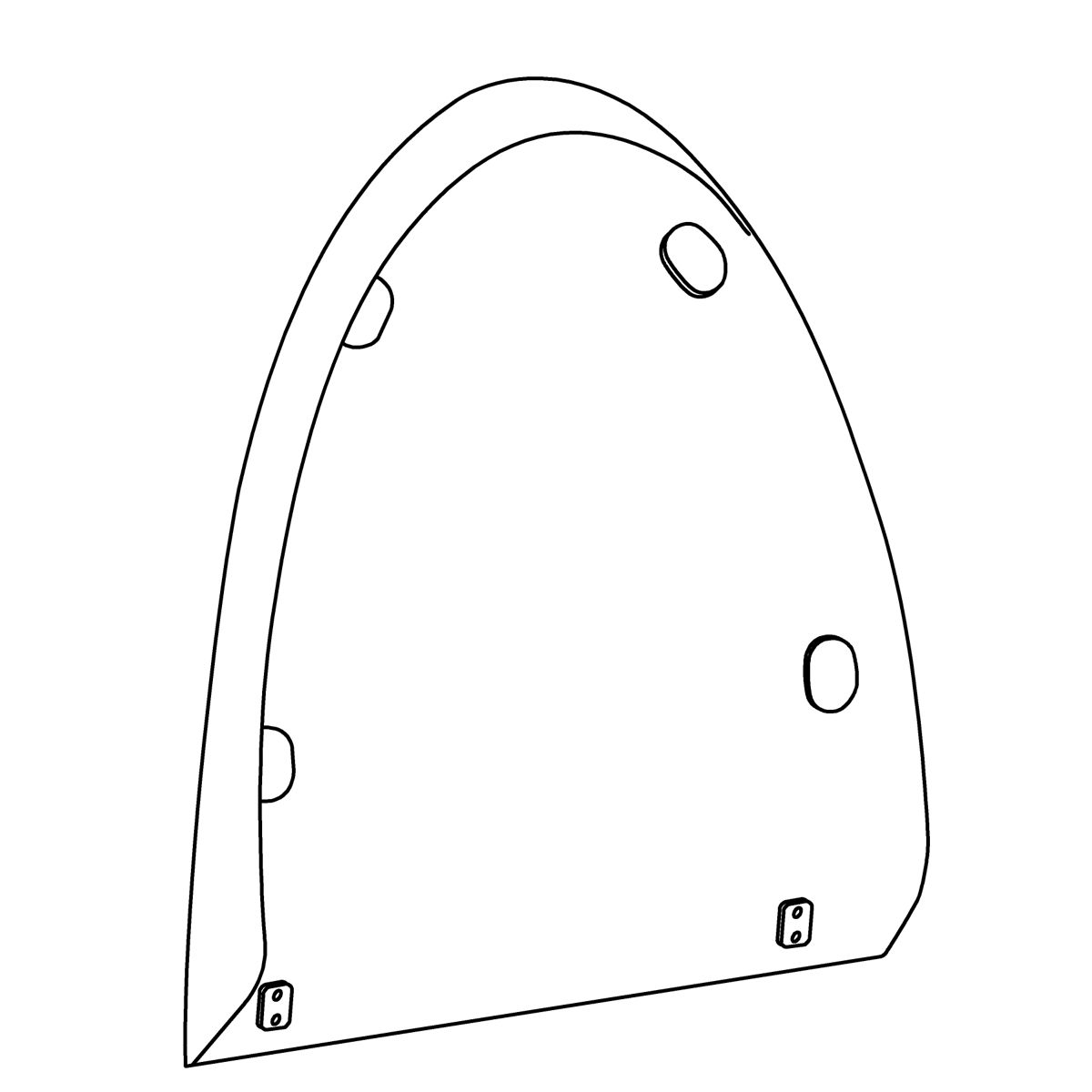

	K-1215381-0	Kohler Genuine Parts TOP Cover Assy-sp - White	$160.39	View

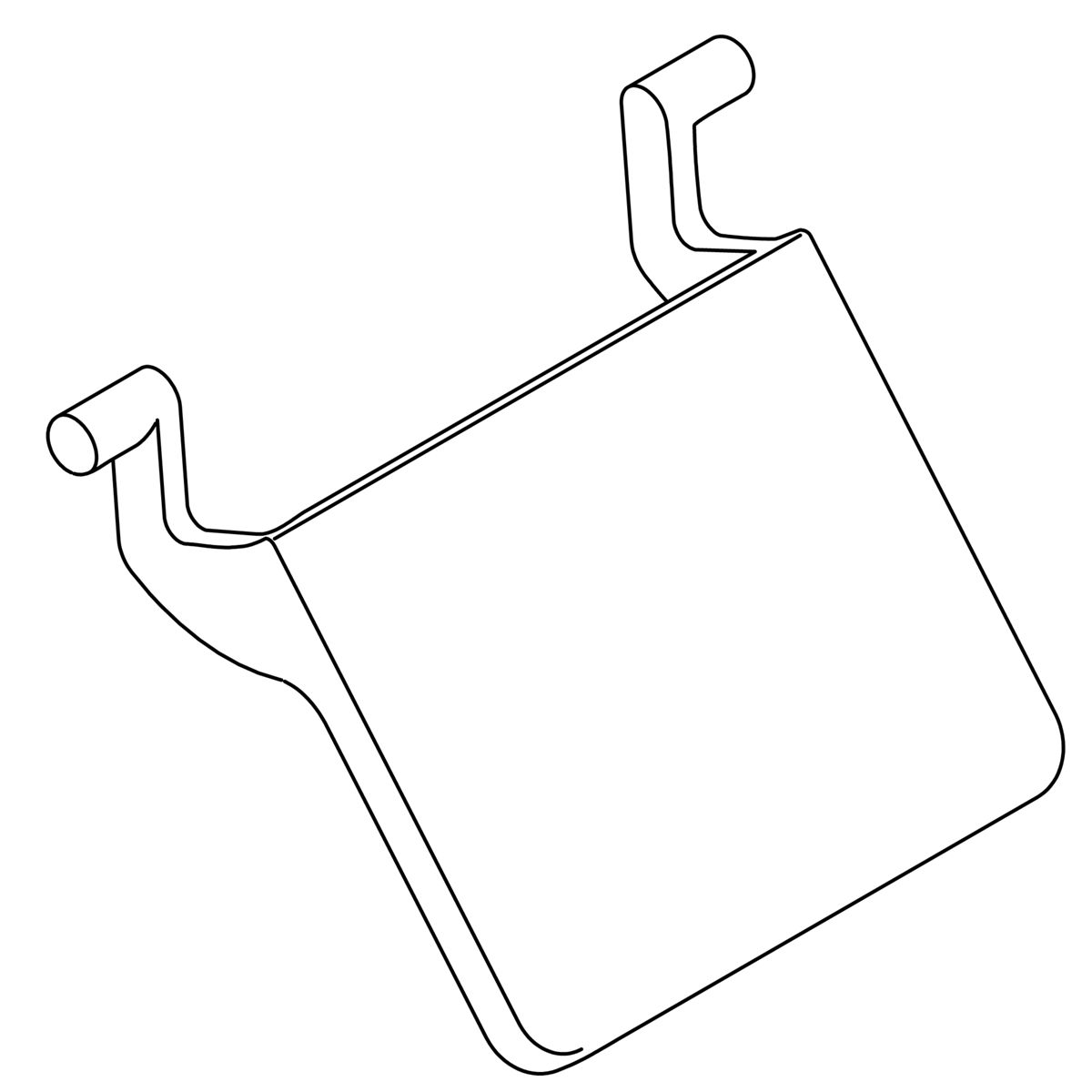

	K-1215318-0	Kohler Genuine Parts Wand-door-sp - White	from $2.28	Honed Black — $30.05 White — $2.28
—	1289759	Pa Ngwh Faceplate	—

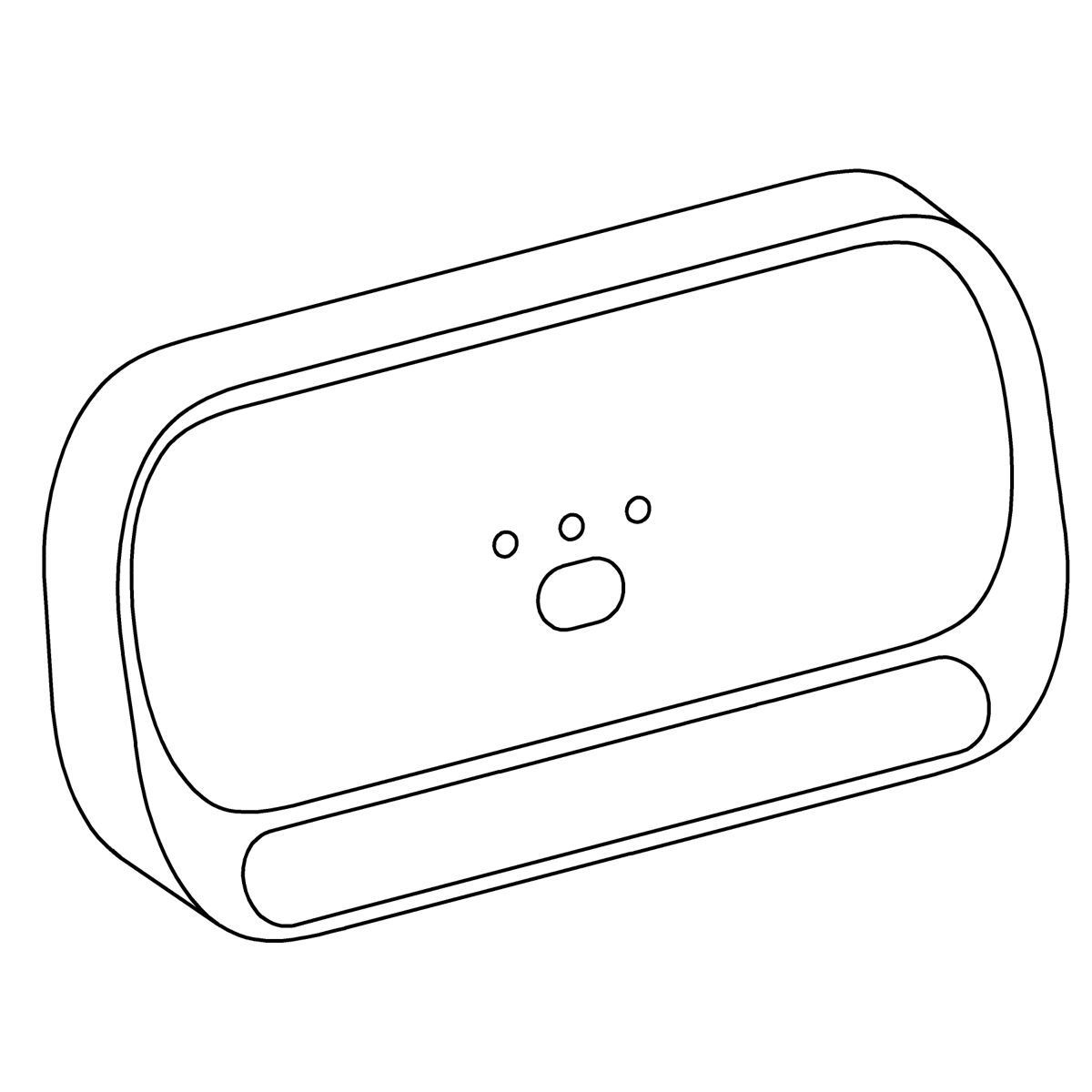

	K-1245212	Remote Dock	$112.65	View

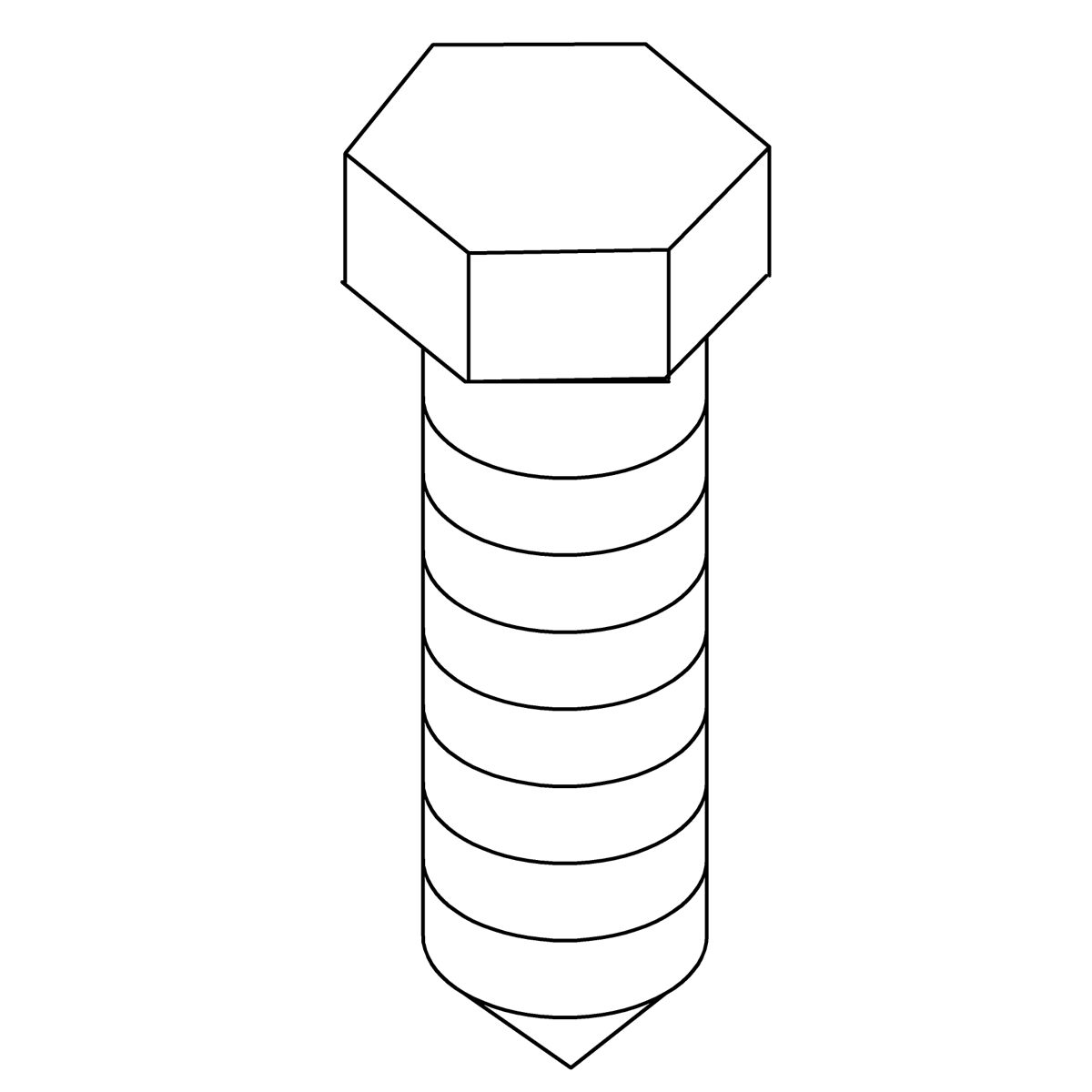

	K-1223436	Screw	$2.30	View

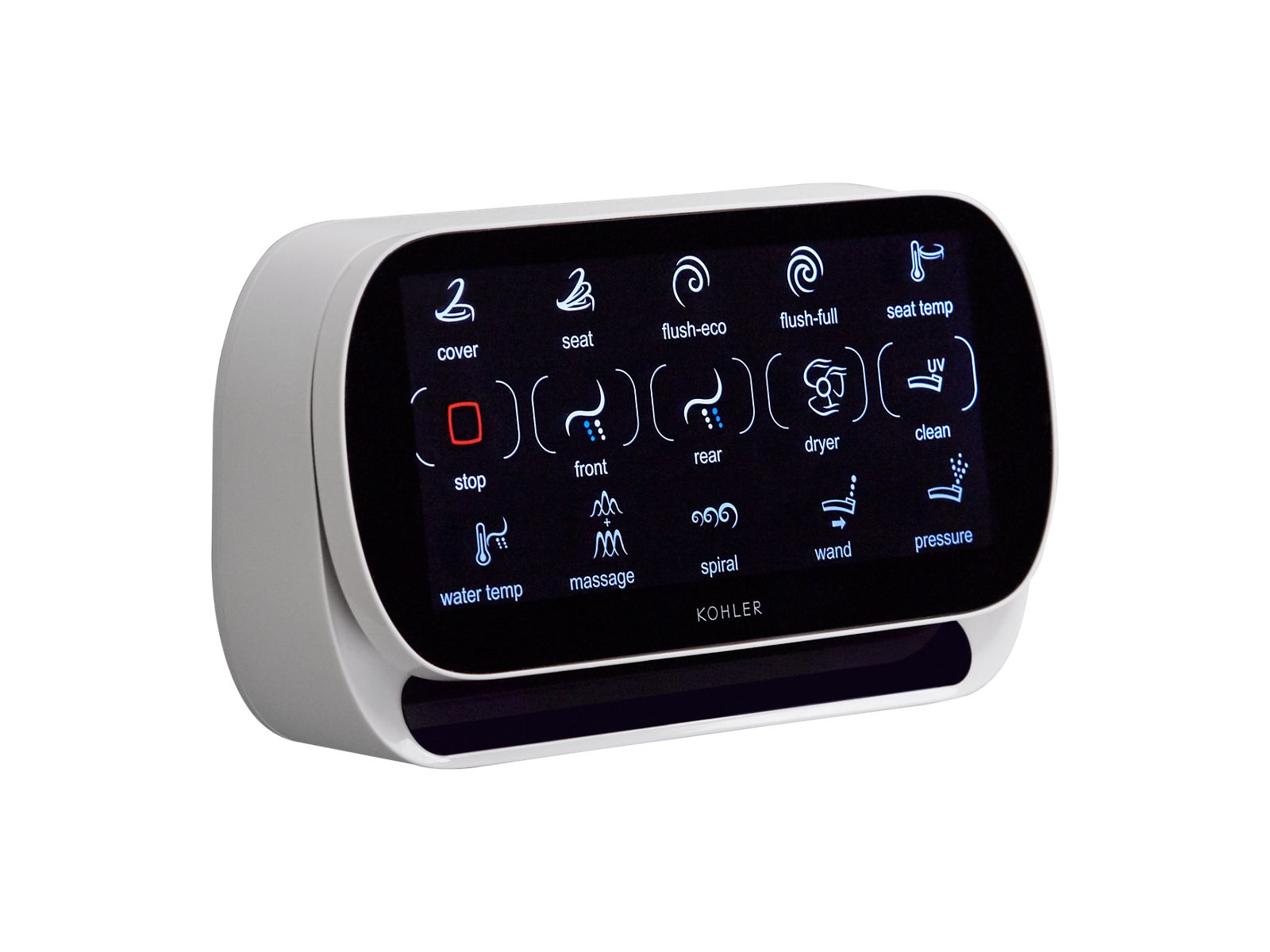

	K-1230504	Veil Remote	$396.91	View
	K-1235953	Veil Remote Assembly	$484.59	View
—	1214630	—	—
