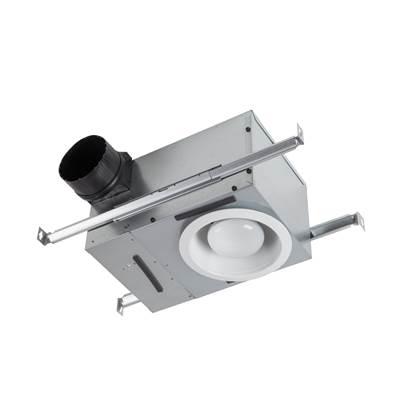

Broan Nutone Recessed Ventilation Fan with Light - 70 CFM - 1.5 Sones in White
Item #: 744
UPC: 026715163014
Free Shipping on LTL freight orders over $99
Overview
- Product Type: With Light Exhaust Fan
- Finish: White
- Length: 8.25"
- Width: 12.75"
- Height: 6.88"
- Weight: 8.5 lbs.
Features
- 70 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- ENERGY STAR certified and 1.5 Sones for Quiet performance, enough sound to know your fan is on.
- Trim matched to designs of major recessed light manufacturers
- Powerful enough for rooms up to 65 sq. ft.
- Model 744 accepts a standard A19 base, 75 watt maximum bulb, not included. (R30, BR30, PAR30L, or PAR30LN)
- Corrosion resistant galvanized steel housing stands up to moisture
- 6-7/8'' high housing appropriate for new construction and 2'' x 8'' ceiling joists
- All models UL Listed for use over bathtub or shower when connected to a GFCI protected branch circuit.
Specifications
Product Specifications
| Sones | 1.5 |
|---|---|
| Blades | Polymeric |
| Finish | White |
| Airflow | 70 |
| Cfm Hvi | 70 |
| Lighted | Yes |
| Listing | UL |
| Type Ic | Yes |
| Voltage | 120v |
| Includes | No Additional Items Included |
| Shipping | L:14.4"x W:9.5"x H:10.5" 9.4 lbs. |
| Warranty | 1 Year |
| Duct Size | 4'' |
| Max Watts | 75 |
| Ul Listed | Yes |
| Bulb Shape | R30, BR30, PAR30L or PAR30LN |
| Cul Listed | Yes |
| Duct Shape | Round |
| Ceiling Only | Yes |
| Culus Listed | Yes |
| Frequency Hz | 60 |
| Grille Shape | Circle |
| Product Line | Broan |
| Product Type | With Light Exhaust Fan |
| Watts (High) | 75 |
| Amperage Amps | 1.2 |
| Hvi Vertified | Yes |
| Lighting Type | Incandescent |
| Duct Direction | Horizontal/Vertical |
| Hardware Included | Yes |
| Installation Type | Ceiling |
| Online Product ID | 524591 |
| Grille Diameter In | 7.37 |
| Bulb Recommended Type | 75W, R30, BR30, PAR30L or PAR30LN |
| Certification File No | E17814 |
| Energy Star Certified | Yes |
| Minimum Order Quantity | 1 |
| Lighting Modules Number Of | 1 |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 65 |
| Contain Electronic Equipment | Yes |
| Ceiling Fan Amps At High Speed | 1.2 |
| Minimum Construction Space Required | 2'' x 8'' |
Dimensions
| Width | 12.75" |
|---|---|
| Height | 6.88" |
| Length | 8.25" |
| Weight | 8.5 lbs. |
| Dimensions | 8.25 x 12.75 x 7.58 |
| Ship Width | 9.5000 |
| Ship Height | 10.5000 |
| Ship Length | 14.4000 |
| Ship Weight | 9.4000 |
| Housing Width In | 8 |
| Housing Height In | 5.75 |
| Housing Dimensions In | 8-1/4'' x 8'' x 5-3/4'' |
| Housing Length Depth In | 8.25 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
