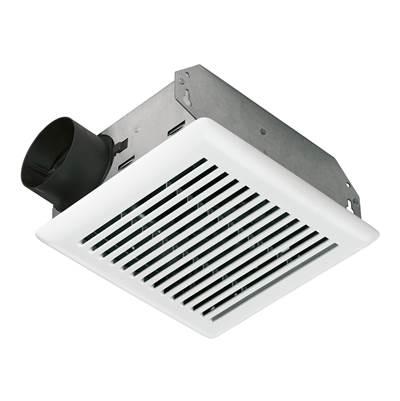

Broan Nutone Economy Series Bathroom Exhaust Fan - 50 CFM - 4.0 Sones in White
Item #: 696N
UPC: 784891258411
Free Shipping on LTL freight orders over $99
Overview
- Product Type: Fan Only Exhaust Fan
- Finish: White
- Collection: Economy Series
- Length: 9"
- Width: 8.75"
- Height: 4.75"
- Weight: 3.5 lbs.
Features
- 50 CFM, Sufficient ventilation to remove odors and pollutants from your smaller powder room or bathroom
- 4.0 Audible sones for privacy while using your bathroom
- Compact housing with foldable mounting brackets for NO CUT and versatile installation
- Mounts on either 16 in. or 24 in. O.C. joist or stud
- Extra-large outlet box area
- cULus-listed; safe for use over tub or shower enclosure when installed in a GFCI protected branch circuit
- Powerful enough for rooms up to 45 sq. ft.
- Brighter white grilles blend in to match most common ceiling paint
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Specifications
Product Specifications
| Sones | 4 |
|---|---|
| Blades | Polymeric |
| Finish | White |
| Airflow | 50 |
| Cfm Hvi | 50 |
| Listing | UL |
| Voltage | 120v |
| Wattage | 108 |
| Includes | No Additional Items Included |
| Shipping | L:10.25"x W:5"x H:9.6" 3.45 lbs. |
| Warranty | 1 Year |
| Duct Size | 3'' |
| Ul Listed | Yes |
| Collection | Economy Series |
| Cul Listed | Yes |
| Duct Shape | Round |
| Culus Listed | Yes |
| Frequency Hz | 60 |
| Grille Shape | Rectangle |
| Product Line | NuTone |
| Product Type | Fan Only Exhaust Fan |
| Amperage Amps | 0.9 |
| Hvi Vertified | Yes |
| Duct Direction | Horizontal/Vertical |
| Air Flow Method | Centrifugal Blower |
| Hardware Included | Yes |
| Installation Type | Ceiling;Wall |
| Online Product ID | 524556 |
| Amca Certification | Yes |
| Certification File No | E17814 |
| Minimum Order Quantity | 1 |
| Product Switch Control Type | Wall Control |
| Recommended Room Size Sq Ft | 45 |
| Contain Electronic Equipment | Yes |
| Ceiling Fan Amps At High Speed | 0.9 |
| Minimum Construction Space Required | 2'' x 4'' |
Dimensions
| Width | 8.75" |
|---|---|
| Height | 4.75" |
| Length | 9" |
| Weight | 3.5 lbs. |
| Dimensions | 9.75 x 9.25 x 4.06 |
| Ship Width | 4.5000 |
| Ship Height | 9.6000 |
| Ship Length | 10.3000 |
| Ship Weight | 3.4000 |
| Grille Width In | 9.25 |
| Grille Height In | 1.25 |
| Housing Width In | 7.25 |
| Housing Height In | 3.63 |
| Housing Dimensions In | 7-1/2'' x 7-1/4'' x 3-5/8'' |
| Grille Length Depth In | 9.75 |
| Ceiling Cutout Width In | 7.75 |
| Housing Length Depth In | 7.5 |
| Ceiling Cutout Length In | 8 |
Materials
| Grille Material | Plastic |
|---|---|
| Housing Material | Galvanized |
