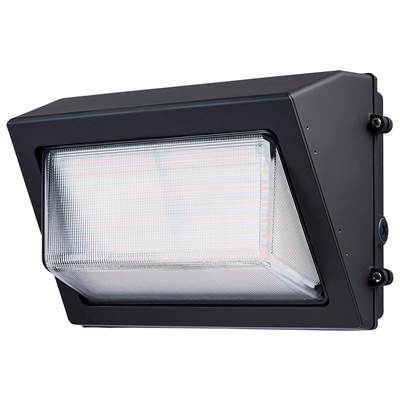

Nuvo LED Wall Pack - 60/40/29 Wattage Selectable - 3K/4K/5K CCT Selectable - 60/90/110 Beam Angle Selectable - 120-347 Volt in Bronze
Item #: 65-1500
UPC: 045923412448
Overview
The SATCO NUVO LED Wall Packs are designed for precise, high-output perimeter and site lighting in commercial and industrial environments. Beam selectable optics offer 60-degrees, 90-degrees, or 110-degrees distributions, allowing light to be directed exactly where it''''s needed for optimal coverage and reduced spill. Selectable wattage from 29W to 120W and selectable CCTs of 3000K, 4000K, and 5000K deliver lumen outputs ranging from 4,225 to 18,221 lumens Built with a durable die-cast aluminum housing, borosilicate glass lens, and an integrated by-passable photocell, these fixtures operate on a universal 120-347V input. IP65 and IK08 rated, wet-location suitable, DLC 6.0 Listed, supporting evolving efficiency standards, and 0-10V dimmable, they offer a 50,000-hour rated life and are backed by a 5-year warranty-ideal for building perimeters, loading areas, and exterior commercial spaces.
Features
- Beam Selectable (60-degrees/90-degrees/110-degrees)
- 3 CCT Selectable (3000K/4000K/5000K)
- 3 Wattage Selectable (60W/40W/29W)
- 6kV Surge Protection
- IP65 Rated
- Die-Cast Aluminum Housing with Borosilicate Glass
- Integrated By-Passable Photocell
- 120-347V Range Voltage and 0-10V Dimmable
- 50,000 Life Hours
- 5 Year Warranty
Specifications
Product Specifications
| Style | Utilitarian |
|---|---|
| Finish | Bronze |
| Lumens | 4225-9193 |
| Listing | CULUS |
| Voltage | 120-347v |
| Dimmable | Yes |
| Location | Wet |
| Shipping | L:15.94"x W:11.57"x H:10" 10.5 lbs. |
| Warranty | 5 Years |
| Bulb Base | Integrated |
| Max Watts | 60,40,29 |
| Color Temp | 3000,4000,5000 K |
| Lens Color | Clear |
| Light Source | LED |
| Product Type | Wall Light |
| Prop65 Warning | Lead |
| Online Product ID | 18790126 |
| Color Rendering Index | 80 |
Dimensions
| Width | 14.36" |
|---|---|
| Height | 9.3" |
| Length | 14.36" |
| Weight | 8.2 lbs. |
Materials
| Material | Die Cast Aluminum |
|---|---|
| Lens Material | Borosilicate Glass |
