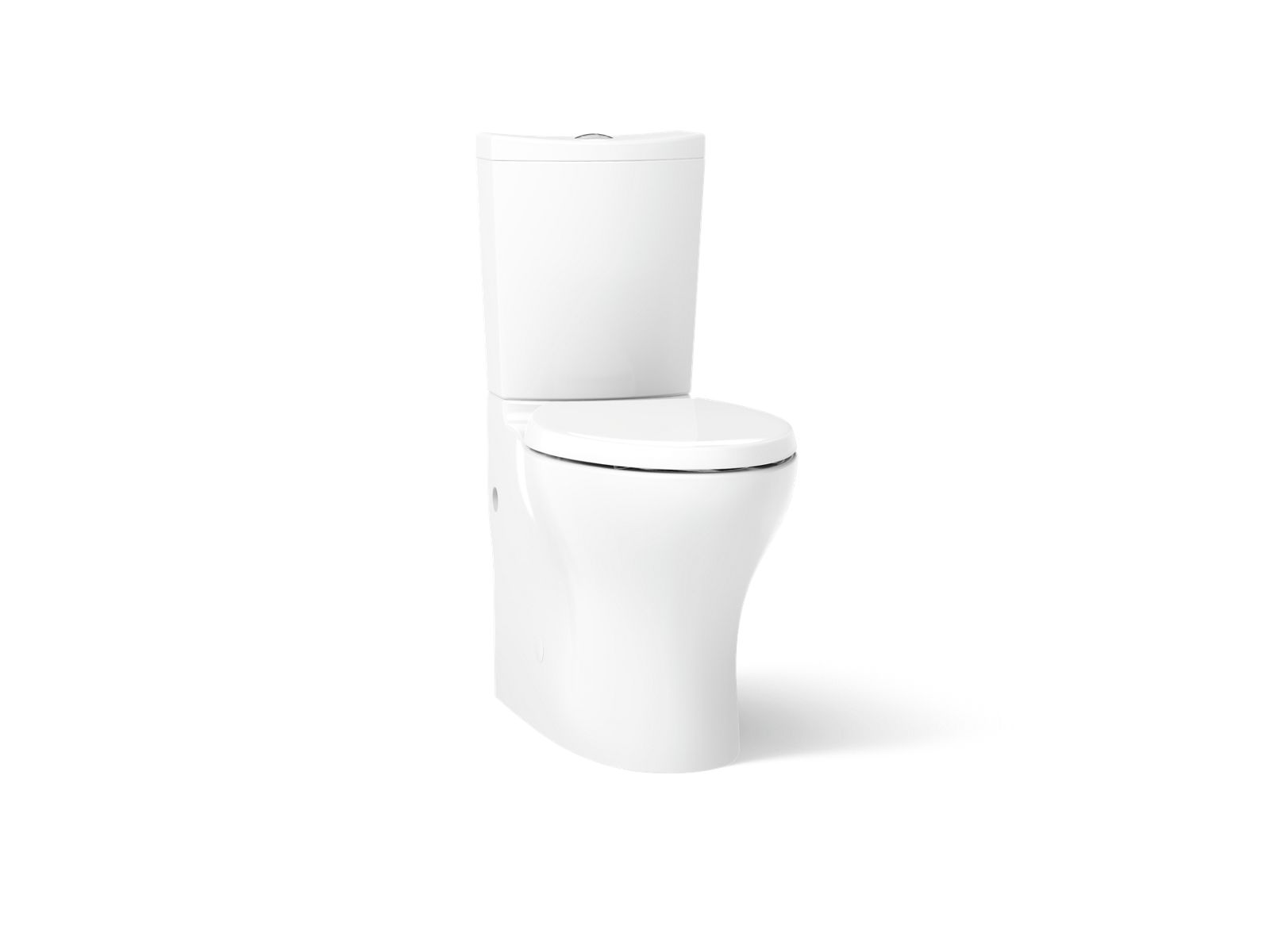

Kohler Persuade Curv Two Piece Elongated Toilet - Dual-Flush in White
Item #: 6355-0
UPC: 885612618368
Overview
The KOHLER® Persuade collection captures the essence of modernity in subtle curves and clean lines. With its sleek symmetry, this two-piece Persuade Curv two-piece elongated toilet adds style to the bathroom without sacrificing water savings. The two-button flush offers the choice of 1.0 or 1.6 gallons per flush. The high-efficiency 1.0-gallon flush setting reduces water use by more than 30% over the 1.6-gallon mode, which adds up to potential water savings of more than 4,000 gallons per toilet, per year. The skirted trapway installs to the floor flange and attaches to the toilet, eliminating the need to drill holes while offering the same secure installation as nonskirted toilets.
Two-piece elongated toilet with skirted trapway, dual-flush
Features
- Two-piece design
- Elongated bowl offers added room and comfort
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
- Top-mount two-button flush offers a choice of 1.0 or 1.6 gallons per flush (gpf)
- Skirted trapway simplifies cleaning
- Combination consists of toilet bowl and tank
- Dual-flush technology allows you to choose between a full or partial flush
- Patented ReadyLock® installation system, a simple solution for skirted toilets, saves time, hassle, and eliminates the need to drill into the floor for standard 12" (305 mm) rough-in
- Eligible for consumer rebates in some municipalities
- This product can help a building earn Water Efficiency points in LEED® Green Building Rating System
- Standard 12" (305 mm) rough-in only. Cannot be combined with K-5383, or K-5381 for use in 10" or 14" installations
- Includes top-mount dual flush actuator
Specifications
Product Specifications
| CEC | Yes |
|---|---|
| GTIN | 00885612618368 |
| Finish | White |
| Trapway | Skirted |
| CALGreen | Yes |
| Shipping | L:0"x W:0"x H:0" 132 lbs. |
| Oversized | Yes |
| Collection | Persuade |
| Flush Rate | 1.0,1.6 gal/flush |
| Watersense | Yes |
| Product Type | Two Piece Toilet |
| Stock Status | in_stock |
| Product Style | Contemporary |
| Asme Standards | ASME A112.19.2/CSA B45.1;ASME A112.19.14 |
| Introduction Date | 4/27/2017 |
| Online Product ID | 2921493 |
| Freight Policy Type | 1 |
| Release For Shipment | 2017-04-27T00:00:00Z |
Dimensions
| Width | 14.188" |
|---|---|
| Height | 32.875" |
| Length | 28.625" |
| Weight | 132.000 |
| Overall Width Inches | 14-3/16" |
| Overall Height Inches | 32-7/8" |
| Overall Length Inches | 28-5/8" |
Materials
| Material | Vitreous China |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #6355-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Bushing, Spherical | K-1213082 | $3.62 | |
 | Clip | K-51261 | $3.50 | |
 | Flush Valve Gasket | K-1043639 | $12.34 | |
 | Gasket | K-1270755 | $5.84 | |
 | Gasket, Tank | K-1107584 | $5.73 | |
 | Kohler Genuine Parts B5-1271 - Locknut Assy.shank - TWO Piece | K-1057941 | $2.28 | |
 | Kohler Genuine Parts B5-1816 - NUT, 2-11.5NPSM | K-50751 | $3.62 | |
 | Kohler Genuine Parts BOLT CAP KIT - White White | K-1225543-0 | $4.30 | |
 | Kohler Genuine Parts CAM Assembly KIT, Angled BASE | K-1267750 | $58.55 | |
 | Kohler Genuine Parts DUAL Flush PUSH RODS KIT | K-1266858 | $2.28 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 400A Series | K-GP1138930 | $20.55 | |
 | Kohler Genuine Parts Flush Valve SEAL KIT | K-1131496 | $8.73 | |
 | Kohler Genuine Parts Inlet Cover, Assembly - White White | K-1084387-0 | $5.84 | |
 | Kohler Genuine Parts PUSH Button Actuator KIT, 38MM - Polished Chrome | K-1266856-CP | $12.68 | |
 | Kohler Genuine Parts PUSH Button Flush Actuator KIT - Polished Chrome | K-1265519-CP | $10.96 | |
 | Kohler Genuine Parts Readylatch Anchor KIT | K-1461673 | $18.24 | |
 | Kohler Genuine Parts Screw, LAG, HEX Washer HED | K-1111746-A | $2.30 | |
 | Kohler Genuine Parts Service CAP Assembly | K-1057940 | $7.01 | |
 | Kohler Genuine Parts TANK Accessory PACK | K-1111827 | $7.68 | |
 | Kohler Genuine Parts Tank, LID - White White | K-1217371-0 | $30.75 | |
 | Kohler Genuine Parts Trapway Service KIT, Plastic | K-1302617 | $97.92 | |
 | Kohler Genuine Parts Valve Service KIT, 820 DUAL Flush Valve | K-1269696 | $23.19 | |
 | Seal Diaphragm | K-83143 | $5.73 | |
 | Supply Nut | K-42397 | $2.73 | |
 | Tank Seal | K-1145626 | $4.70 | |
 | Washer | K-42398 | $2.17 | |
 | Washer, Shank | K-85307 | $2.40 | |
| — | — | 1013337 | — | |
| — | — | 1068389 | — | |
