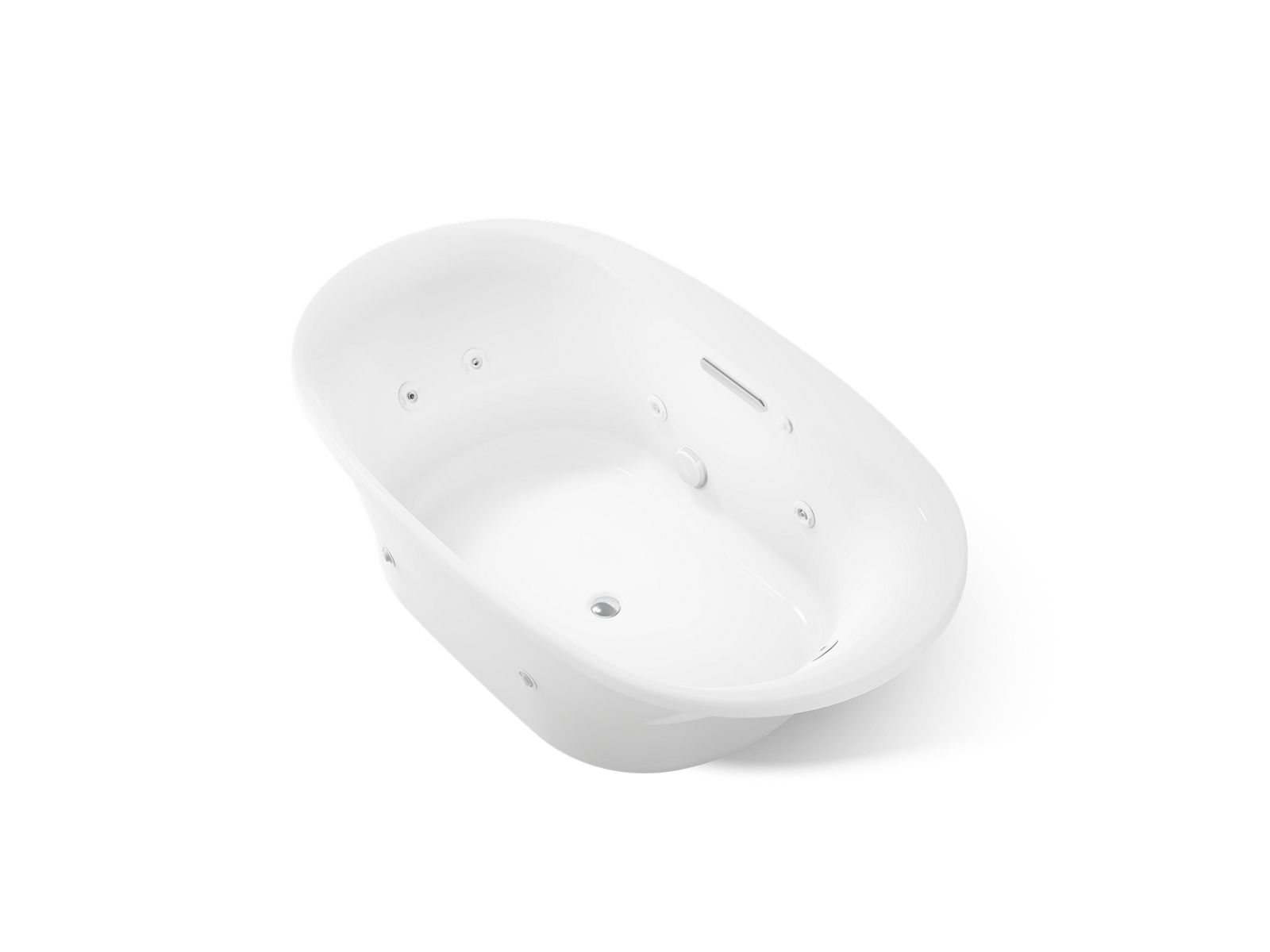

Kohler Underscore 72″ x 42″ Drop-In Whirlpool Bath - Heated in White
Item #: 5718-JH-0
UPC: 885612862778
Finish: White
Offered in 4 colors
Free Shipping on LTL freight orders over $99
Additional items needed for installation
Overview
With clean, smooth lines, the KOHLER® Underscore whirlpool bath is a welcome retreat to soak away the day’s tension and center your mind. Lie back and melt in the 72" x 42" rectangular alcove deep bath as eight fully-adjustable jets deliver a powerful hydromassage, while the built-in heater maintains the water at your desired temperature to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger…
72" x 42" drop-in heated whirlpool bath
Features
- Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
- Single-speed whirlpool offers performance and value with 8 fully adjustable jets
- Built-in heater
- Slotted overflow allows for deep soaking
- Oval basin creates a spacious bathing experience
- Spacious design accommodates up to two bathers
- Wide ledge on one side is ideal for deck-mount faucet and/or handshower
- Integral lumbar support
- Textured bottom surface
Specifications
Product Specifications
| GTIN | 00885612862778 |
|---|---|
| Shape | Oval |
| Finish | White |
| Shipping | L:74.5"x W:44.5"x H:25" 115 lbs. |
| Oversized | Yes |
| Collection | Underscore |
| Product Type | Whirlpool Bathtub |
| Stock Status | in_stock |
| Product Style | Contemporary |
| Asme Standards | ASME A112.19.7/CSA B45.10 |
| Product Warranty | KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty |
| Introduction Date | 2/10/2020 |
| Online Product ID | 7624930 |
| Release For Shipment | 2020-02-10T00:00:00Z |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 42" |
|---|---|
| Height | 23.15" |
| Length | 72" |
| Weight | 115.000 |
| Overall Width Inches | 42" |
| Overall Height Inches | 23-1/8" |
| Overall Length Inches | 72" |
Materials
| Material | Acrylic |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #5718-JH-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Air Switch Assembly | 90105 | — | |
 | Assembly, Overflow | K-1069647 | $80.50 | |
| — | Bracket, Pump, 4.31 | 73508-E | — | |
 | Cartridge Assembly for Drain | K-1068204 | $10.65 | |
| — | Clip, Pump | 95517 | — | |
 | Cover, 230V Pump | K-1015058 | $18.85 | |
 | Drain Elbow | K-1069646 | $3.20 | |
| — | Flange, Switch | 65156 | — | |
| — | Flange, Switch | 91575 | — | |
 | Gasket | K-1064431 | $13.60 | |
 | Gasket | K-1068203 | $2.45 | |
 | Hex Wrench | K-1070940 | $2.35 | |
 | Impeller | K-1013755 | $31.95 | |
 | Kohler Genuine Parts AIR Pressure Switch | K-1010672 | $40.50 | |
 | Kohler Genuine Parts Assembly, Cover - Vibrant Brushed Moderne Brass French Gold | K-1068525-AF | $80.40 | |
 | Kohler Genuine Parts Bracket, Pump, 4.06 | K-73508-D | $486.95 | |
 | Kohler Genuine Parts Cover Assy, ITT PUMP | K-1010676 | $35.90 | |
 | Kohler Genuine Parts NUT, 1.5625-16UNR-2B | K-65157 | $7.45 | |
| — | Kohler Genuine Parts PUMP Assy, 230V, 50/60 HZ | K-1008235 | $1,100.46 | |
 | Kohler Genuine Parts PVC TEE - 1 1/2 SCH. 40 | K-1052481 | $6.17 | |
 | Kohler Genuine Parts Shaft Seal, ITT PUMP | K-1010673 | $65.43 | |
 | Kohler Genuine Parts Stopper - Blackened Bronze Blackened Bronze | K-1068202-2BL | $74.95 | |
 | Kohler Genuine Parts Tube, 1/16 ID, 6 FT. LONG | K-1020609 | $3.87 | |
 | Nut | K-1044609 | $3.09 | |
 | O-Ring | K-65451 | $2.30 | |
 | O-Ring | K-60980 | $2.30 | |
 | O-Ring | K-94821 | $2.30 | |
 | O-Ring, Itt Pump | K-1010675 | $3.31 | |
 | Plate, Mounting | K-1065165 | $10.75 | |
 | Screw 8-32 X 1.13 | K-43165 | $4.70 | |
 | Screw, Itt Pump | K-1010677 | $2.75 | |
 | Seal | K-1070521 | $2.35 | |
 | Seal | K-1044607 | $2.30 | |
 | Socket Joint | K-1044608 | $2.75 | |
 | Tee Assembly | K-1080775 | $21.06 | |
 | Union Assembly | K-1080774 | $10.10 | |
| — | — | 60985 | — | |
| — | — | 60912 | — | |
| — | — | 73508-A | — | |
| — | — | 73508-B | — | |
| — | — | 73508-C | — | |
| — | — | 1068201 | — | |
| — | — | 1067596 | — | |
| — | — | 73524 | — | |
| — | — | 73525 | — | |
| — | — | 73529 | — | |
| — | — | 73552 | — | |
| — | — | 73558 | — | |
| — | — | 73559 | — | |
| — | — | 1015057 | — | |
| — | — | 1010571 | — | |
| — | — | 92145 | — | |
| — | — | 92146 | — | |
| — | — | 93000 | — | |
| — | — | 93003 | — | |
| — | — | 1010548 | — | |
| — | — | 1010029 | — | |
| — | — | 95594 | — | |
| — | — | 1009763 | — | |
| — | — | 1005363 | — | |
