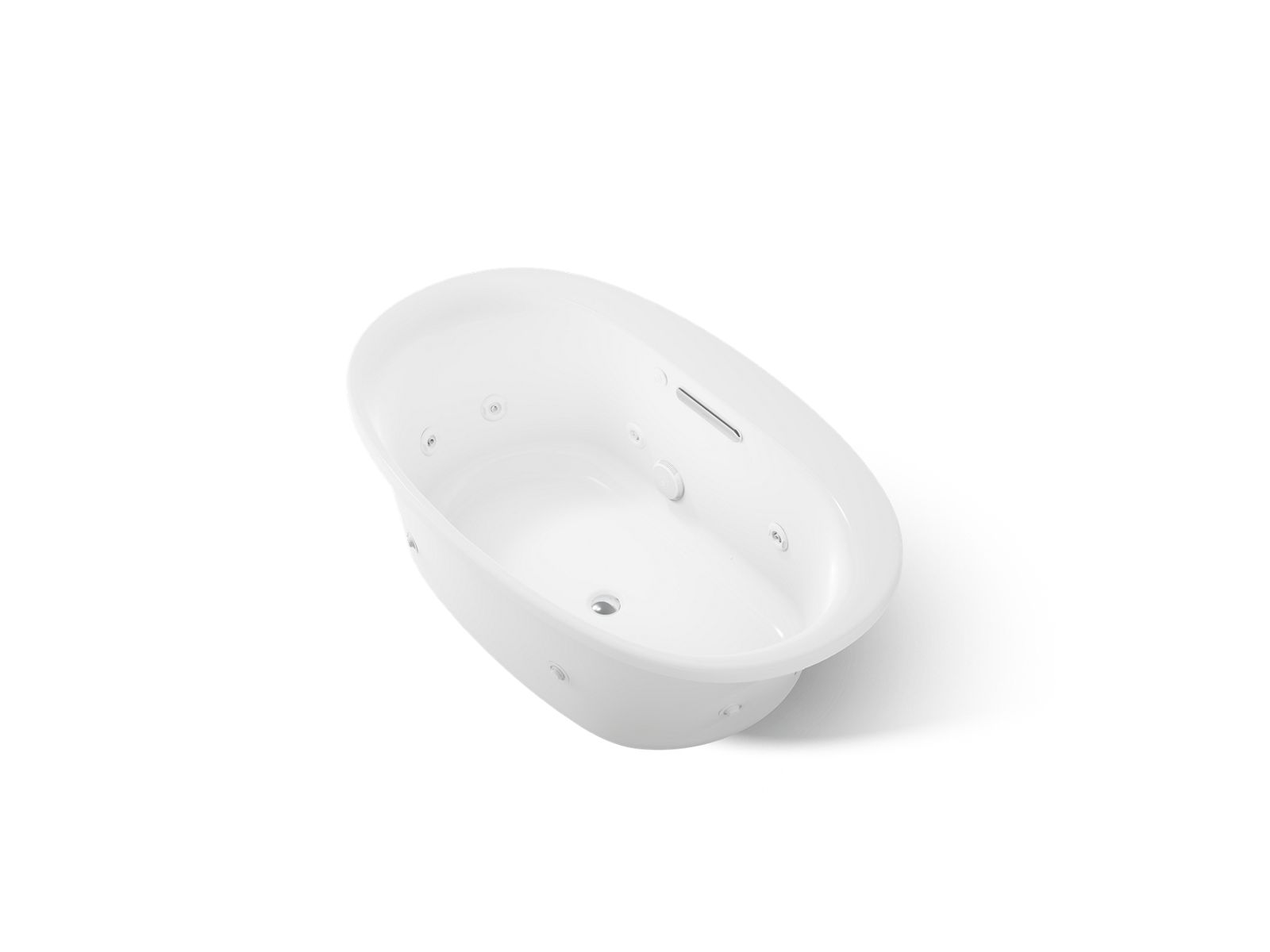

Kohler Underscore 60″ x 36″ Drop-In Whirlpool Bath - Heated in White
Item #: 5714-JH-0
UPC: 885612862655
Finish: White
Offered in 3 colors
Free Shipping on LTL freight orders over $99
Additional items needed for installation
Overview
With clean, smooth lines, the KOHLER® Underscore whirlpool bath is a welcome retreat to soak away the day’s tension and center your mind. Lie back and melt in the 60" x 36" oval drop-in deep bath as eight fully-adjustable jets deliver a powerful hydromassage, while the built-in heater maintains the water at your desired temperature to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger…
60" x 36" drop-in heated whirlpool bath
Features
- Eight Proflex® hydromassage jets can be individually adjusted for water flow and direction
- Single-speed whirlpool offers performance and value with 8 fully adjustable jets
- Built-in heater
- Slotted overflow allows for deep soaking
- Oval basin creates a spacious bathing experience
- Wide ledge on one side is ideal for deck-mount faucet and/or handshower
- Integral lumbar support
- Textured bottom surface
Specifications
Product Specifications
| GTIN | 00885612862655 |
|---|---|
| Shape | Oval |
| Finish | White |
| Shipping | L:63.5"x W:38.5"x H:23" 68 lbs. |
| Oversized | Yes |
| Collection | Underscore |
| Product Type | Whirlpool Bathtub |
| Stock Status | in_stock |
| Product Style | Contemporary |
| Asme Standards | ASME A112.19.7/CSA B45.10 |
| Product Warranty | KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty |
| Introduction Date | 2/10/2020 |
| Online Product ID | 7624870 |
| Release For Shipment | 2020-02-10T00:00:00Z |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 35.98" |
|---|---|
| Height | 21" |
| Length | 59.92" |
| Weight | 68.000 |
| Overall Width Inches | 36" |
| Overall Height Inches | 21" |
| Overall Length Inches | 59-15/16" |
Materials
| Material | Acrylic |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #5714-JH-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Air Switch Assembly | 90105 | — | |
 | Assembly, Check Valve | K-91967 | $25.92 | |
| — | Cover, Suction | 96895 | — | |
 | Flange | K-67429 | $7.95 | |
 | Flange, Suction | K-96708 | $8.85 | |
| — | Flange, Switch | 91575 | — | |
| — | Flange, Switch | 65156 | — | |
 | Flex Tube, 3/8" | K-1146912 | $2.28 | |
 | Gasket, Tapered | K-65885 | $6.17 | |
| — | Gasket, Tapered | 67668 | — | |
 | Gasket, Tapered | K-1008241 | $3.39 | |
 | Gasket, Tapered | K-65886 | $5.05 | |
 | Jet Flange Tool | K-1011001 | $285.57 | |
 | Jet Flange, Retail | K-1008239 | $4.95 | |
 | Jet Nozzle | K-1013249 | $4.71 | |
 | Jet Nozzle Nut | K-1013250 | $4.54 | |
 | Kit, Manifold | K-1287280 | $193.80 | |
 | Kohler Genuine Parts 1 PVC Tube, Service KIT | K-93838 | $53.58 | |
 | Kohler Genuine Parts 1.25 PVC TUBE Service KIT | K-93839 | $264.57 | |
 | Kohler Genuine Parts 1/2 PVC TUBE Service KIT | K-93836 | $46.16 | |
 | Kohler Genuine Parts Cover, Suction - French Gold Brushed Black Pvd | K-65061-BKB | $158.15 | |
 | Kohler Genuine Parts Housing Assy, PVC JET | K-67889 | $23.40 | |
 | Kohler Genuine Parts Housing Assy, Suction | K-93685 | $30.40 | |
 | Kohler Genuine Parts JET Handle Assembly - Dune | K-1101695-NY | $12.87 | |
 | Kohler Genuine Parts JET Housing, Retail | K-1008238 | $20.09 | |
 | Kohler Genuine Parts JET TRIM KIT - White White | K-1015255-0 | $85.55 | |
 | Kohler Genuine Parts KIT, AIR Switch - White White | K-1147742-0 | $28.80 | |
 | Kohler Genuine Parts KIT, Manifold, 2 BARB | K-1330132 | $452.70 | |
 | Kohler Genuine Parts NUT, 1.5625-16UNR-2B | K-65157 | $7.45 | |
 | Kohler Genuine Parts Packet, Dc-111 LUBE | K-1045715-P | $3.40 | |
 | Kohler Genuine Parts Plug, Suction Cover - White White | K-65226-0 | $4.60 | |
 | Kohler Genuine Parts Removal Tool, DIR. BALL | K-30739 | $8.20 | |
 | Kohler Genuine Parts Screw, 10-24 X 3.25 - Vib Bright Bronze Brushed Black Pvd | K-65054-BKB | $8.25 | |
 | Kohler Genuine Parts Service KIT, 1 1/2 FLEX | K-94853 | $40.30 | |
 | Kohler Genuine Parts TRIM RING KIT - Brushed Black Pvd Brushed Black Pvd | K-88531-BKB | $254.10 | |
 | Kohler Genuine Parts TRIM RING KIT - French Gold Brushed Black Pvd | K-88529-BKB | $260.40 | |
 | Kohler Genuine Parts TRIM RING KIT - White White | K-88530-0 | $37.10 | |
 | Kohler Genuine Parts TRIM RING KIT - White White | K-88532-0 | $34.42 | |
 | Kohler Genuine Parts TRIM RING KIT, Large Orifice - White White | K-1011031-0 | $30.60 | |
 | Kohler Genuine Parts TRIM RING KIT, Large Orifice - White White | K-1011032-0 | $34.42 | |
 | Kohler Genuine Parts Tool, Suction Flange | K-1003065 | $462.04 | |
 | Kohler Genuine Parts Tube, 1/16 ID, 6 FT. LONG | K-1020609 | $3.87 | |
 | Kohler Genuine Parts Wrench, Flange Removal | K-1086350 | $200.43 | |
 | O-Ring | K-65451 | $2.30 | |
 | Pipe Plug-1" | K-67665 | $4.54 | |
 | Plug, 1.5" Pvc | K-73518 | $10.10 | |
 | Sterling Plumbing 25R Fitting Union TEE, 3/8 | 1145781 | $2.37 | |
 | Tool, Jet Removal | K-1265445 | $11.20 | |
 | V-Jet Housing | K-1226809 | $10.55 | |
| — | — | 73521 | — | |
| — | — | 73513 | — | |
| — | — | 93766 | — | |
| — | — | 73584 | — | |
| — | — | 1010571 | — | |
| — | — | 60050 | — | |
| — | — | 67594 | — | |
| — | — | 93837 | — | |
