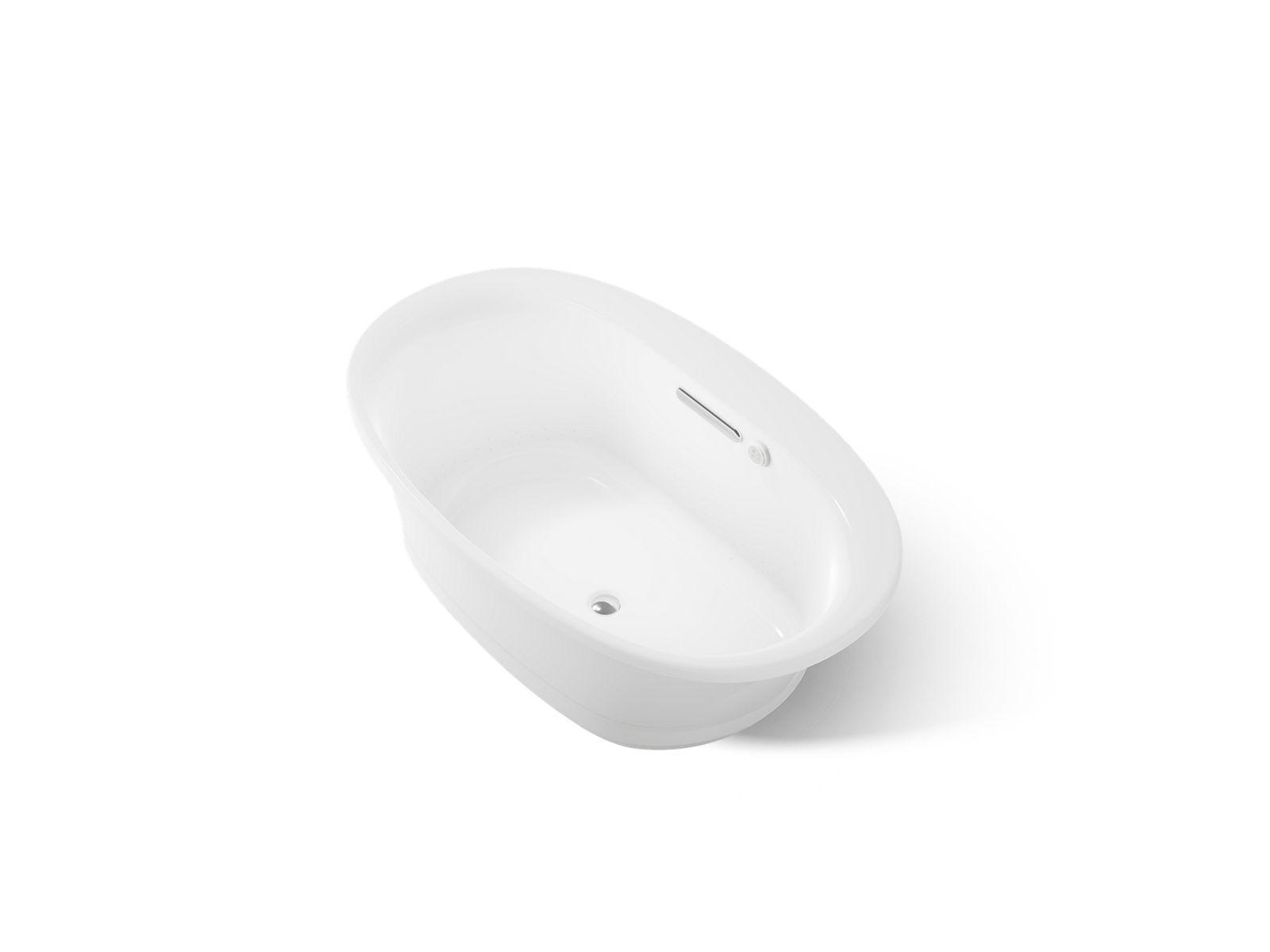

Kohler Underscore - 59-3/4″ x 35-3/4″ - Heated BubbleMassage™ Drop-In Air Bath with Bask® in White
Item #: 5714-GHW-0
UPC: 885612849380
Additional items needed for installation
Overview
With clean, smooth lines, the KOHLER® Underscore Heated BubbleMassage™ 59-3/4" x 35-3/4" oval drop-in air bath is a welcome retreat to soak away the day’s tension and center your mind. Lie back and melt in the deep bath as strategically-placed airjets release thousands of bubbles to massage your body at the level of intensity you prefer, while the heated surface warms your back and neck with adjustable temperature settings to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger…
59-3/4" x 35-3/4" drop-in Heated BubbleMassage™ air bath with Bask® heated surface
Features
- 122 airjets release thousands of heated bubbles that surround, support, and massage the body
- Variable-speed blower lets you adjust massage intensity to 18 levels
- Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
- Built-in heater
- Automatic and manual purge cycles remove residual water from air channels after use
- 60-minute automatic shutoff timer
- Slotted overflow allows for deep soaking
- Oval basin creates a spacious bathing experience
- Wide ledge on one side is ideal for deck-mount faucet and/or handshower
- Integral lumbar support
- Keypad control
- Textured bottom surface
Specifications
Product Specifications
| GTIN | 00885612849380 |
|---|---|
| Shape | Oval |
| Finish | White |
| Shipping | L:63.5"x W:38.5"x H:23" 73 lbs. |
| Oversized | Yes |
| Collection | Underscore |
| Product Type | Undermount Air Bathtub |
| Stock Status | in_stock |
| Product Style | Contemporary |
| Asme Standards | ASME A112.19.7/CSA B45.10 |
| Product Warranty | KOHLER® Plastic Baths and Shower Bases Lifetime Limited Warranty|KOHLER® Hydrotherapy Components Five-Year Limited Warranty |
| Introduction Date | 1/16/2020 |
| Online Product ID | 7624864 |
| Release For Shipment | 2020-01-16T00:00:00Z |
| Csa Product Standards | CSA B45.5/IAPMO Z124 |
Dimensions
| Width | 35.625" |
|---|---|
| Height | 21" |
| Length | 59.687" |
| Weight | 73.000 |
| Overall Width Inches | 35-5/8" |
| Overall Height Inches | 21" |
| Overall Length Inches | 59-11/16" |
Materials
| Material | Acrylic |
|---|
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #5714-GHW-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
| — | Assembly, Power Supply | 1198993 | — | |
 | BASK HEATER KIT | K-1197576 | $699.46 | |
 | Gasket, Interface | K-1020677 | $5.50 | |
 | Kohler Genuine Parts Adapter Screen Nipple Service KIT | K-1539975 | $149.80 | |
 | Kohler Genuine Parts Assembly NO Connnections,heated Conduit | K-1366015 | $1,953.51 | |
 | Kohler Genuine Parts Assembly, Inlet Connection | K-1366016 | $180.40 | |
 | Kohler Genuine Parts Assembly, Outlet Connection | K-1366017 | $191.18 | |
 | Kohler Genuine Parts Assembly,water Injection | K-1335464 | $342.99 | |
 | Kohler Genuine Parts Assy, Interface Heated Surface | K-1264000 | $175.88 | |
 | Kohler Genuine Parts Assy. Cable, Heated TUB | K-1195687 | $52.79 | |
 | Kohler Genuine Parts NUT, 1.5625-16UNR-2B | K-65157 | $7.45 | |
 | Kohler Genuine Parts TRIM Ring, Interface, CORE - White White | K-1013469-0 | $13.62 | |
 | O-Ring | K-94110 | $2.50 | |
| — | — | 1369986 | — | |
| — | — | 1153862 | — | |
| — | — | 1013459-E | — | |
