Kohler Corbelle Two Piece Elongated Toilet - 1.28 GPF in White
Item #: 5709-0
UPC: 885612704580
Finish: White
Offered in 5 colors
Free Shipping on LTL freight orders over $99
Overview

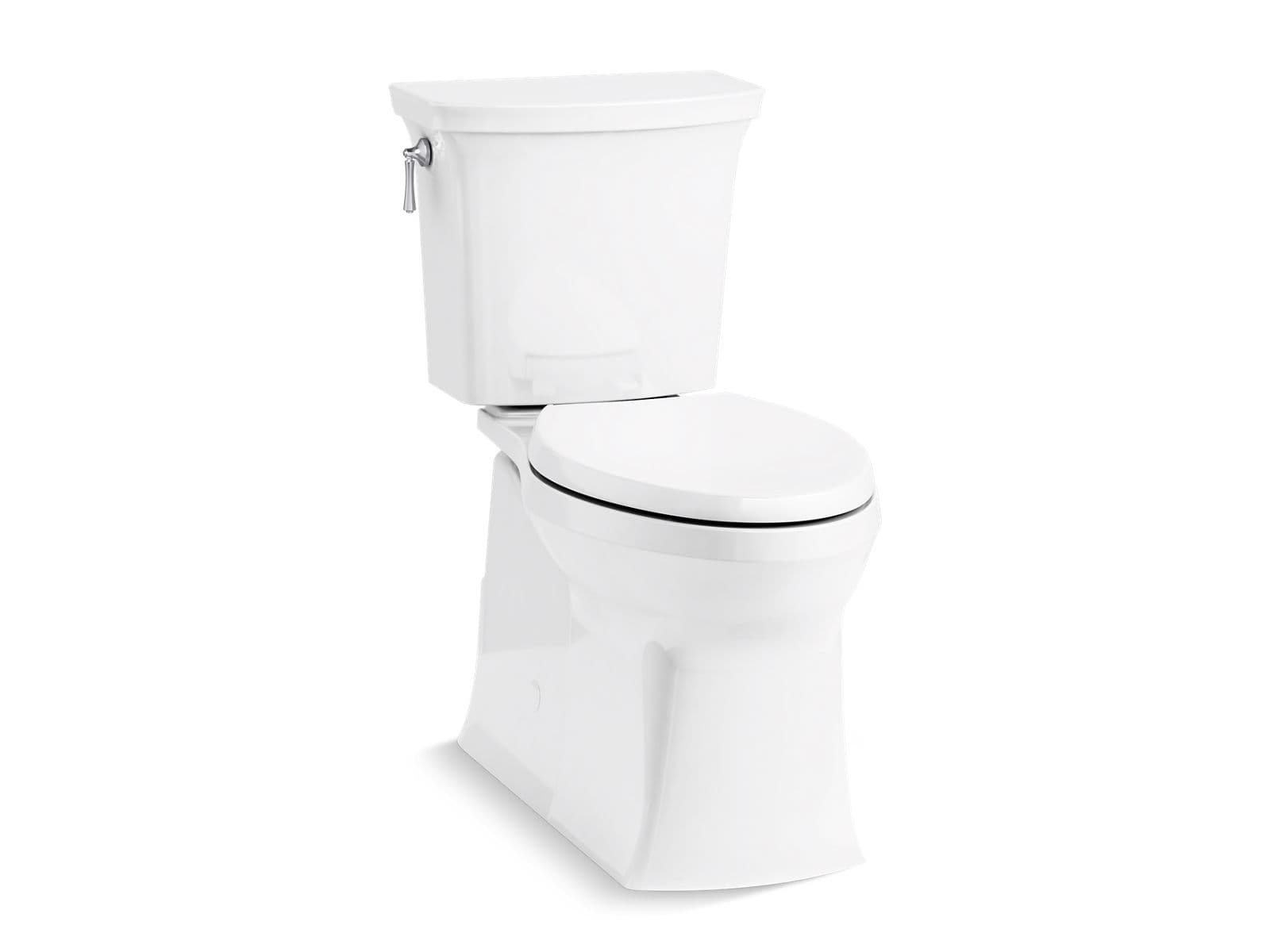

Corbelle® ContinuousClean XT two-piece elongated toilet with skirted trapway, 1.28 gpf
ContinuousClean XT two-piece elongated toilet with skirted trapway, 1.28 gpf
Features
- Two-piece design
- Elongated bowl offers added room and comfort
- Skirted trapway simplifies cleaning
- ContinuousClean system automatically dispenses cleaning solution with every flush
- Works with any white toilet bowl cleaner tablet. Tablets last for more than one year in ContinuousClean system
- Revolution 360® flushing technology generates a forceful swirling motion to keep the bowl clean longer
- AquaPiston® canister optimizes the flow out of the tank, harnessing gravity and the natural, powerful reducing cascade of water to increase the power and effectiveness of the flush
- 1.28 gpf (4.8 lpf)
- 2-1/8" (54 mm) glazed trapway
- Patented ReadyLock® installation system, a simple solution for skirted toilets, saves time, hassle, and eliminates the need to drill into the floor for standard 12" (305 mm) rough-in
- CleanCoat™ surface treatment inhibits the growth of water scale and mineral stains for improved ease of cleaning
- Combination consists of toilet bowl and tank
- Left-hand Polished Chrome trip lever
- Adjustment dial lets you set how much cleaning solution is dispensed with every flush
- Optional: uses two AAA batteries (included) to power the LED system indicator light
- Eligible for consumer rebates in some municipalities
- Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
Specifications
Product Specifications
| ADA | Yes |
|---|---|
| CEC | Yes |
| GTIN | 00885612704580 |
| Finish | White |
| Trapway | Skirted |
| CALGreen | Yes |
| Shipping | L:0"x W:0"x H:0" 0.2 lbs. |
| Glb Path | /api/models/kohler/5709-0.glb |
| Collection | Corbelle |
| Flush Rate | 1.28 gal/flush |
| Watersense | Yes |
| Vntana Uuid | 702b6fc6-fe6f-4aa9-ab0a-afdc97d67abd |
| Product Type | Two Piece Toilet |
| Csa Compliant | Yes |
| Product Style | Transitional |
| Asme Standards | ASME A112.19.2/CSA B45.1 |
| Introduction Date | 6/7/2018 |
| Online Product ID | 4796252 |
Dimensions
| Width | 16.42" |
|---|---|
| Height | 31.31" |
| Length | 28.87" |
| Weight | 40 lbs. |
| Ship Width | 1.0000 |
| Ship Height | 1.0000 |
| Ship Length | 1.0000 |
Materials
| Material | Vitreous China |
|---|
PROP 65California Proposition 65 warning. See product packaging for details.
Manuals & Downloads
Installation Guides
Specification Sheets
CAD Drawings
Replacement Parts
Genuine Kohler replacement parts compatible with Item #5709-0.
| Product | Item # | Price | ||
|---|---|---|---|---|
 | Battery Pack Assembly. | K-1307868 | $60.05 | |
 | Bushing, Spherical | K-1213082 | $3.62 | |
 | Canister Repair Kit | K-GP1229656 | $10.70 | |
 | FLUSH VALVE KIT | K-1309116 | $21.13 | |
 | GASKET KIT | K-1070291 | $2.17 | |
 | Kohler Genuine Parts B5-1271 - Locknut Assy.shank - TWO Piece | K-1057941 | $2.28 | |
 | Kohler Genuine Parts B5-1816 - NUT, 2-11.5NPSM | K-50751 | $3.62 | |
 | Kohler Genuine Parts BOLT CAP KIT - White White | K-1225543-0 | $4.30 | |
 | Kohler Genuine Parts CAM Assembly KIT, Angled BASE | K-1267750 | $58.55 | |
 | Kohler Genuine Parts Corbelle Cowling ASSY | K-1322938 | $110.04 | |
 | Kohler Genuine Parts Cover, Tank, Close Coupled - White White | K-1306245-0 | $27.95 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 375A STD Refill | K-1468017 | $18.02 | |
 | Kohler Genuine Parts FILL Valve Service KIT, 400A Series | K-GP1138930 | $20.55 | |
 | Kohler Genuine Parts Grommet Service KIT | K-1324795 | $8.17 | |
 | Kohler Genuine Parts Screw, HEX HEAD TAP | K-1232059 | $2.39 | |
 | Kohler Genuine Parts Service CAP Assembly | K-1057940 | $7.01 | |
 | Kohler Genuine Parts TRIP Lever Assembly - Polished Chrome | K-1292297-CP | $20.60 | |
 | Kohler Genuine Parts TRIP Lever Assembly, RH - Polished Chrome | K-1292860-CP | $51.95 | |
 | Kohler Genuine Parts Trapway Service KIT, Plastic | K-1265858 | $72.79 | |
 | Lid Assembly. | K-1303456 | $27.52 | |
 | Refill Tube | K-1248135 | $2.28 | |
 | Retainer Nut | K-78132 | $2.28 | |
 | Seal Diaphragm | K-83143 | $5.73 | |
 | Seal for All Single Flush Class 5 and Class 6 Canister Toilets | K-GP1059291 | $7.90 | |
 | Washer, Rubber | K-1101470 | $2.84 | |
 | Washer, Shank | K-85307 | $2.40 | |
| — | — | 1112256 | — | |
| — | — | 52265 | — | |
